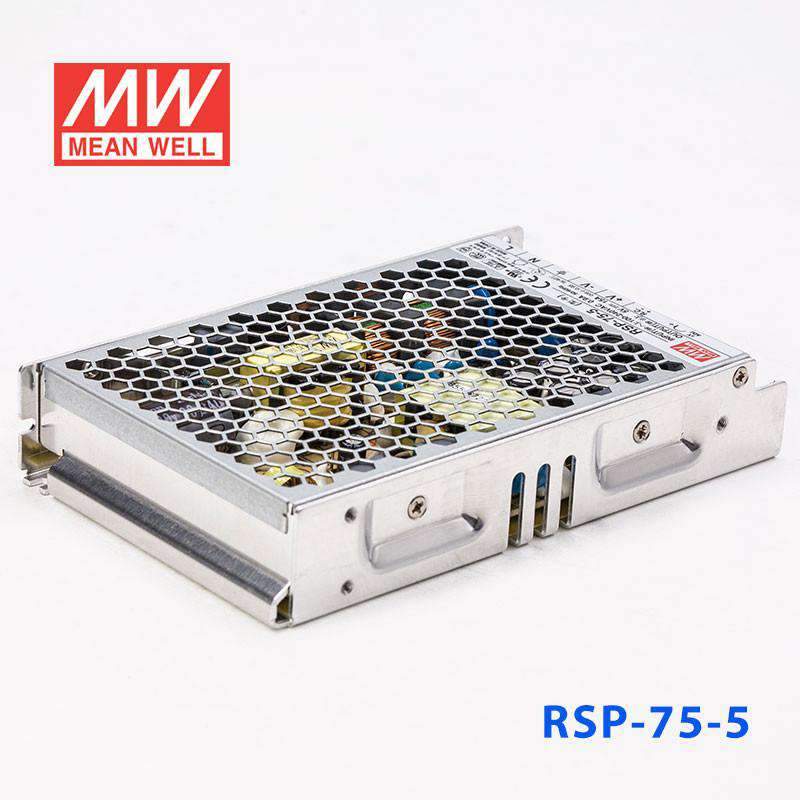

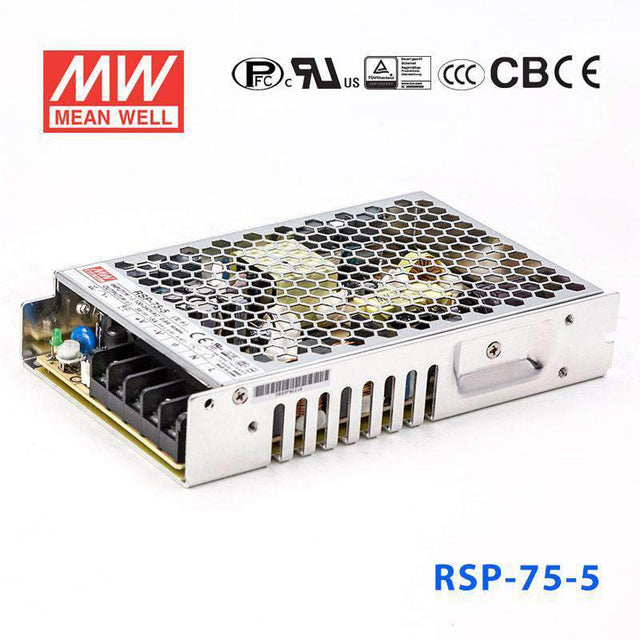

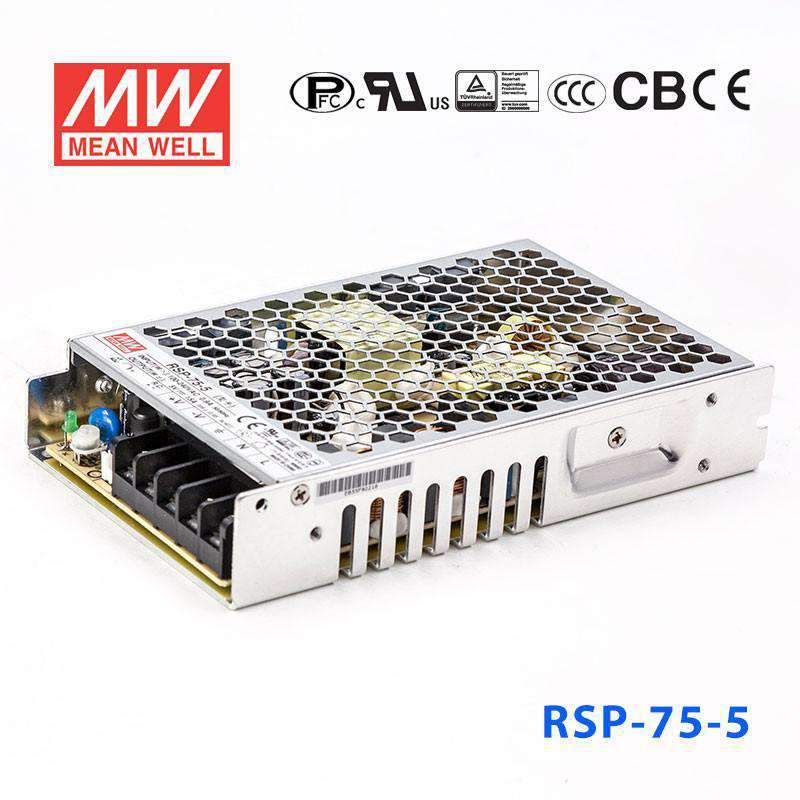

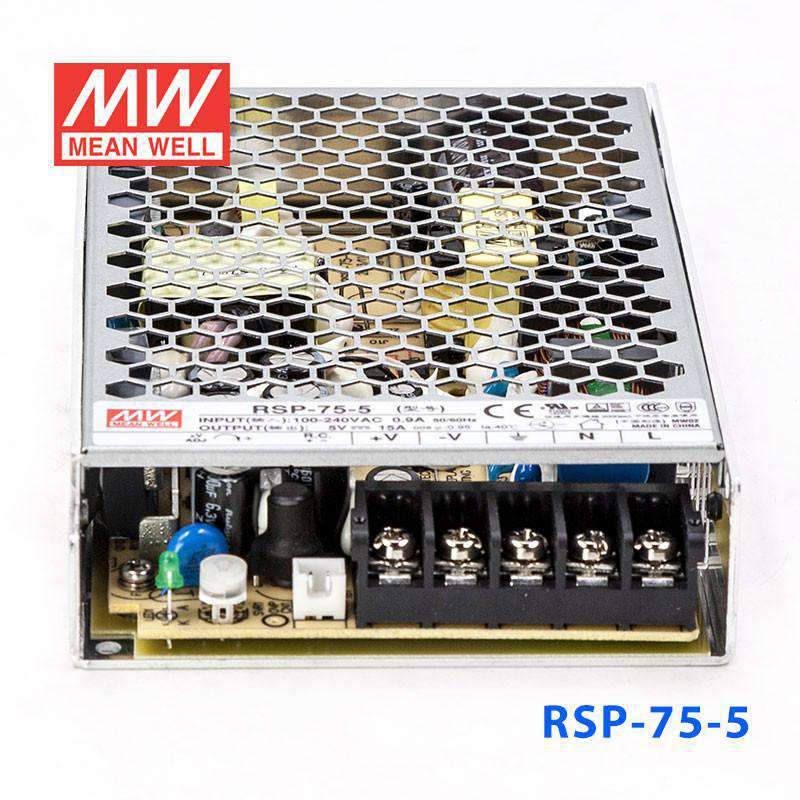

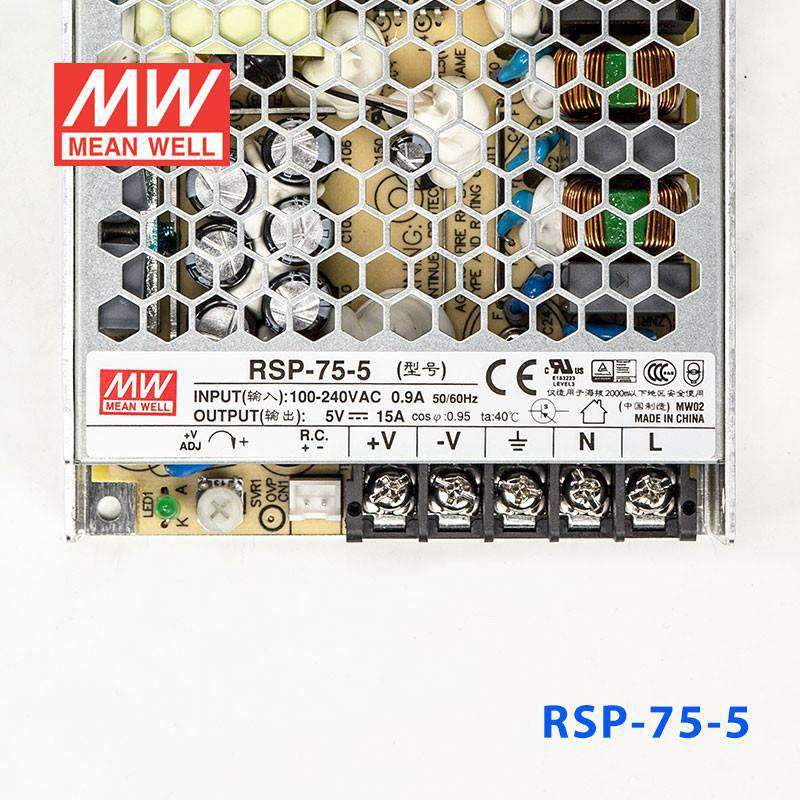

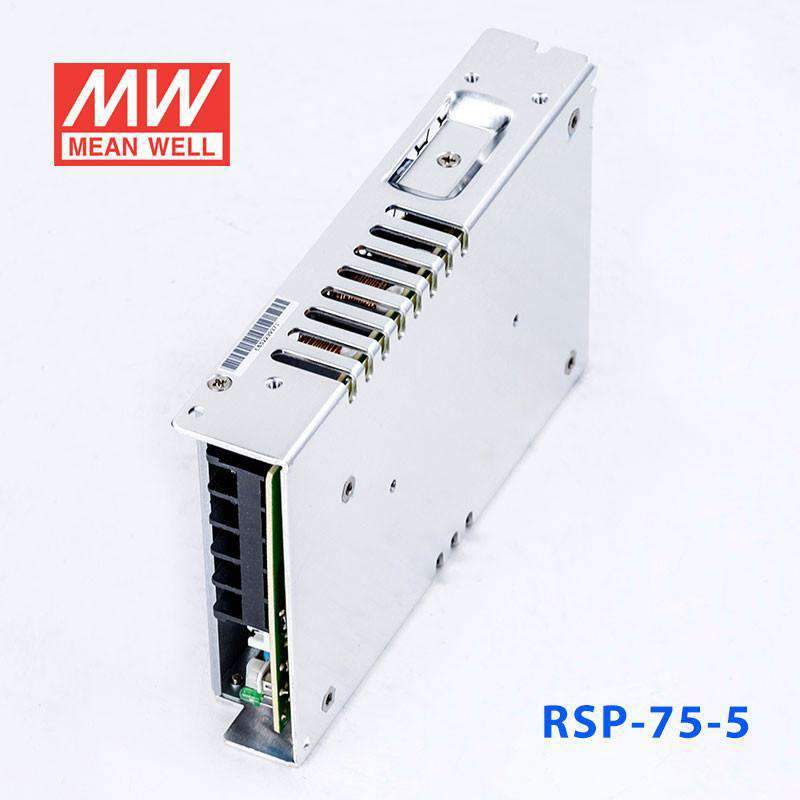

Mean Well RSP-75-5 Power Supply 75W 5V 15A
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating75 Watt
-
Output Voltage5 Volt
-
Rated Current15 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.97 lb
::specification::
Frequently Asked Questions
What equipment can the RSP-75-5 power at 5V?
The RSP-75-5 delivers 75W at 5V and 15A, suitable for small embedded computing modules, industrial HMI units, and auxiliary 5V rails in compact automation panels. Its 159.0 × 97.0 × 30.0 mm form factor minimizes panel space consumption.
What is the operating temperature range of the RSP-75-5?
The RSP-75-5 operates from -25°C to +70°C ambient. It carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and is designed for indoor enclosed use.
How does the RSP-75-5 compare to the RSP-75-3.3 and RSP-75-7.5?
All three share the 159.0 × 97.0 × 30.0 mm chassis and 85-264VAC input. The RSP-75-3.3 provides 49.5W at 15A, the RSP-75-5 provides 75W at 15A, and the RSP-75-7.5 provides 75W at 10A. The RSP-75-5 and RSP-75-7.5 share the same 75W rating but at different voltages and currents.
Does the RSP-75-5 include active PFC?
Yes. The RSP-75-5 includes built-in active PFC and accepts 85-264VAC. It weighs 0.44 kg and carries a 3-year warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RSP-75 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-75-7.5 Power Supply 75W 7.5V 10A | 75W | 7.5V | 10A | Indoor | $36.64 | View |
| Mean Well RSP-75-48 Power Supply 75W 48V 1.6A | 76.8W | 48V | 1.6A | Indoor | $32.90 | View |
| Mean Well RSP-75-3.3 Power Supply 49.5W 3.3V 15A | 49.5W | 3.3V | 15A | Indoor | $36.79 | View |
| Mean Well RSP-75-27 Power Supply 75W 27V 2.8A | 75.6W | 27V | 2.8A | Indoor | $30.29 | View |
| Mean Well RSP-75-24 Power Supply 75W 24V 3.2A | 76.8W | 24V | 3.2A | Indoor | $36.65 | View |
| Mean Well RSP-75-15 Power Supply 75W 15V 5A | 75W | 15V | 5A | Indoor | $32.30 | View |
| Mean Well RSP-75-13.5 Power Supply 75W 13.5V 5.6A | 75.6W | 13.5V | 5.6A | Indoor | $36.79 | View |
| Mean Well RSP-75-12 Power Supply 75W 12V 6.3A | 75.6W | 12V | 6.3A | Indoor | $36.80 | View |
