What is the RSP-750-48 used for in 48V infrastructure?

The RSP-750-48 supplies 753.6W at 48V and 15.7A, matching the 48V DC bus standard for telecom central offices, data center power shelves, and PoE infrastructure. Its 250.0 × 127.0 × 41.0 mm 1U form factor supports direct rack integration.

What is the ambient operating range of the RSP-750-48?

The RSP-750-48 operates from -30°C to +70°C. It is designed for indoor enclosed use and carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications. A 5-year warranty is included.

How does the RSP-750-48 compare to the RSP-500-48 and RSP-2000-48 at 48V?

The RSP-500-48 delivers 504W at 10.5A in a 230.0 × 127.0 × 40.5 mm chassis. The RSP-750-48 increases to 753.6W at 15.7A in a 250.0 × 127.0 × 41.0 mm chassis. The RSP-2000-48 steps up to 2016W at 42A in a larger 295.0 × 127.0 × 41.0 mm chassis. Current and power increase with each tier.

Does the RSP-750-48 offer optional conformal coating?

Yes. The RSP-750-48 is optionally available with conformal coating. It achieves up to 92% efficiency, includes built-in active PFC, and weighs 1.64 kg.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

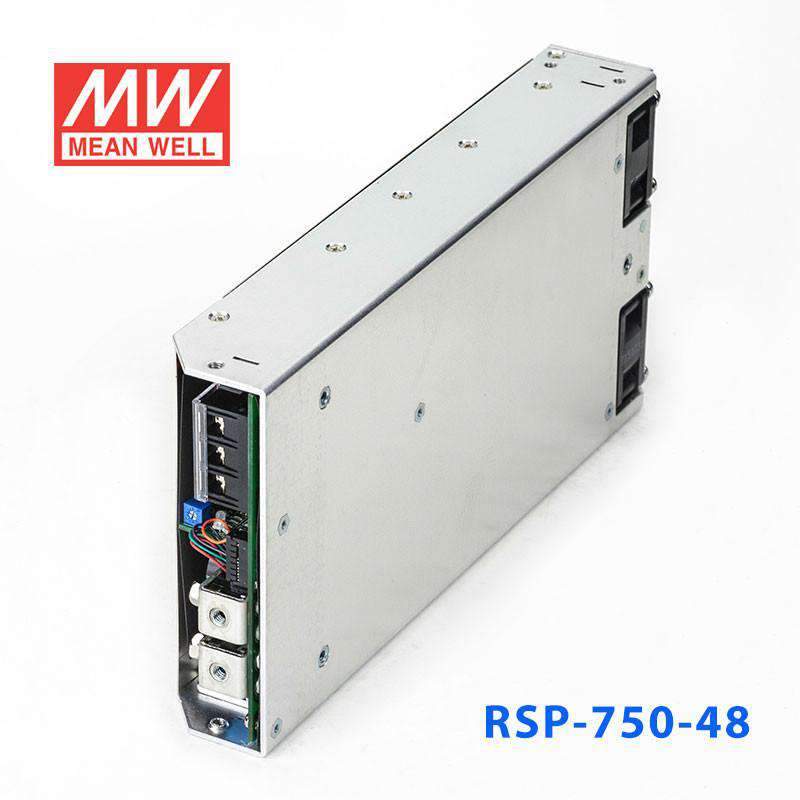

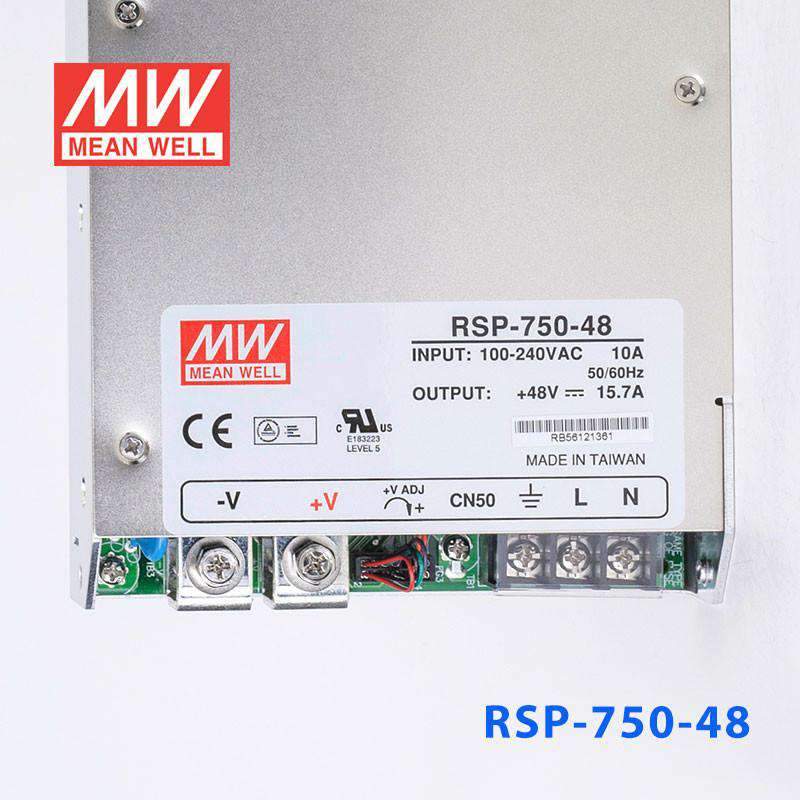

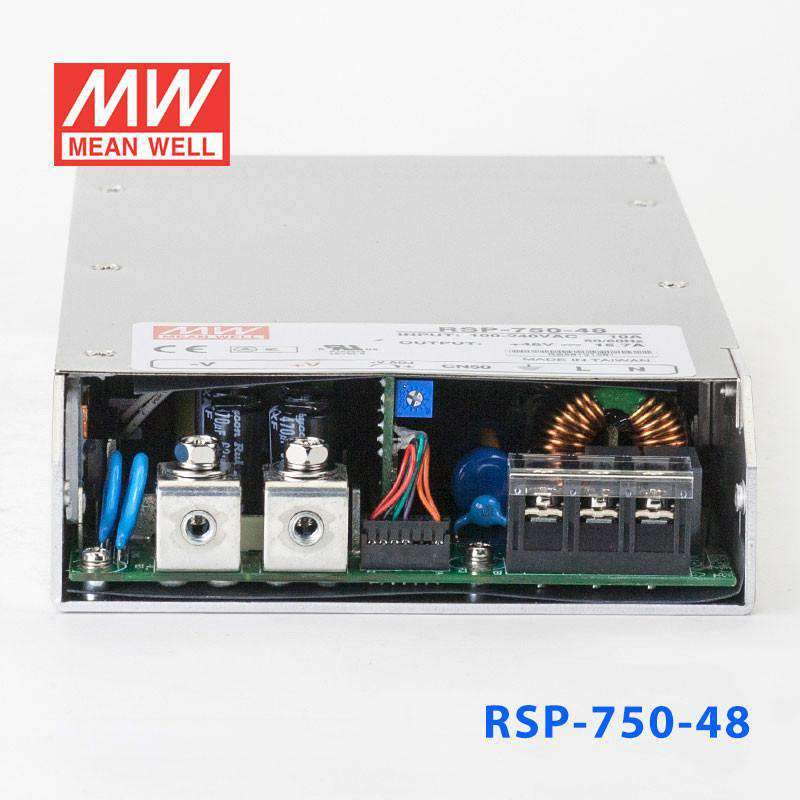

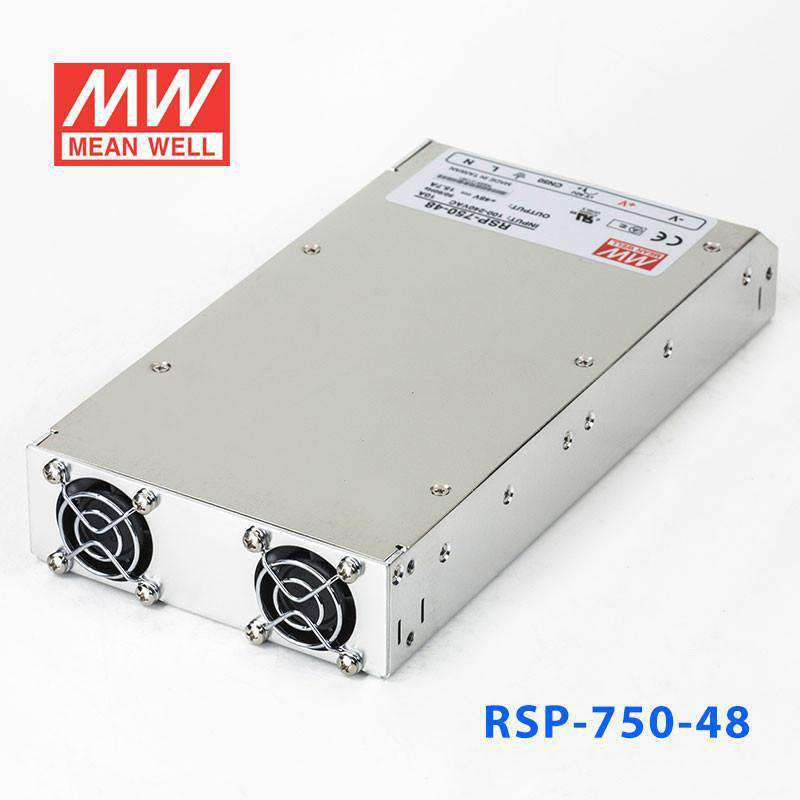

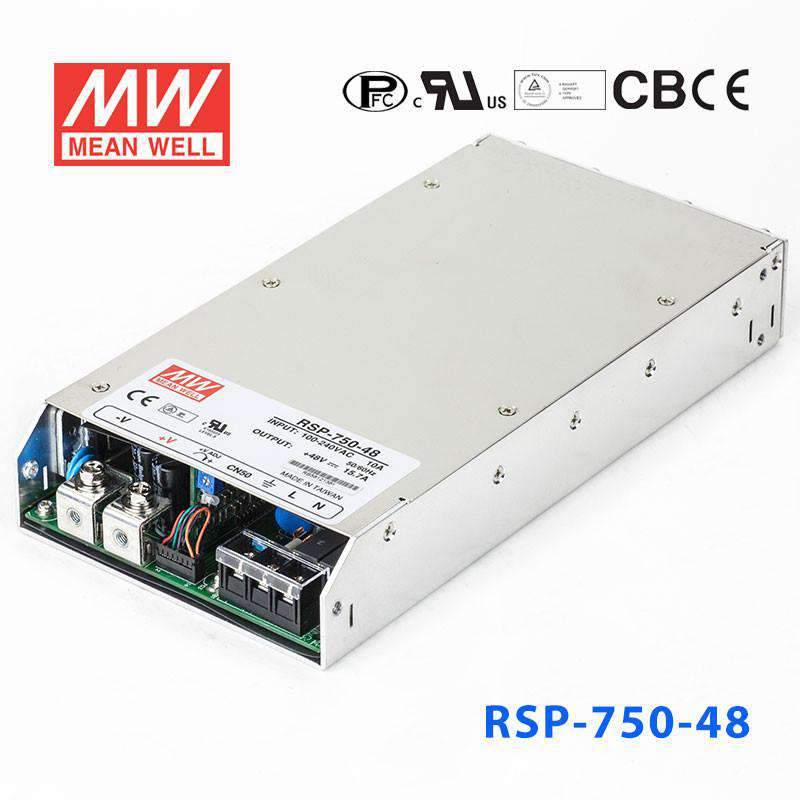

Mean Well RSP-750-48 Power Supply 750W 48V 15.7A

Name: Mean Well RSP-750-48 Power Supply 750W 48V 15.7A
Brand: Mean Well
SKU: RSP-750-48
Price: 197.95 USD
Availability: InStock

built-in active PFChigh efficiency up to 92%optional conformal coating

SKU:

RSP-750-48

$197.95 USD ~~$209.84~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024

Key Features

✓Universal AC input / Full range
✓Built-in active PFC function
✓Built-in constant current limiting circuit
✓Protections:Short circuit/ Overload / Over voltage
✓Cooling by free air convection
✓1U low profile 30mm
✓Remote ON-OFF control
✓LED indicator for power on
✓100% full load burn-in test
✓3 years warranty

Brand

Mean Well
Series

RSP Series
Power Rating

753.6 Watt
Output Voltage

48 Volt
Rated Current

15.7 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

9.84 in
Width

5 in
Height

1.61 in
Weight

3.62 lb
