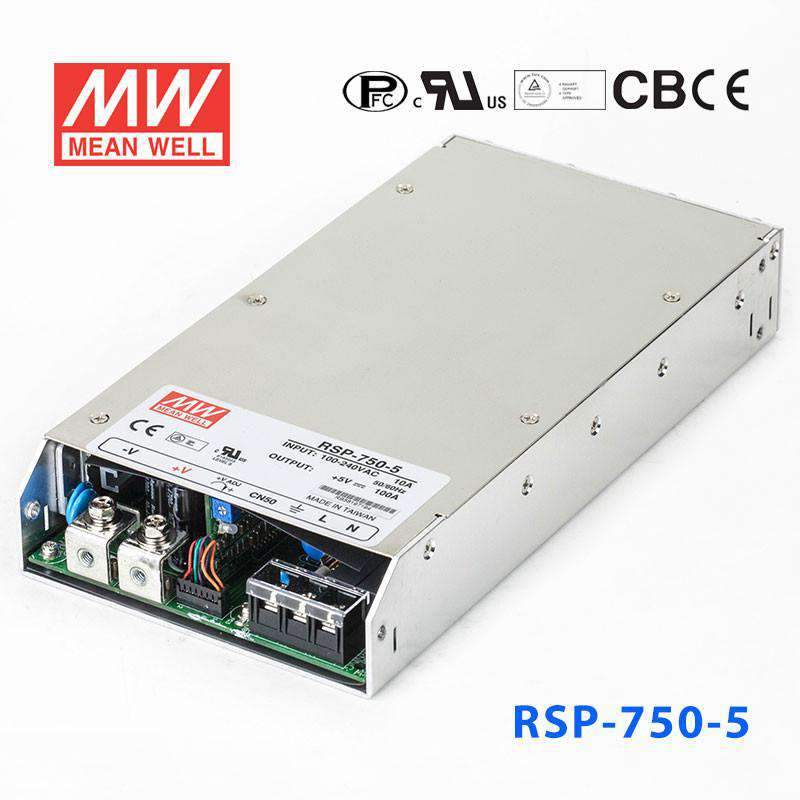

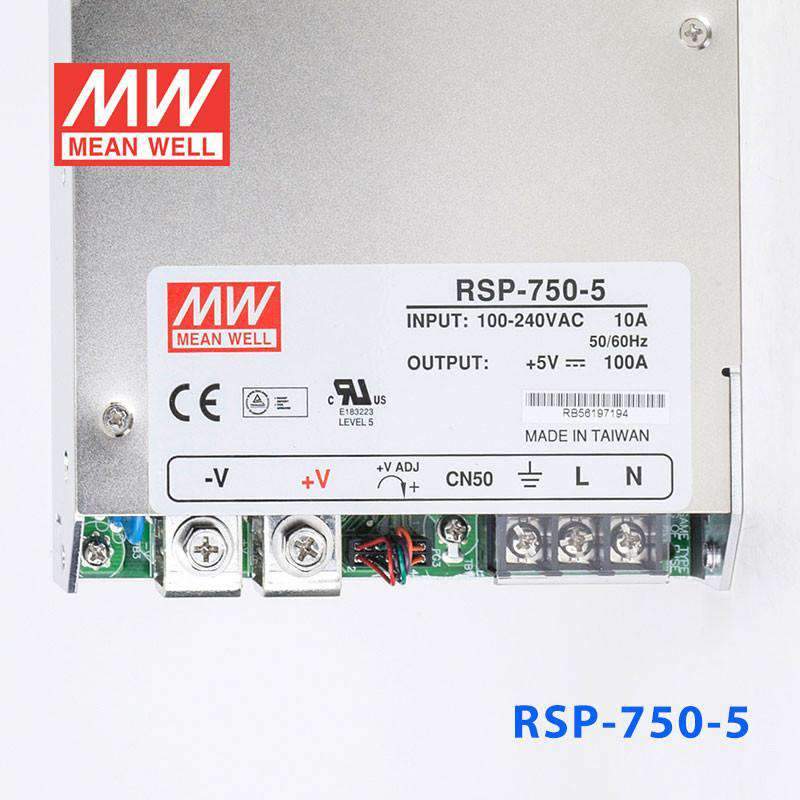

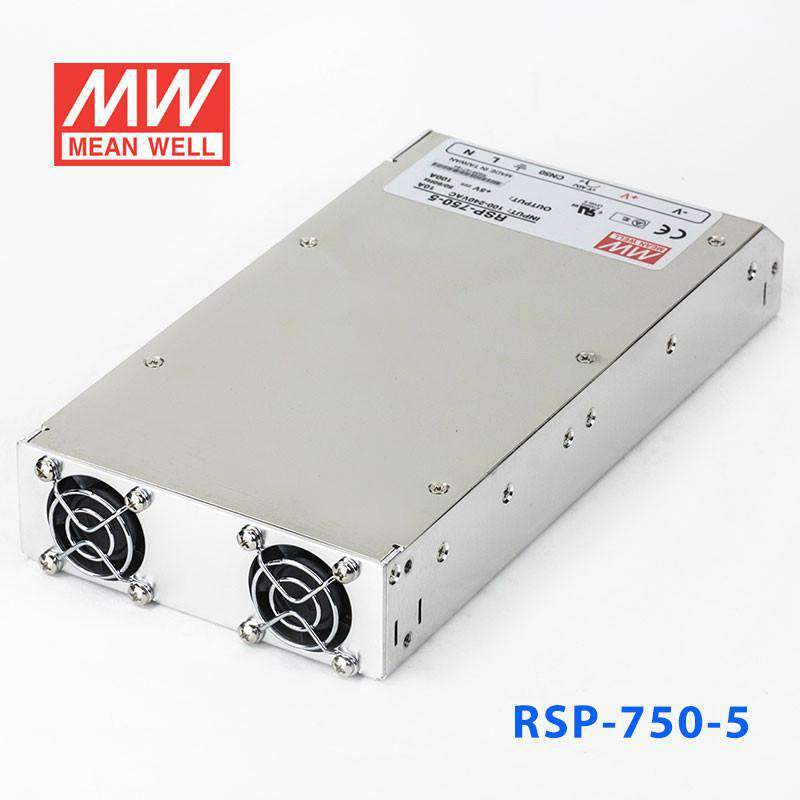

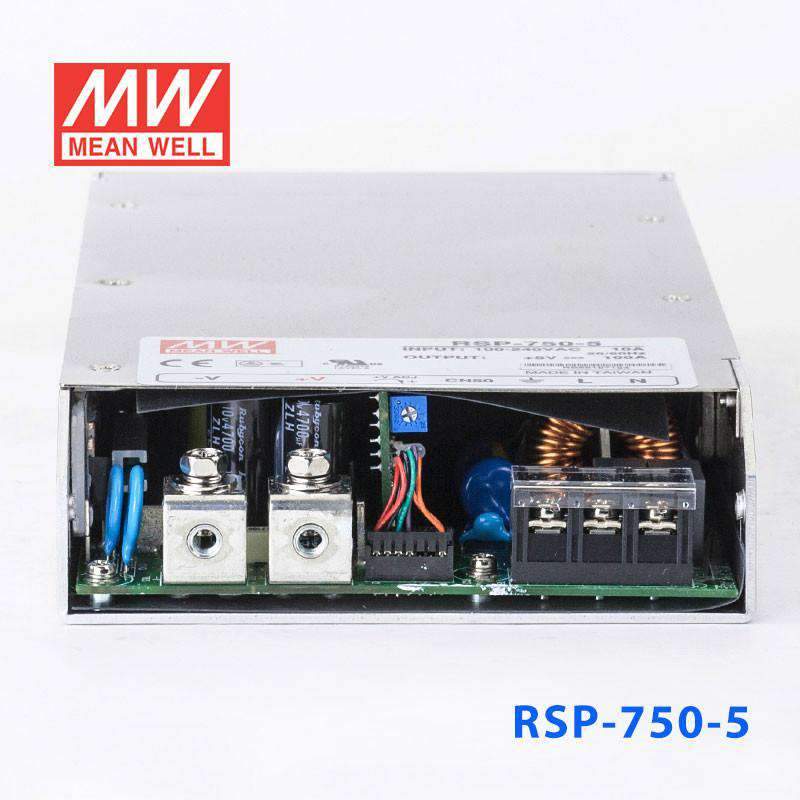

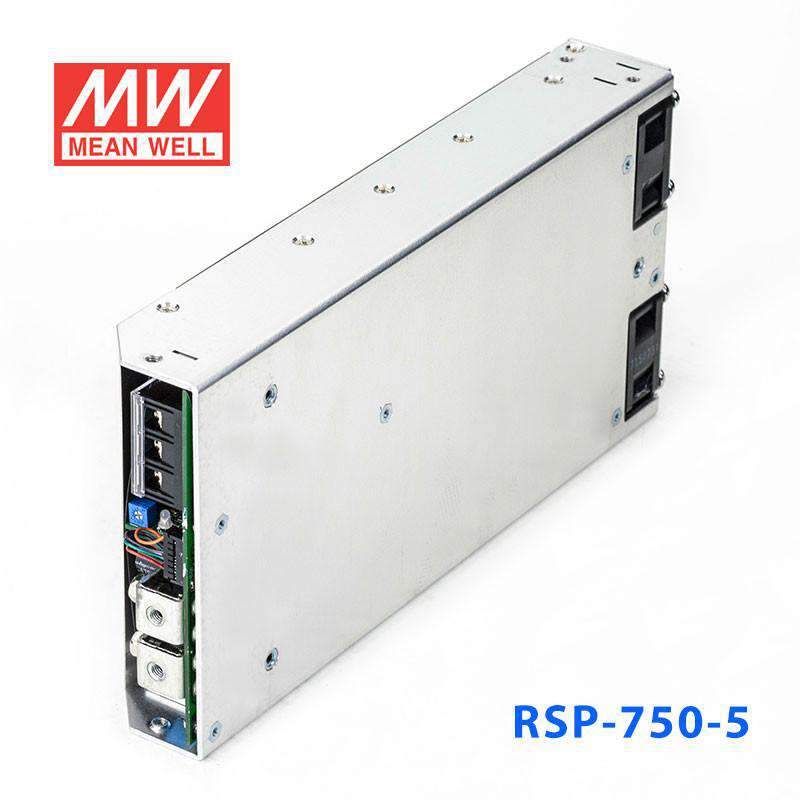

Mean Well RSP-750-5 Power Supply 500W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-750-5 Power Supply 500W 5V
Description
Description
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating500 Watt
-
Output Voltage5 Volt
-
Rated Current100 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length9.84 in
-
Width5 in
-
Height1.61 in
-
Weight3.62 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What high-current 5V applications can the RSP-750-5 support?
The RSP-750-5 provides 500W at 5V with 100A output, appropriate for powering large-scale embedded computing platforms, legacy 5V TTL bus systems requiring high current, and industrial test equipment with significant 5V power demands. Its 250.0 × 127.0 × 41.0 mm 1U chassis supports standard rack mounting.
What is the operating temperature range of the RSP-750-5?
The RSP-750-5 operates from -30°C to +70°C ambient. It carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and is designed for indoor enclosed use. A 5-year warranty is included.
How does the RSP-750-5 compare to the RSP-500-5 and RSP-750-12 at different voltages?
The RSP-500-5 delivers 450W at 90A in a 230.0 × 127.0 × 40.5 mm chassis. The RSP-750-5 provides 500W at 100A in a 250.0 × 127.0 × 41.0 mm chassis — a higher power and higher current option in a slightly larger footprint. The RSP-750-12 provides 750W at 62.5A, delivering more total power at lower current.
What is the actual rated power of the RSP-750-5?
The RSP-750-5 is rated at 500W (5V × 100A). Despite the RSP-750 series name, the low output voltage constrains total output power. It includes built-in active PFC, optional conformal coating, and weighs 1.64 kg.
