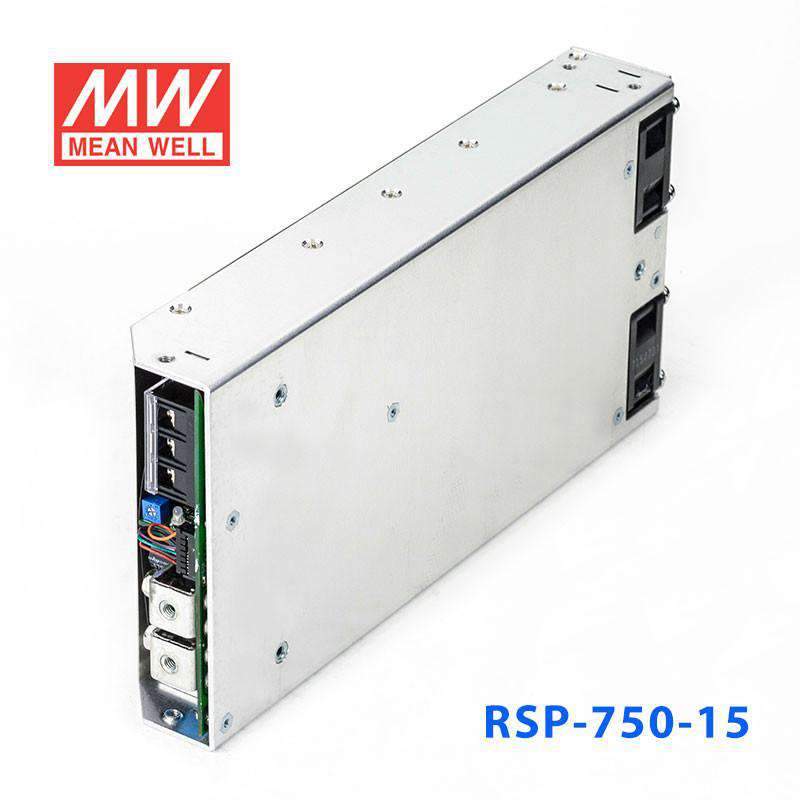

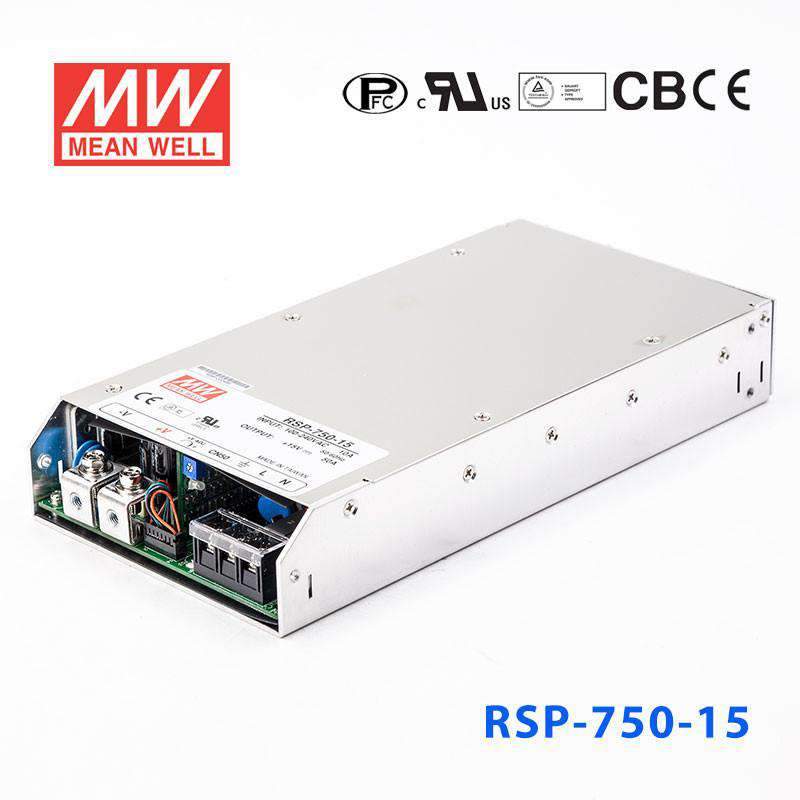

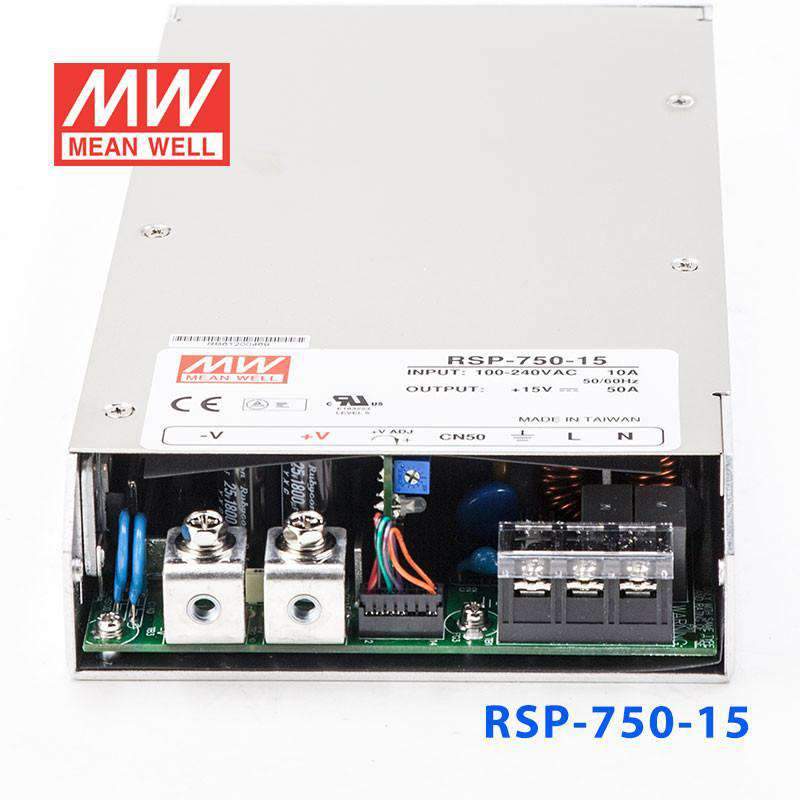

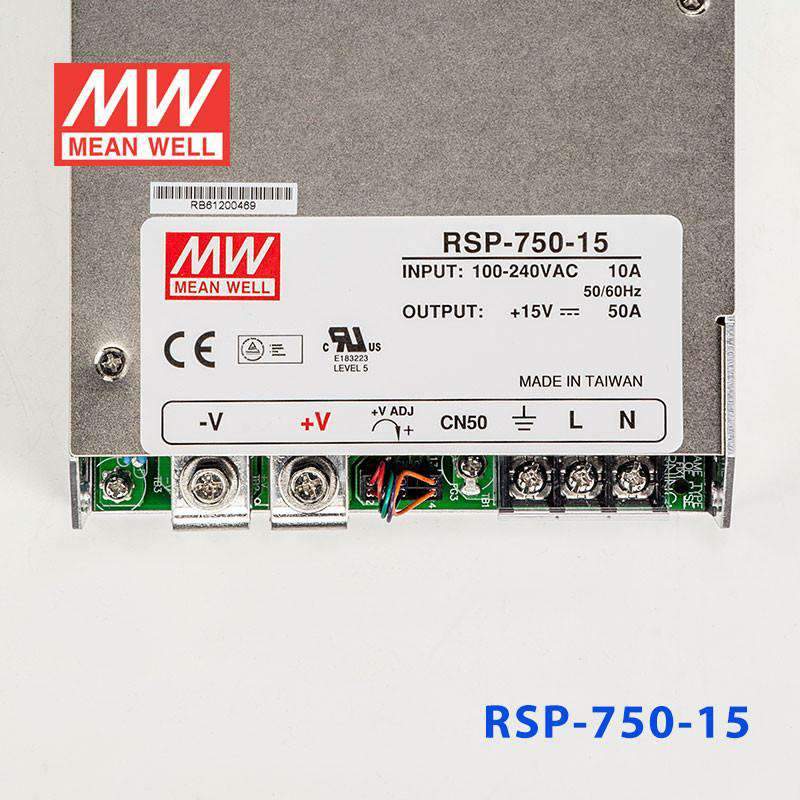

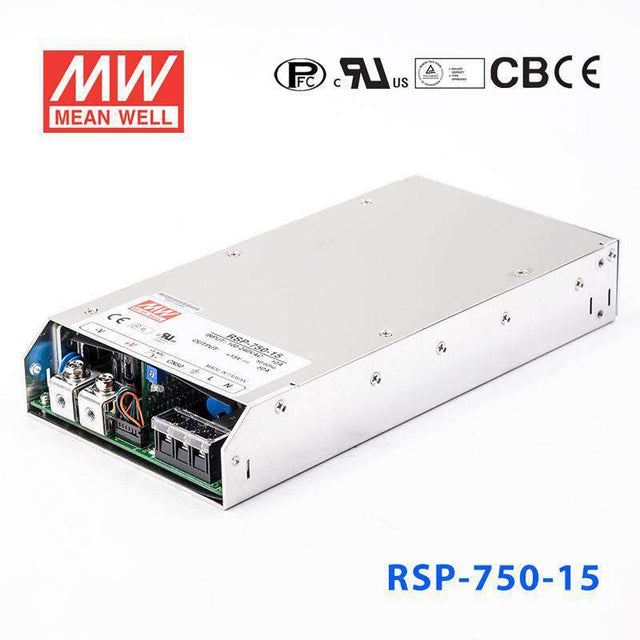

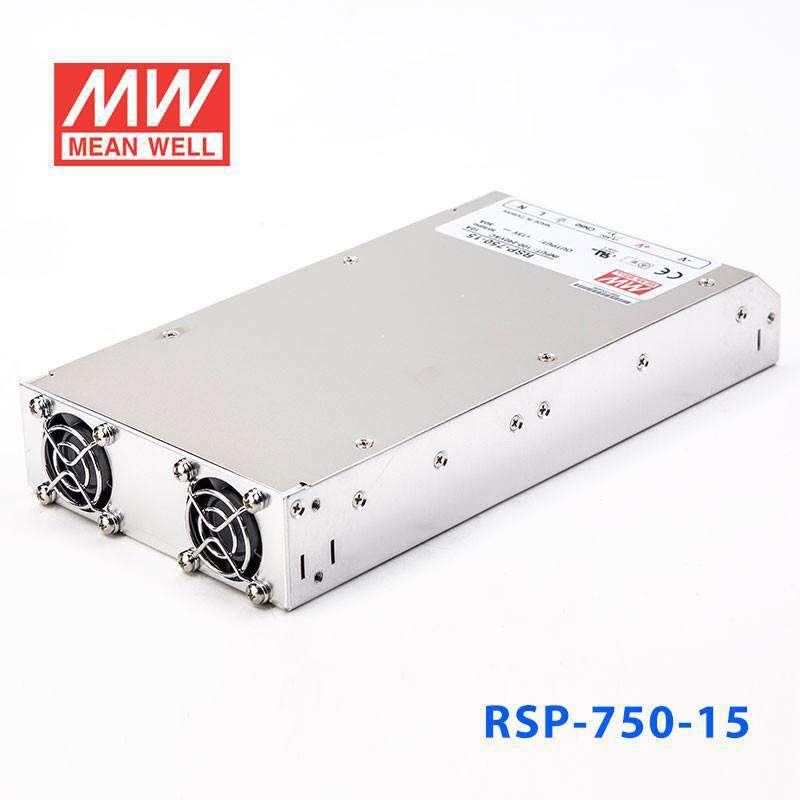

Mean Well RSP-750-15 Power Supply 750W 15V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-750-15 Power Supply 750W 15V
Description
Description
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating750 Watt
-
Output Voltage15 Volt
-
Rated Current50 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length9.84 in
-
Width5 in
-
Height1.61 in
-
Weight3.62 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications benefit from 750W at 15V?
The RSP-750-15 supplies 750W at 15V with 50A output, suitable for servo amplifier auxiliary rails, high-current 15V bus systems in embedded computing, and large-scale sensor network power supplies. Its 250.0 × 127.0 × 41.0 mm 1U form factor supports rack integration.
What is the ambient temperature operating range of the RSP-750-15?
The RSP-750-15 operates from -30°C to +70°C ambient. It is designed for indoor enclosed use and holds BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications. A 5-year warranty is included.
How does the RSP-750-15 compare to the RSP-750-12 and RSP-750-24?
All three RSP-750 units share the 250.0 × 127.0 × 41.0 mm chassis and 90-264VAC input. The RSP-750-12 delivers 750W at 62.5A, the RSP-750-15 delivers 750W at 50A, and the RSP-750-24 delivers 751.2W at 31.3A. Power output is consistent; current decreases as voltage increases.
Is conformal coating available on the RSP-750-15?
Yes. The RSP-750-15 is available with optional conformal coating. It achieves up to 92% efficiency with built-in active PFC and weighs 1.64 kg.
Other RSP-750 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-750-48 Power Supply 750W 48V | 753.6W | 48V | 15.7A | Indoor | $170.51 | View |
| Mean Well RSP-750-24 Power Supply 750W 24V | 751.2W | 24V | 31.3A | Indoor | $149.99 | View |
| Mean Well RSP-750-5 Power Supply 500W 5V | 500W | 5V | 100A | Indoor | $184.95 | View |
| Mean Well RSP-750-27 Power Supply 750W 27V | 750.6W | 27V | 27.8A | Indoor | $170.04 | View |
| Mean Well RSP-750-12 Power Supply 750W 12V | 750W | 12V | 62.5A | Indoor | $195.73 | View |
