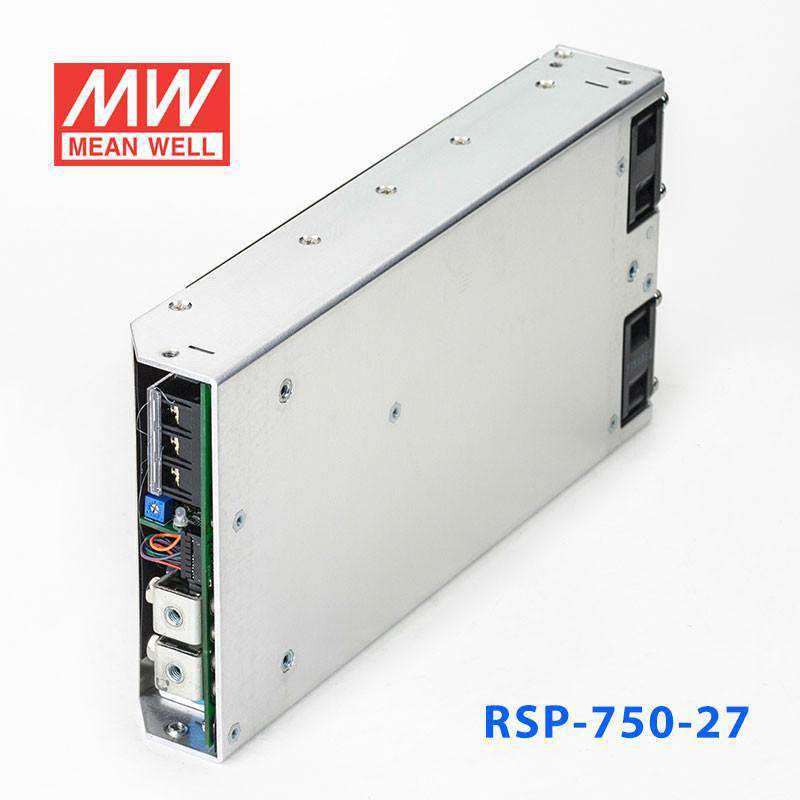

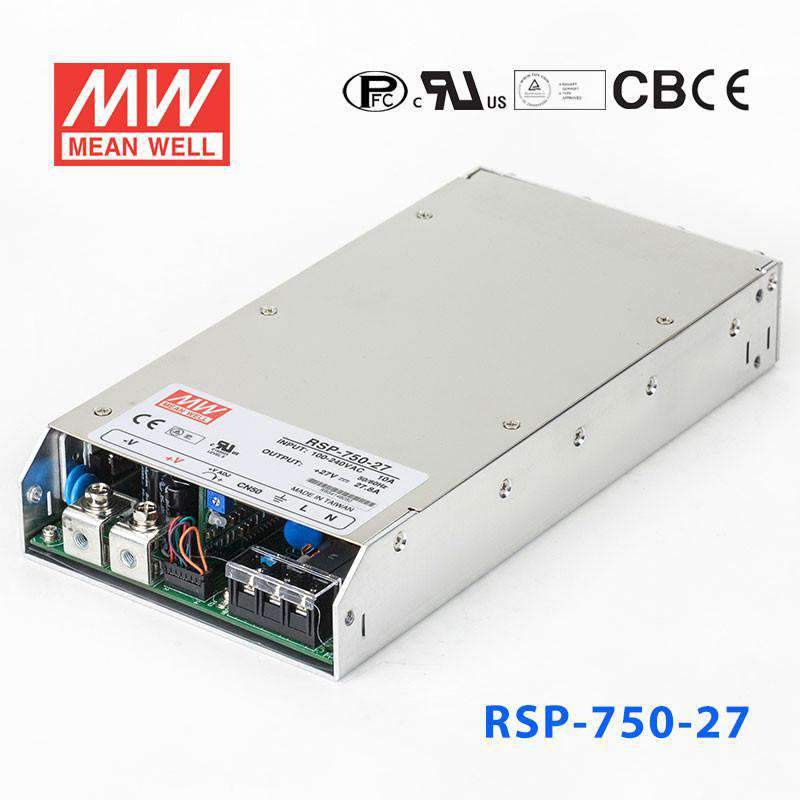

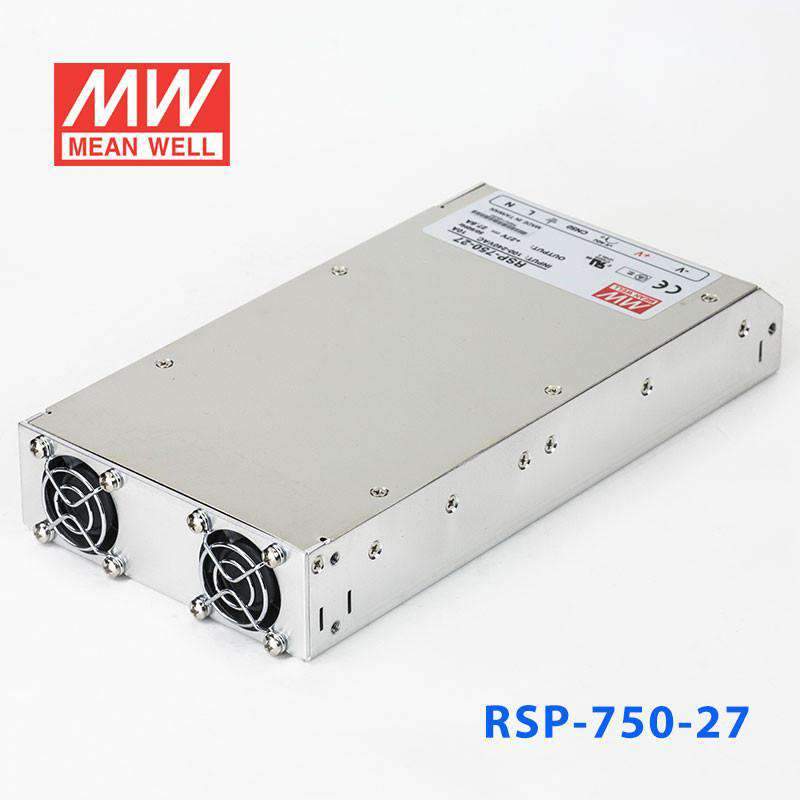

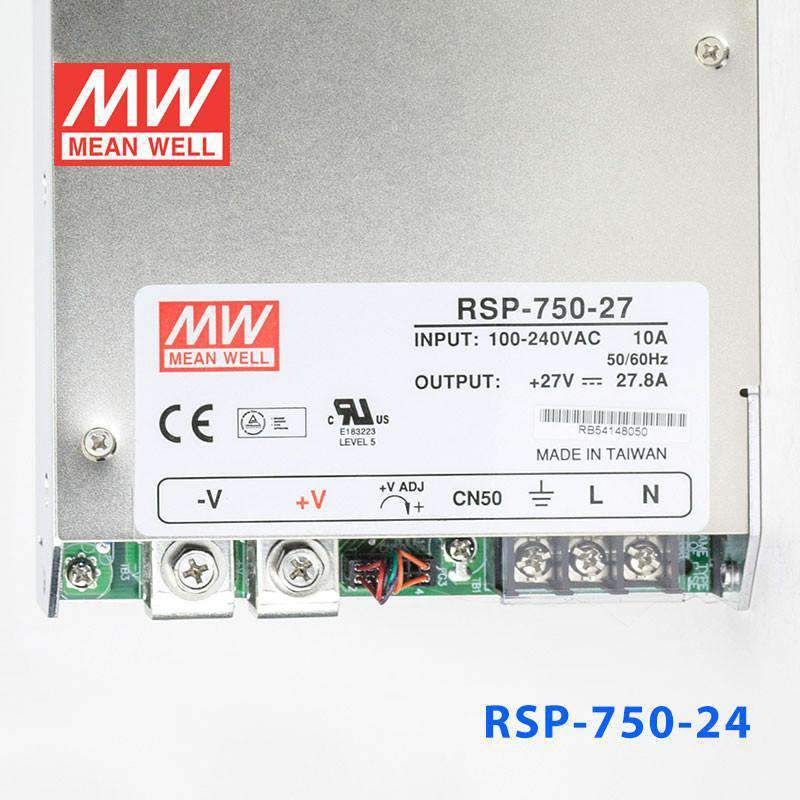

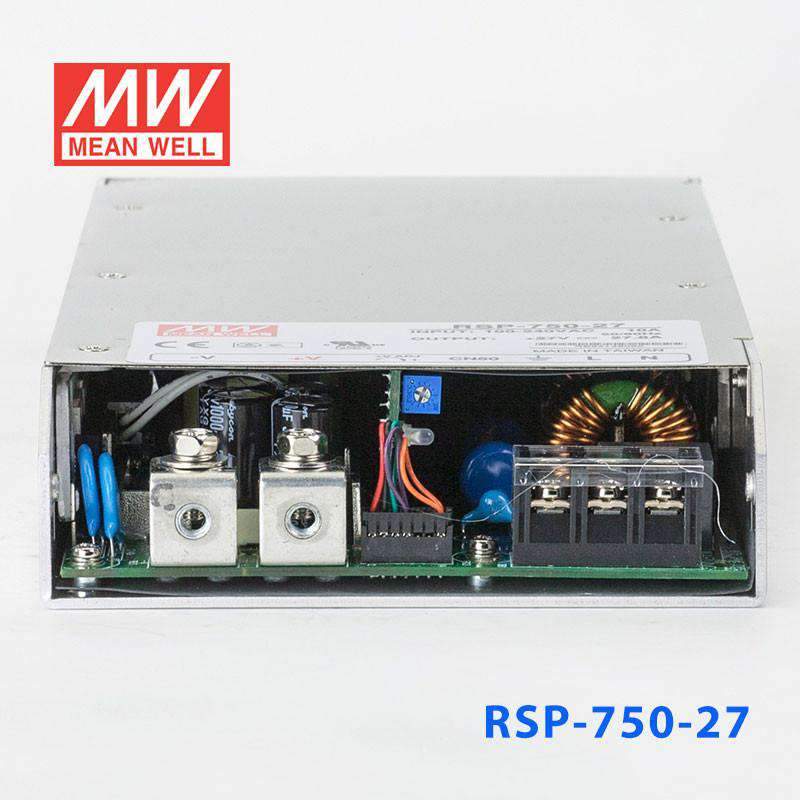

Mean Well RSP-750-27 Power Supply 750W 27V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSP-750-27 Power Supply 750W 27V
Description
Description
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating750.6 Watt
-
Output Voltage27 Volt
-
Rated Current27.8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length9.84 in
-
Width5 in
-
Height1.61 in
-
Weight3.62 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What equipment uses 27V DC that the RSP-750-27 can power at high wattage?
The RSP-750-27 provides 750.6W at 27V and 27.8A, suitable for driving medium-power brushless DC motor controllers, 24-28V nominal industrial bus equipment, and specialized motion control systems at higher wattage than 320W or 500W class units. Its 1U form factor (250.0 × 127.0 × 41.0 mm) fits standard rack mounts.
What is the cold-temperature limit of the RSP-750-27?
The RSP-750-27 operates down to -30°C, with an upper limit of +70°C. It is certified to BSMI, CB, CCC, CE, EAC, TÜV, and UL and is rated for indoor enclosed use.
How does the RSP-750-27 compare to the RSP-750-24 and RSP-750-48?
All three share the 250.0 × 127.0 × 41.0 mm chassis and 90-264VAC input. The RSP-750-24 provides 751.2W at 31.3A, the RSP-750-27 provides 750.6W at 27.8A, and the RSP-750-48 provides 753.6W at 15.7A. Power is consistent; current decreases as output voltage increases.
Is optional conformal coating available for the RSP-750-27?
Yes. The RSP-750-27 is available with optional conformal coating for additional humidity protection. It achieves up to 92% efficiency with built-in active PFC and includes a 5-year warranty.
Other RSP-750 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-750-48 Power Supply 750W 48V | 753.6W | 48V | 15.7A | Indoor | $170.51 | View |
| Mean Well RSP-750-24 Power Supply 750W 24V | 751.2W | 24V | 31.3A | Indoor | $149.99 | View |
| Mean Well RSP-750-5 Power Supply 500W 5V | 500W | 5V | 100A | Indoor | $184.95 | View |
| Mean Well RSP-750-15 Power Supply 750W 15V | 750W | 15V | 50A | Indoor | $193.72 | View |
| Mean Well RSP-750-12 Power Supply 750W 12V | 750W | 12V | 62.5A | Indoor | $195.73 | View |
