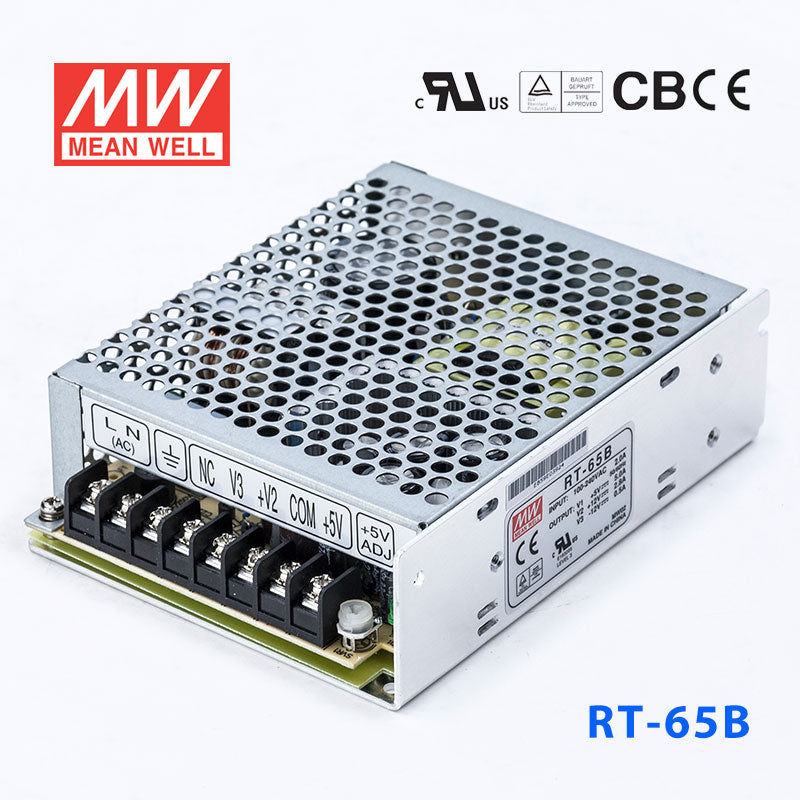

Mean Well RT-65B Power Supply 65W 5V 12V -12V 5A
The RT is a 125W Mean Well power converter (input range: 88~132VAC).
Key Features
- ✓ Input voltage range: 88~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRT Series
-
Power Rating64.6 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage88V~264V
-
No of Output3
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length5.08 in
-
Width3.86 in
-
Height1.5 in
-
Weight0.97 lb
::specification::
Frequently Asked Questions
Can I use the RT-65B in an industrial control panel that needs 5V logic and plus/minus 12V analog rails?
Yes. The RT-65B is a triple-output constant-voltage power supply with 5V, 12V, and -12V outputs and 64.6W total power. That makes it a fit for industrial or automation equipment that combines a 5V control rail with plus/minus 12V circuitry in one compact supply.
Is the RT-65B suitable for embedded test equipment with mixed-voltage boards?
It can be a good fit for embedded or lab-style equipment that uses a 5V rail alongside 12V and -12V rails. The unit provides 5A on the 5V output and 64.6W total output power, which suits lower-power mixed-signal assemblies rather than larger loads.
Can the RT-65B be used for automation systems that combine digital control and analog signal conditioning?
Yes, if the system needs constant-voltage outputs at 5V, 12V, and -12V. Its triple-output design is appropriate for automation hardware that uses 5V digital control with bipolar analog sections, and the supply is rated for 64.6W total.
Will the RT-65B fit space-constrained equipment housings?
It is designed as a miniature-size supply and measures 129.0 × 98.0 × 38.0 mm. That footprint can help in compact industrial or embedded assemblies where multiple voltage rails are needed without moving to a larger chassis supply.
Can the RT-65B operate in hot control cabinets or vibration-prone machinery?
The rated operating temperature is -25°C to +70°C, and the listed features include 70°C operation and 5G vibration resistance. Those specs support use in demanding indoor industrial environments where heat and equipment vibration are concerns.
How does the RT-65B compare with nearby RT series models?
Within the listed RT family, RT-50A is 46.5W at 5V 4A, RT-50B is 50W at 5V 4A, RT-50C is 50W at 5V 4A, RT-50D is 51W at 5V 3A, RT-65A is 66.1W at 5V 6A, RT-65B is 64.6W at 5V 5A, RT-65C is 65.5W at 5V 5A, RT-65D is 68W at 5V 4A, RT-125A is 131W at 5V 12A, RT-125B is 132W at 5V 12A, RT-125C is 132.5W at 5V 10A, and RT-125D is 136W at 5V 8A. The RT-85A, RT-85B, RT-85C, RT-85D, RT-125NA, RT-125NB, and RT-125ND are listed as siblings, but their wattage and current details are not provided here.
