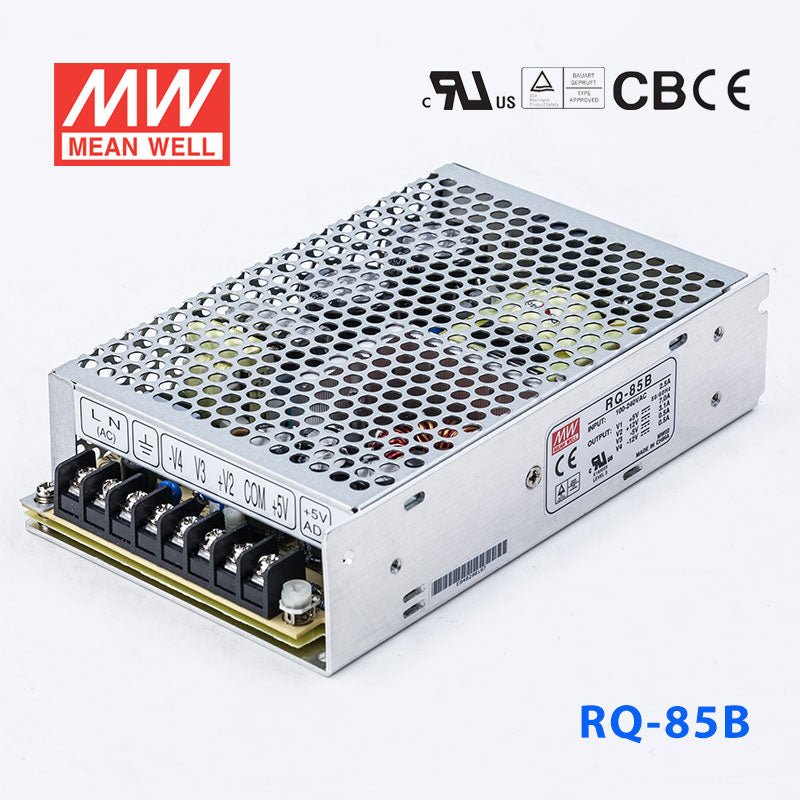

Mean Well RQ-85B Power Supply 85W 5V 12V -5V -12V
$41.96 USD
Unit price /
Unavailable
Description
Description
Features
| Protections: Short circuit / Overload / Over voltage |
| 100% full load burn-in test |
| Universal AC input/Full range |
| LED indicator for power on |
| High operating temperature up to 70°C |
| Withstand 5G vibration test |
| All using 105°C long life electrolytic capacitors |
| High efficiency, long life and high reliability |
| Cooling by free air convection |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC, 125~373VDC |
| AC inrush current (max.) | 50A at 230VAC |
| DC adjustment range | ±10% by potentiometer for CH1 |
| Overload protection | 110%~150% |
| Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC |
| Working temperature | -25~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV EN62368-1 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) |
| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 159x 97x 38 |
| Case No. | 901 |
| Packing | 24pcs /15.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRT Series
-
Power Rating80.7 Watt
-
Output Voltage5 Volt
-
Rated Current7 Ampere
-
Input Voltage88V~264V
-
No of Output4
-
Standards MetCB,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.32 lb
