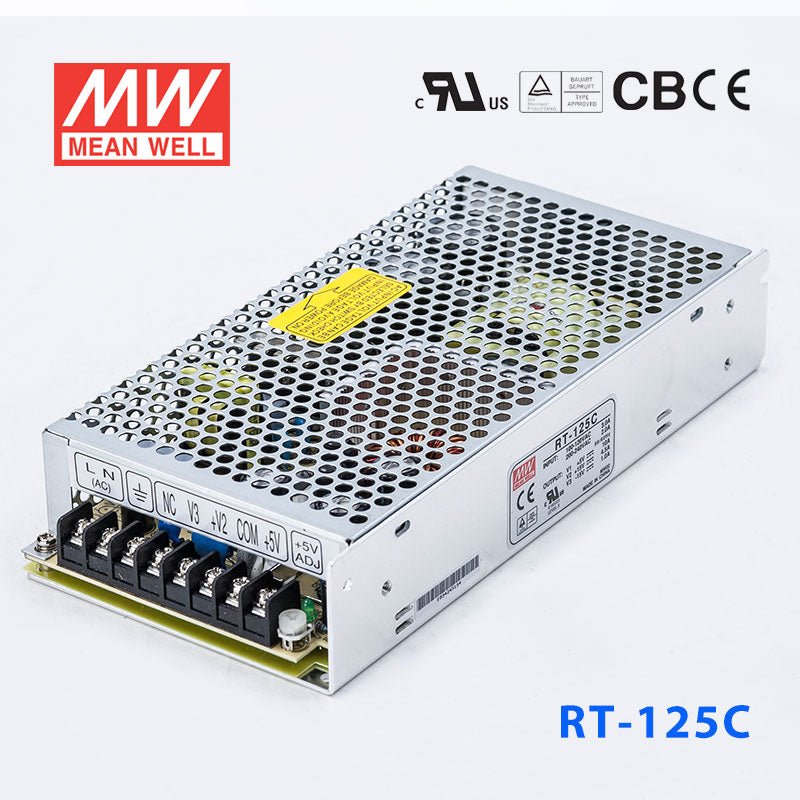

Mean Well RT-125C Power Supply 125W 5V 15V -15V 10A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RT-125C Power Supply 125W 5V 15V -15V 10A
Overview
RT-125C is the 5V 15V -15V output model of this series: rated current 10A 4.5A 1A, rated power 132.5W, typical efficiency 79%.
Features
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105℃ long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70℃
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 CH2 CH3
- DC VOLTAGE
- 5V 15V -15V
- RATED CURRENT
- 10A 4.5A 1A
- CURRENT RANGENote.3
- 0 ~ 12A 0 ~ 6A 0 ~ 1A
- RATED POWERNote.6
- 132.5W
- RIPPLE & NOISE (max.)Note.2
- 80mVp-p 150mVp-p 150mVp-p
- VOLTAGE ADJ. RANGE
- CH1: 4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ±2.0% +8,-5% ±6.0%
- LINE REGULATIONNote.4
- ±0.5% ±1.0% ±1.0%
- LOAD REGULATIONNote.5
- ±1.0% ±4.0% ±6.0%
- SETUP, RISE TIME
- 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 25ms/230VAC 30ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 79%
- AC CURRENT (Typ.)
- 3A/115VAC 2A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 50A/230VAC
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOAD
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1: 5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)on +5V output
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2(Note 9),-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035,BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 2853.1K hrs min. Telcordia SR-332 (Bellcore) ; 373.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*98*38mm (L*W*H)
- PACKING
- 0.7Kg; 20pcs/14Kg/0.85CUFT
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation. (In order to meet tolerance, it is recommended that CH1 load > 15% rated current for A, B,D type and CH1 load > 20% rated current for C type.)
- 4. Line regulation is measured from low line to high line at rated load.
- 5. Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
- 6. Each output can work within current range. But total output power can't exceed rated output power.
- 7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
- 9. Testing harmonic current at 85%load.
- 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Datasheet1
Certificates8
Test reports1
Catalogues1
FAQ
Can I use the RT-125C for industrial or embedded equipment that needs 5V and ±15V rails?
Yes, this model provides 5V, 15V, and -15V outputs from one unit. That output combination is relevant for embedded and industrial electronics that need both a 5V logic rail and symmetrical 15V rails.
Is the RT-125C suitable for analog signal-conditioning or instrumentation circuits?
It can be a good fit where the electronics need 5V plus 15V and -15V rails. The total power rating is 132.5W, and the 5V output is rated for 10A.
Can the RT-125C support mixed digital and analog boards in one enclosure?
Yes, the output set of 5V, 15V, and -15V is useful when one enclosure contains both logic and analog sections. Its triple-output design reduces the need to source those rails from separate power supplies.
Would the RT-125C work in compact automation hardware that sees vibration and wide indoor temperature variation?
The unit is specified for -25°C to +70°C operation, and the features list includes 5G vibration resistance. Its 199.0 x 98.0 x 38.0 mm dimensions also suit space-conscious industrial hardware builds.
Is the RT-125C intended for outdoor environments?
The temperature range is broad at -25°C to +70°C, but no IP rating is provided in the product data. That means it is best treated as a supply for protected indoor locations or enclosed equipment rather than exposed outdoor use.
How does RT-125C differ from the other RT-125 power supplies?
RT-125C is the 132.5W model with 5V, 15V, and -15V outputs and a 5V current rating of 10A. The other listed RT-125 versions are RT-125A at 131W with 5V, 12V, and -5V, RT-125B at 132W with 5V, 12V, and -12V, and RT-125D at 136W with 5V, 24V, and 12V.
