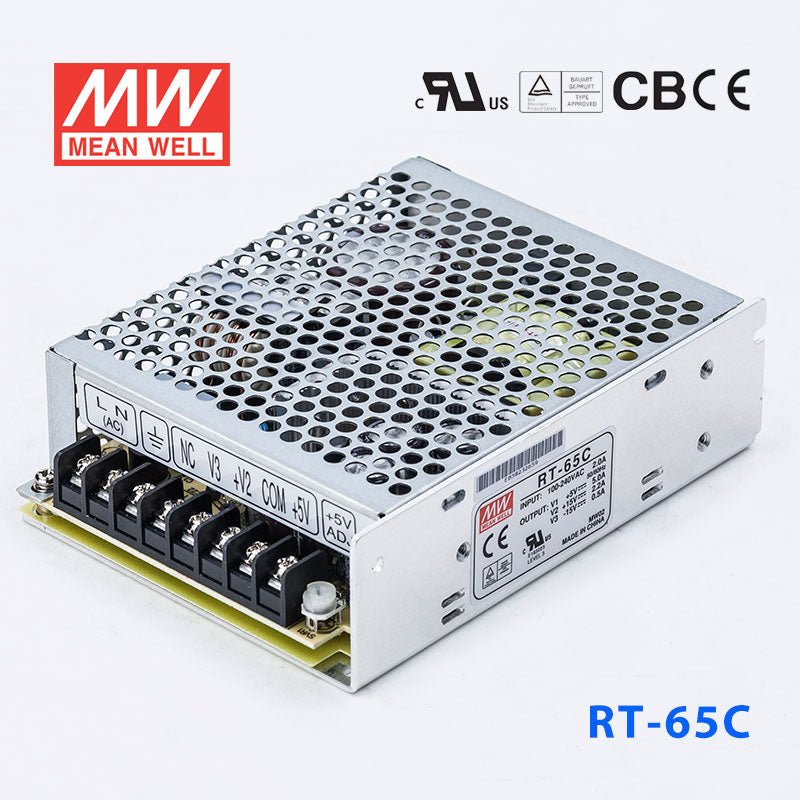

Mean Well RT-65C Power Supply 65W 5V 15V -15V

miniature size, economical, withstand 5G vibration and 70°C operation, triple output
SKU:
RT-65C

$24.48 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Protections: Short circuit / Overload / Over voltage
100% full load burn-in test
Universal AC input/Full range
LED indicator for power on
High operating temperature up to 70°C
Withstand 5G vibration test
All using 105°C long life electrolytic capacitors
High efficiency, long life and high reliability
Cooling by free air convection
3 years warranty


General Specification

AC input voltage range 88~264VAC, 125~373VDC
AC inrush current (max.) 50A at 230VAC
DC adjustment range ±10% by potentiometer for CH1
Overload protection 110%~150%
Over voltage protection 115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC
Working temperature -25~+70°C
Vibration 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards UL62368-1, TUV EN62368-1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2)
Connection Terminal block for input and output
Dimension (LxWxH) 129x 98x 38
Case No. 903
Packing 30pcs /13.2kg

Specifications

  • Brand
    Mean Well
  • Series
    RT Series
  • Power Rating
    65.5 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    88V~264V
  • No of Output
    3
  • Standards Met
    CB,CE,EAC,RCM,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~70°C
  • Warranty
    3 Year
  • Length
    5.08 in
  • Width
    3.86 in
  • Height
    1.5 in
  • Weight
    0.97 lb

File Downloads

::specification::
