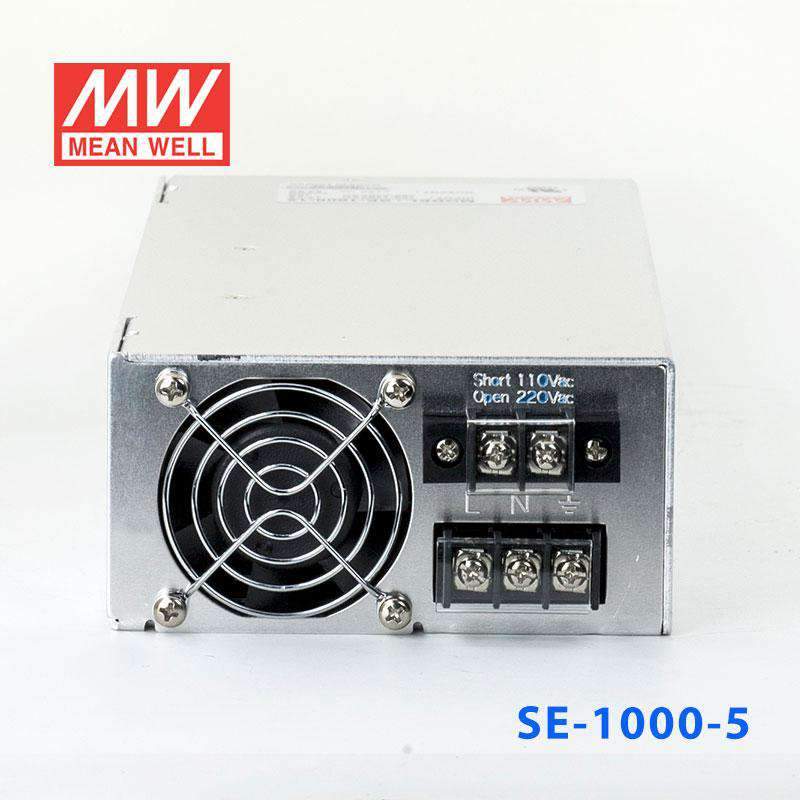

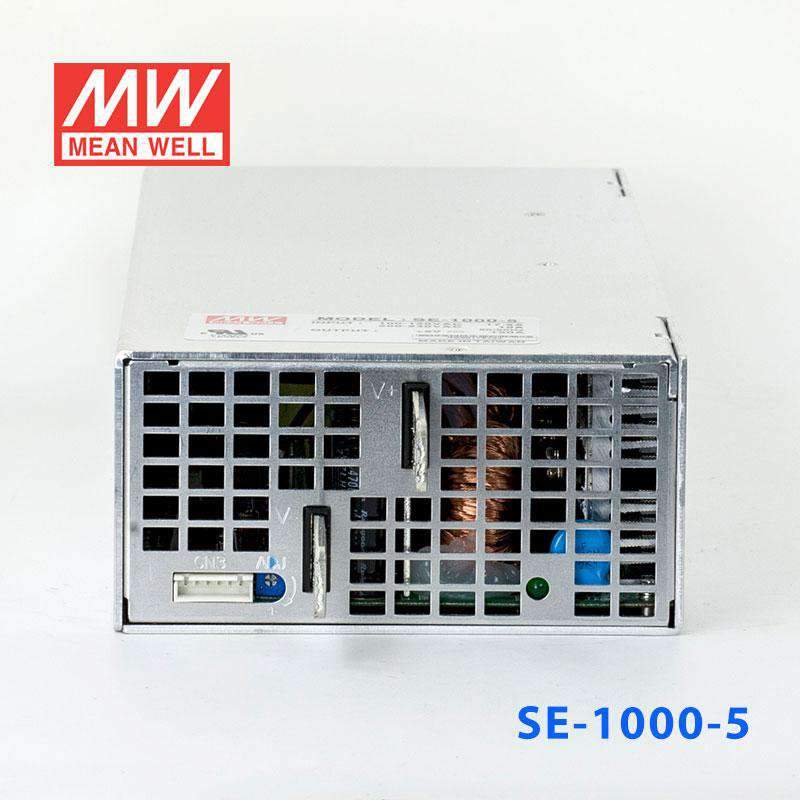

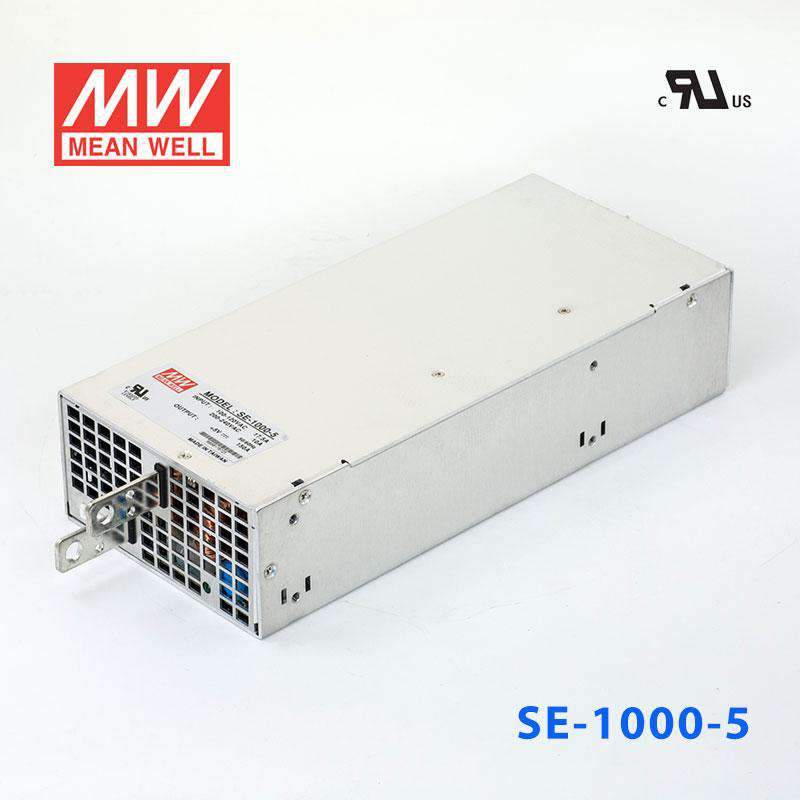

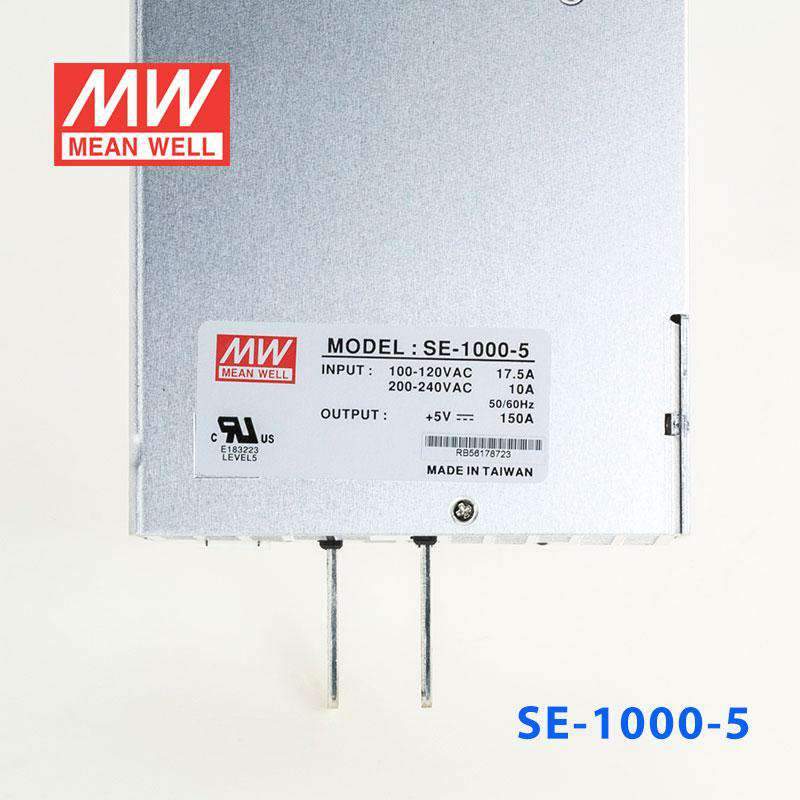

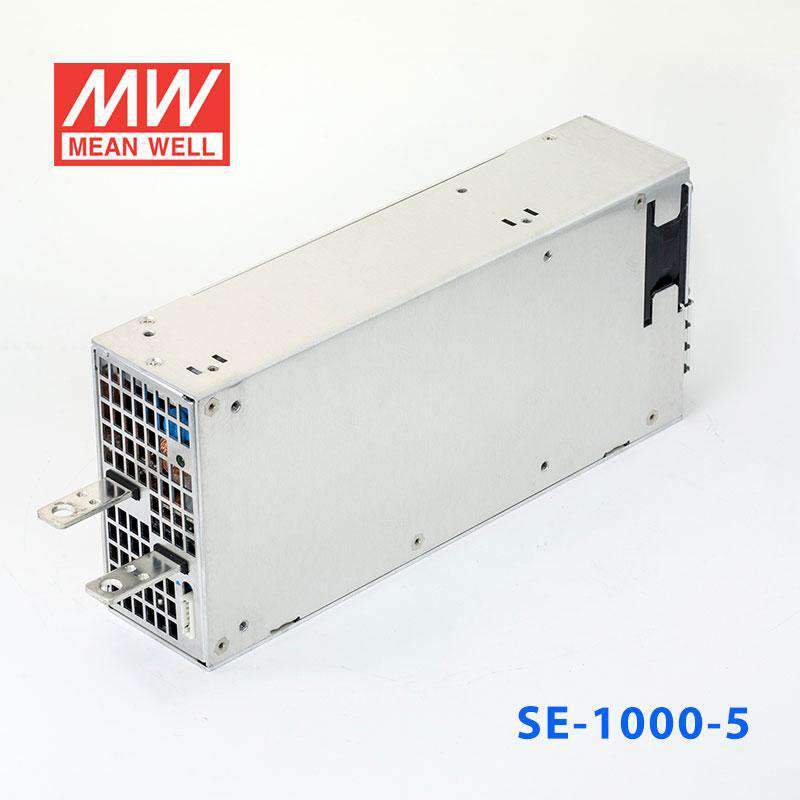

Mean Well SE-1000-5 Power Supply 750W 5V 150A
The SE-1000 is a 1000W Mean Well power converter (input range: 90~132VAC).
Key Features
- ✓ Input voltage range: 90~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL62368-1 BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSE Series
-
Power Rating750 Watt
-
Output Voltage5 Volt
-
Rated Current150 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length10.94 in
-
Width5 in
-
Height2.5 in
-
Weight5.51 lb
::specification::
Frequently Asked Questions
Can I use the SE-1000-5 for high-current 5V industrial electronics?
Yes, this model provides constant-voltage 5V output with up to 150A. That makes it suitable for high-current 5V industrial electronics as long as the total load remains within 750W.
Is the SE-1000-5 suitable for powering multiple 5V embedded systems from one supply?
It can support multiple 5V embedded systems when they share a common 5V DC power requirement. The combined load should stay within 150A and 750W.
Can this 5V supply work for a test bench or burn-in setup with heavy 5V loads?
It is a constant-voltage 5V supply with substantial current capacity for large 5V DC loads. For bench or burn-in use, the connected equipment should not exceed 150A total output current or 750W total power.
How does the SE-1000-5 compare to the other SE-1000 power supplies?
The listed SE-1000 variants are SE-1000-5 at 5V, 150A, 750W; SE-1000-9 at 9V, 100A, 900W; SE-1000-12 at 12V, 83.3A, 999.6W; SE-1000-15 at 15V, 66.7A, 1000.5W; SE-1000-24 at 24V, 41.7A, 1000.8W; and SE-1000-48 at 48V, 20.8A, 998.4W. Compared with the higher-voltage versions, this model provides the highest current in the group but the lowest wattage rating.
Can the SE-1000-5 be used in outdoor or low-temperature environments?
The provided specs list an operating temperature range of -20°C to +60°C. No IP rating is shown, so the data here does not confirm outdoor or wet-location use.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SE-1000 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SE-1000-24 Power Supply 1000W 24V 41.7A | 1000.8W | 24V | 41.7A | Indoor | $137.99 | View |
| Mean Well SE-1000-12 Power Supply 1000W 12V 83.3A | 999.6W | 12V | 83.3A | Indoor | $167.17 | View |
| Mean Well SE-1000-9 Power Supply 900W 9V 100A | 900W | 9V | 100A | Indoor | $196.48 | View |
| Mean Well SE-1000-48 Power Supply 1000W 48V 20.8A | 998.4W | 48V | 20.8A | Indoor | $155.04 | View |
| Mean Well SE-1000-15 Power Supply 1000W 15V 66.7A | 1000.5W | 15V | 66.7A | Indoor | $196.37 | View |
