Description
Description
Features

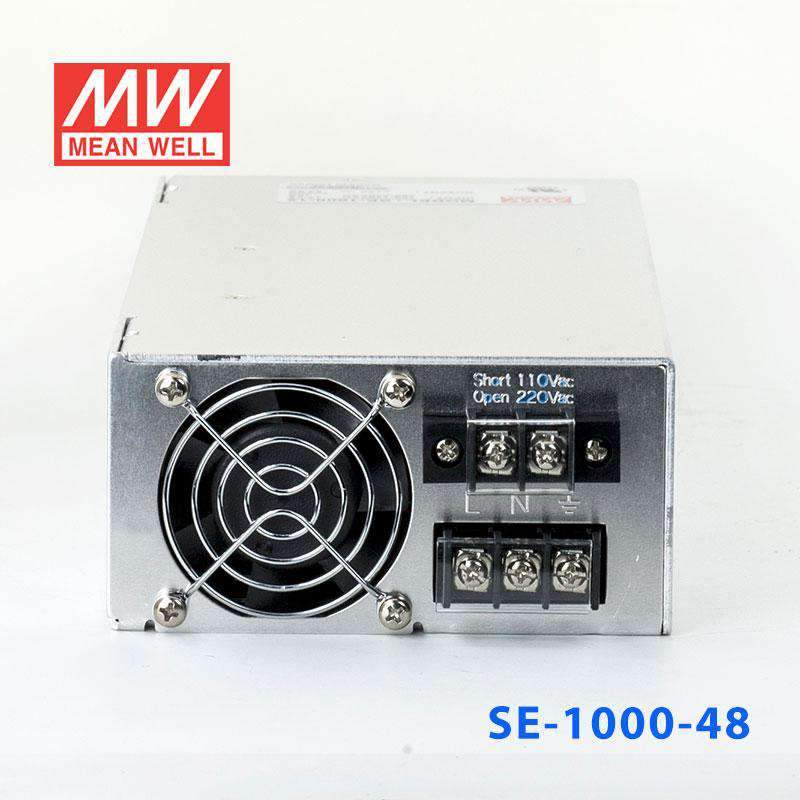

AC input selectable by switch |
100% full load burn-in test |
LED indicator for power on |
Built-in remote sense function |
Forced air cooling by built-in DC fan |
Protections: Short circuit / Overload / Over voltage / Over temperature |
DC OK, remote ON/OFF control |
2 years warranty |
General Specification
AC input voltage range | 90~132VAC / 180~264VAC selected by switch (600~1000W) |
AC inrush current (max.) | Cold start, 55A at 230VAC |
DC adjustment range | ±10% rated output voltage |
Overload protection Range | 105%~125% |
Overload protection Type | Shut down o/p voltage, re-power on to recover |
Over voltage protection | 115%~145% |
Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, 1 minute |
Working temperature | -20~+60°C (refer to output derating curve) |
Safety standards | UL60950-1 approved |
EMC standards | Design refer to EN55022 class B |

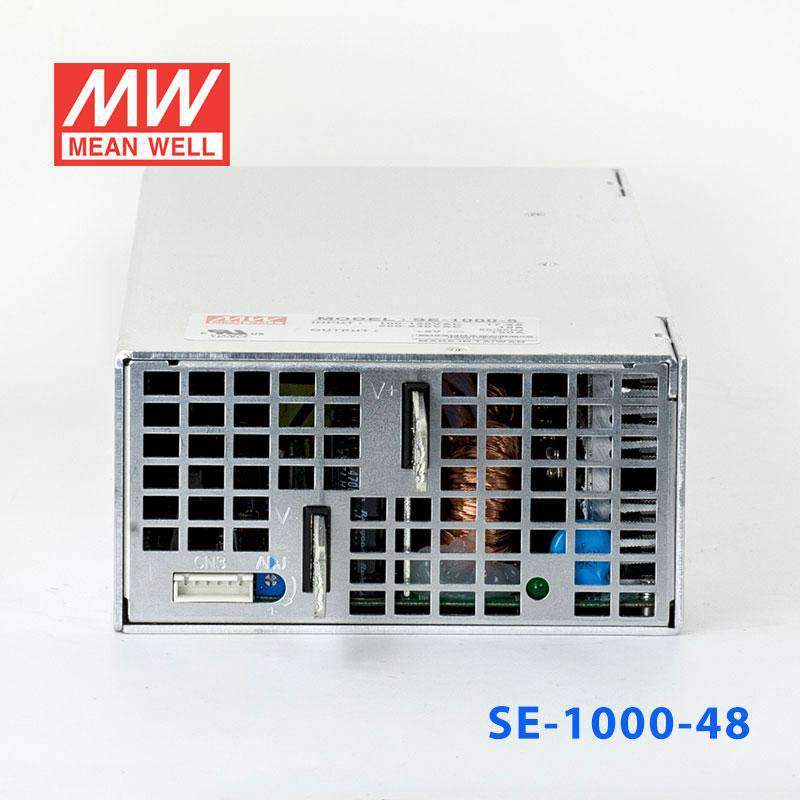

Connection | Terminal block with cover for input and output (SE-1000/1500: copper pillars for output) |
Dimension (LxWxH) | 278x 127x 63.5 |
Case No. | 935B |
Packing | 6pcs / 16kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesSE Series
-
Power Rating998.4 Watt
-
Output Voltage48 Volt
-
Rated Current20.8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length10.94 in
-
Width5 in
-
Height2.5 in
-
Weight5.51 lb
