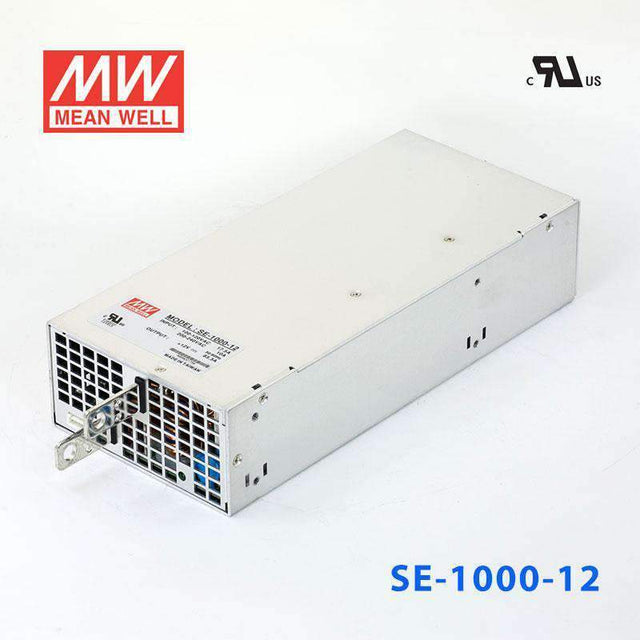

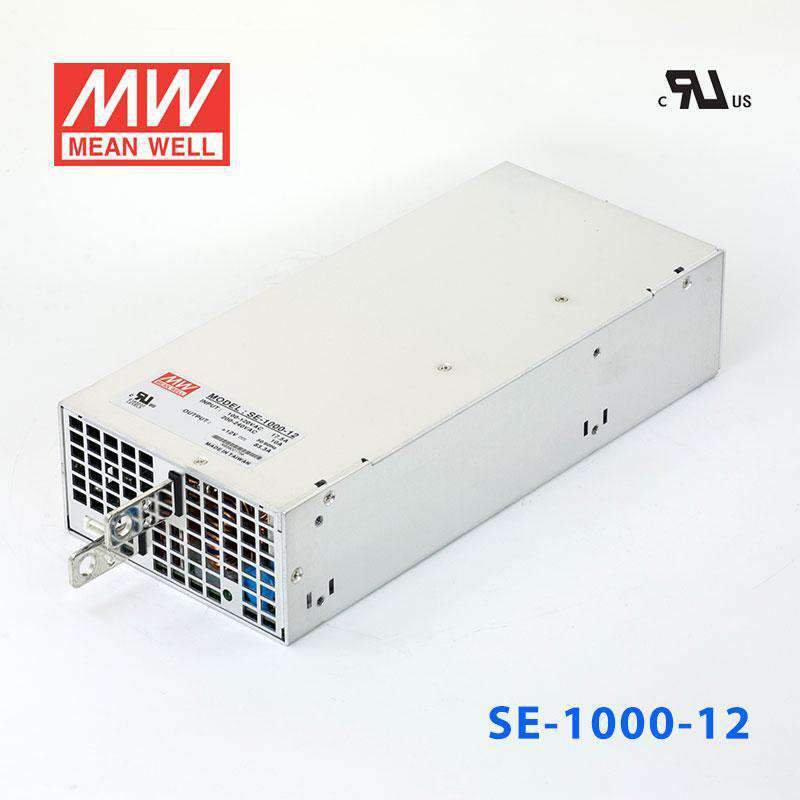

Mean Well SE-1000-12 Power Supply 1000W 12V

economical model medium to high power(450W~1500W)
$179.02 USD $196.37
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

AC input selectable by switch
100% full load burn-in test
LED indicator for power on
Built-in remote sense function
Forced air cooling by built-in DC fan
Protections: Short circuit / Overload / Over voltage / Over temperature
DC OK, remote ON/OFF control
2 years warranty

General Specification

AC input voltage range 90~132VAC / 180~264VAC selected by switch (600~1000W)
AC inrush current (max.) Cold start, 55A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 105%~125%
Overload protection Type Shut down o/p voltage, re-power on to recover
Over voltage protection 115%~145%
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, 1 minute
Working temperature -20~+60°C (refer to output derating curve)
Safety standards UL60950-1 approved
EMC standards Design refer to EN55022 class B
Connection Terminal block with cover for input and output (SE-1000/1500: copper pillars for output)
Dimension (LxWxH) 278x 127x 63.5
Case No. 935B
Packing 6pcs / 16kg

Specifications

  • Brand
    Mean Well
  • Series
    SE Series
  • Power Rating
    999.6 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    83.3 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Standards Met
    BSMI,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~60°C
  • Warranty
    2 Year
  • Length
    10.94 in
  • Width
    5 in
  • Height
    2.5 in
  • Weight
    5.51 lb

File Downloads

::specification::
