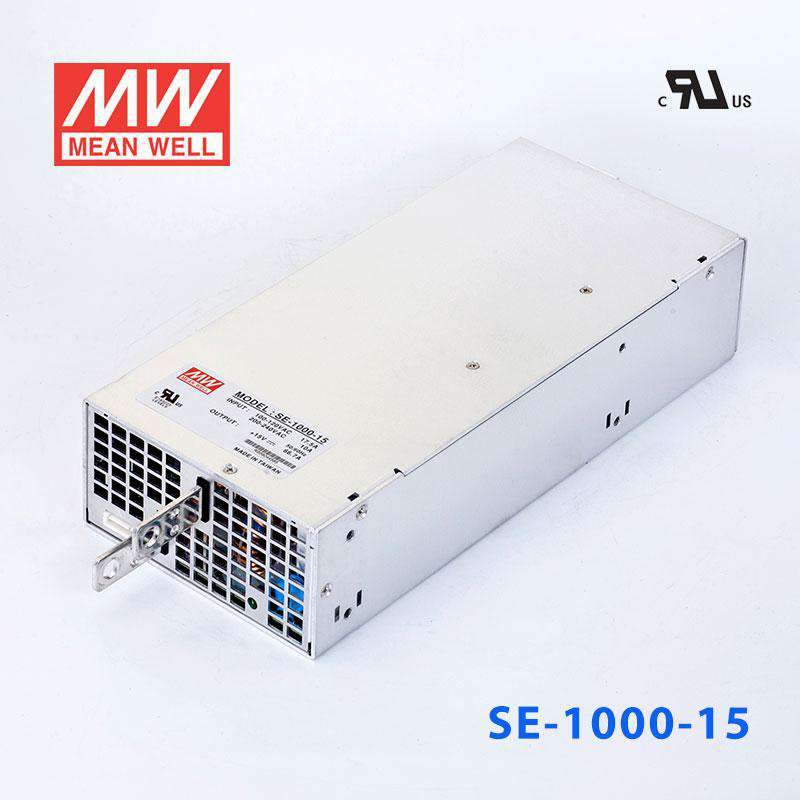

Mean Well SE-1000-15 Power Supply 1000W 15V
The SE-1000 is a 1000W Mean Well power converter (input range: 90~132VAC).
Key Features
- ✓ Input voltage range: 90~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL62368-1 BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSE Series
-
Power Rating1000.5 Watt
-
Output Voltage15 Volt
-
Rated Current66.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length10.94 in
-
Width5 in
-
Height2.5 in
-
Weight5.51 lb
::specification::
Frequently Asked Questions
Can I use the SE-1000-15 for a 15V industrial automation or instrumentation system?
Yes, if the system requires constant-voltage 15V DC and the total load stays within 66.7A and 1000.5W. That capacity is suited to larger industrial automation assemblies, control equipment, and instrumentation racks built around a 15V DC bus.
Is the SE-1000-15 a good fit for a centralized 15V power source in embedded development or validation?
It can be used where multiple 15V embedded or electronics loads need one shared supply. With 15V output, 66.7A available current, and 1000.5W total power, it fits centralized bench, rack, or burn-in setups that draw substantial 15V power.
Can this unit support high-power 15V DC loads in a factory or lab environment?
Yes, it is designed as a constant-voltage 15V supply with up to 66.7A output. Its 1000.5W rating places it in the medium to high power range, which is appropriate for larger 15V DC loads in industrial or lab equipment.
What environment is the SE-1000-15 intended for?
The specified operating temperature range is -20°C to +60°C. No IP rating is listed in the provided specs, so the level of protection against dust or water is not defined and outdoor exposure should not be assumed from the available data.
What is the difference between the SE-1000-15 and other SE-1000 voltage options?
The SE-1000-15 is the 15V version and is rated for 66.7A and 1000.5W. Other listed SE-1000 models are SE-1000-12 at 12V, 83.3A, 999.6W; SE-1000-24 at 24V, 41.7A, 1000.8W; SE-1000-48 at 48V, 20.8A, 998.4W; SE-1000-9 at 9V, 100A, 900W; and SE-1000-5 at 5V, 150A, 750W.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SE-1000 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SE-1000-24 Power Supply 1000W 24V | 1000.8W | 24V | 41.7A | Indoor | $137.99 | View |
| Mean Well SE-1000-12 Power Supply 1000W 12V | 999.6W | 12V | 83.3A | Indoor | $167.17 | View |
| Mean Well SE-1000-9 Power Supply 900W 9V | 900W | 9V | 100A | Indoor | $196.48 | View |
| Mean Well SE-1000-5 Power Supply 750W 5V | 750W | 5V | 150A | Indoor | $196.49 | View |
| Mean Well SE-1000-48 Power Supply 1000W 48V | 998.4W | 48V | 20.8A | Indoor | $155.04 | View |
