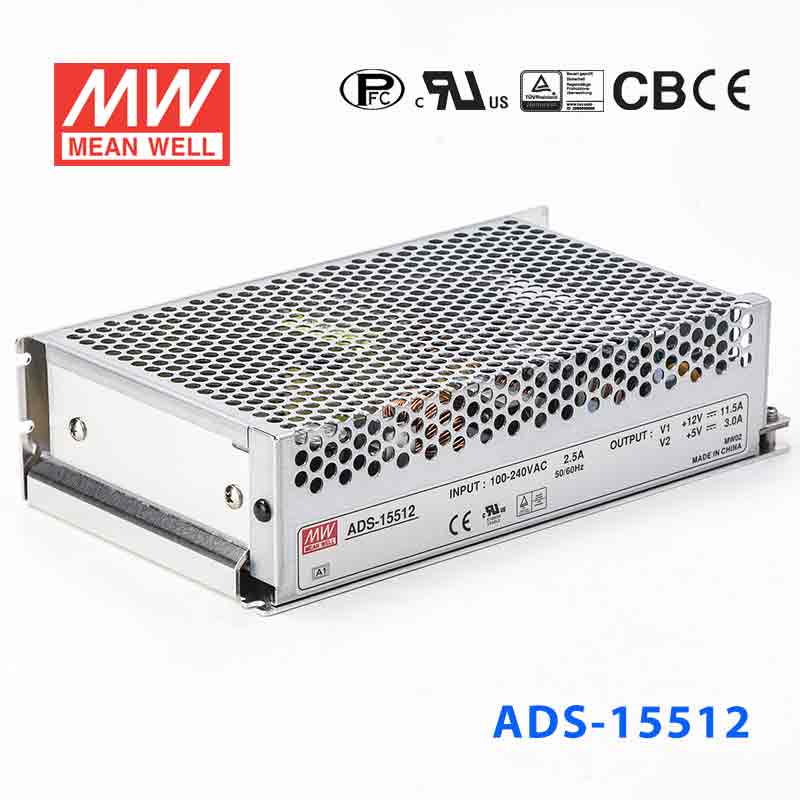

Mean Well ADS-15512 Power Supply 153W 12V 11.5A - 5V Output
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ADS-15512 Power Supply 153W 12V 11.5A - 5V Output
The ADS is a 155W Mean Well. power converter. and an input range of 88~264VAC.
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesADS Series
-
Power Rating153 Watt
-
Output Voltage12 Volt
-
Rated Current11.5 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length7.83 in
-
Width4.33 in
-
Height1.97 in
-
Weight2.2 lb
::specification::
Frequently Asked Questions
What is the ADS-15512 typically used for?
The Mean Well ADS-15512 is typically used in security, control, and backup-power systems that need a 12V main DC output and benefit from an auxiliary 5V output. With 153W of rated power and 11.5A on the main 12V output, it is a good fit for higher-current 12V systems that need more capacity than compact lower-power units.
Can the ADS-15512 support higher-current 12V system loads?
Yes. The ADS-15512 provides a 12V main output rated at 11.5A, giving it substantial current headroom for larger 12V DC loads compared with smaller models. The total connected demand should still remain within the unit's 153W and 11.5A main-output rating.
Is the ADS-15512 a good fit for systems that need both 12V power and an auxiliary 5V rail?
Yes. The ADS-15512 is useful in systems where the main load needs 12V DC and supporting electronics benefit from a separate 5V output. That dual-output format can make it more suitable for mixed-voltage control or security equipment than a single-output 12V supply, provided the overall load stays within the product's published ratings.
Can the ADS-15512 be used for larger 12V control or security panels?
It can be a strong fit when the system needs a higher-capacity 12V rail. With 153W and 11.5A on the main output, the ADS-15512 offers more headroom than lower-power 12V models for larger panels, grouped devices, or systems with higher steady DC demand.
Will the ADS-15512 operate from common AC mains inputs?
Yes. The listed AC input range is 88-264VAC, so the ADS-15512 can operate from common 120V and 240V AC mains systems within that range. That makes it easier to standardize the same power supply across multiple installation sites.
Is the ADS-15512 suitable for outdoor or exposed installations?
The current product data does not list a waterproof IP rating, so the ADS-15512 should be treated as an indoor or protected-enclosure power supply rather than a directly exposed outdoor unit. Its stated working temperature is -10°C to +60°C, but final enclosure protection should still match the site conditions.
How does the ADS-15512 compare with other ADS series models?
The ADS-15512 provides 153W at 12V and 11.5A on the main output. In the same family, the ADS-15524 provides 154.2W at 24V and 5.8A, the ADS-15548 provides 154.2W at 48V and 2.9A, and the smaller ADS-5512 and ADS-5524 provide 51W and 58W respectively. The main difference is the output voltage and the available current and wattage for the primary load.
