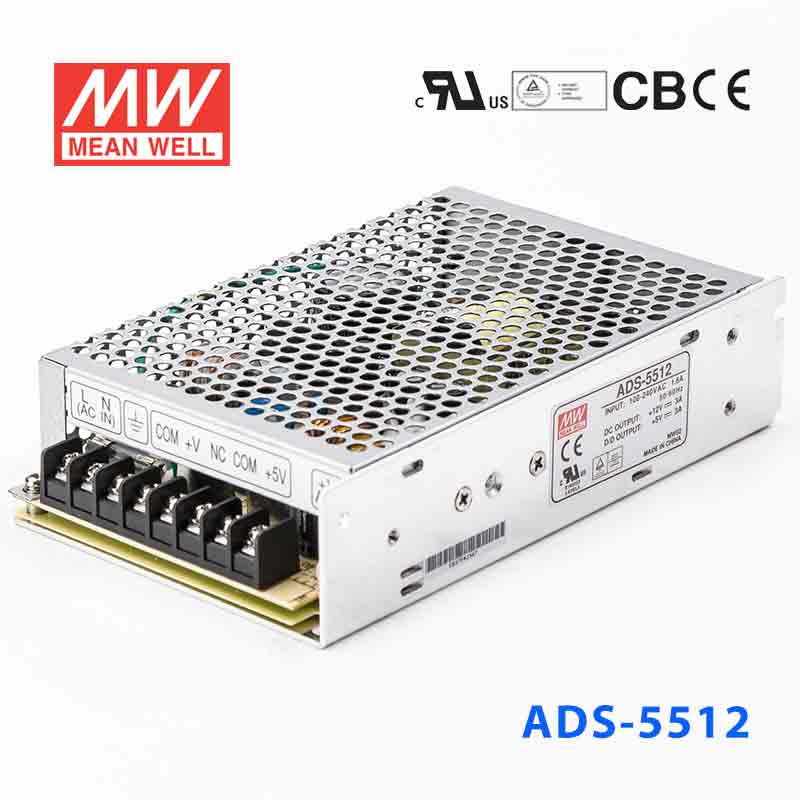

Mean Well ADS-5512 Power Supply 51W 12V 3A - 5V Output

100% full load burn-in test, fixed switching frequency at 45KHz, UPS function
$36.80 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Protections: Short circuit/ Overload/ Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 45KHz
2 years warranty

General Specification

AC input voltage range 88~264VAC; 124~370VDC
AC inrush current COLD START 20A/115VAC; 40A/230VAC
Leakage current

<1mA / 240VAC

Overload protection 105%~150% rated output power
Over voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 1400ms, 50ms, 80ms
Withstand voltage I/P-O/P:3KVAC; I/P-FG:2KVAC; O/P-FG:0.5KVAC
Working temperature -10~+60°C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC standards EN55032 class B, EN61000-3-2,3
Case No. 901
Dimension (LxWxH) 159x97x38 mm
Packing 24pcs / 13.7kg

Specifications

  • Brand
    Mean Well
  • Series
    ADS Series
  • Power Rating
    51 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    3 Ampere
  • Input Voltage
    88V~264V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    2 Year
  • Length
    6.26 in
  • Width
    3.82 in
  • Height
    1.5 in
  • Weight
    1.26 lb

File Downloads

::specification::
