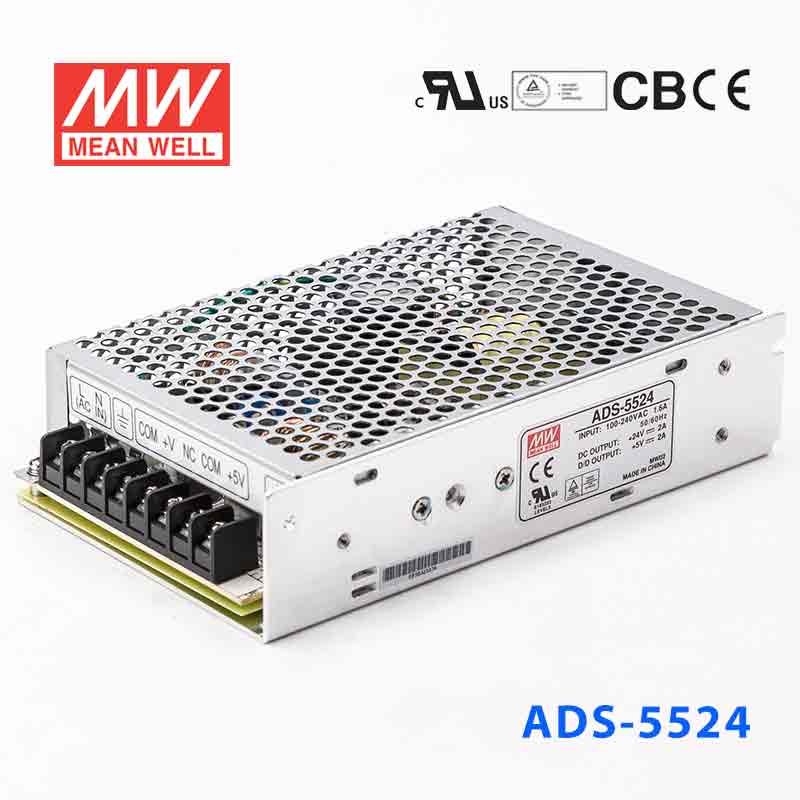

Mean Well ADS-5524 Power Supply58W 24V 2A - 5V Output
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ADS-5524 Power Supply58W 24V 2A - 5V Output
Overview
ADS-5524 is the CH1: 24V / CH2: 5V output model of this series: rated current CH1: 2A / CH2: 2A, rated power 58W, typical efficiency 79%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 45KHz
- 2 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 / CH2
- DC VOLTAGE
- CH1: 24V / CH2: 5V
- RATED CURRENT
- CH1: 2A / CH2: 2A
- CURRENT RANGE
- CH1: 0 ~ 2.5A / CH2: 0 ~ 4A
- RATED POWER
- 58W
- RIPPLE & NOISE (max.)Note.2
- CH1: 100mVp-p / CH2: 100mVp-p
- VOLTAGE ADJ. RANGE
- CH1:21.6 ~ 26.4V
- VOLTAGE TOLERANCENote.3
- CH1: ±1.0% / CH2: ±3.0%
- LINE REGULATION
- CH1: ±1.0% / CH2: ±0.5%
- LOAD REGULATION
- CH1: ±1.0% / CH2: ±0.5%
- SETUP, RISE TIME
- 1400ms, 50ms/230VAC 3300ms, 50ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 80ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 264VAC 124 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 79%
- AC CURRENT (Typ.)
- 1.6A/115VAC 1A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 20A/115VAC 40A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- CH1:27.6 ~ 32.4V Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0~50℃) on CH1 output
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2486.3K hrs min. Telcordia SR-332 (Bellcore) ; 416.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 159*97*38mm (L*W*H)
- PACKING
- 0.57Kg; 24pcs/13.7Kg/0.83CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

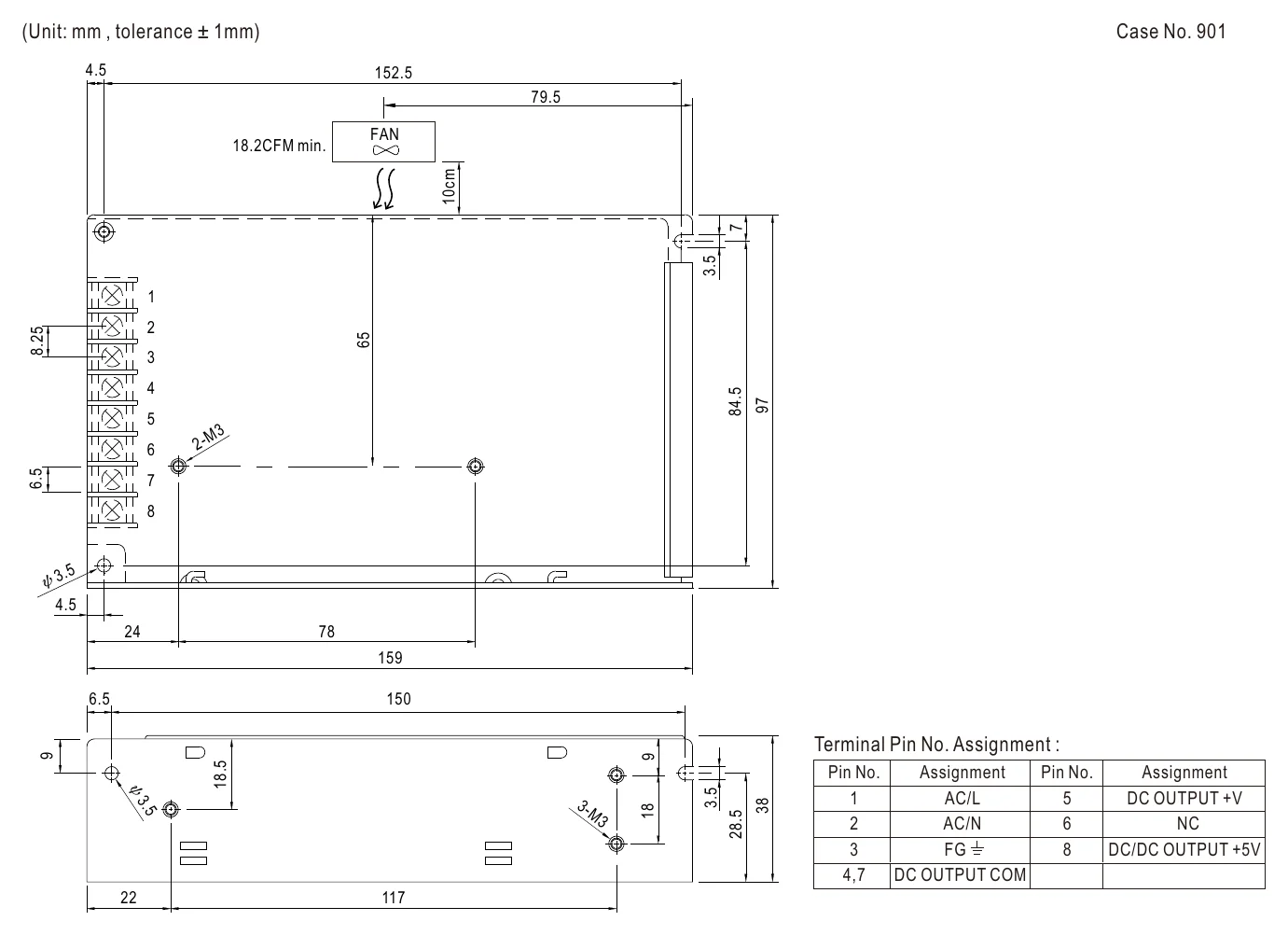

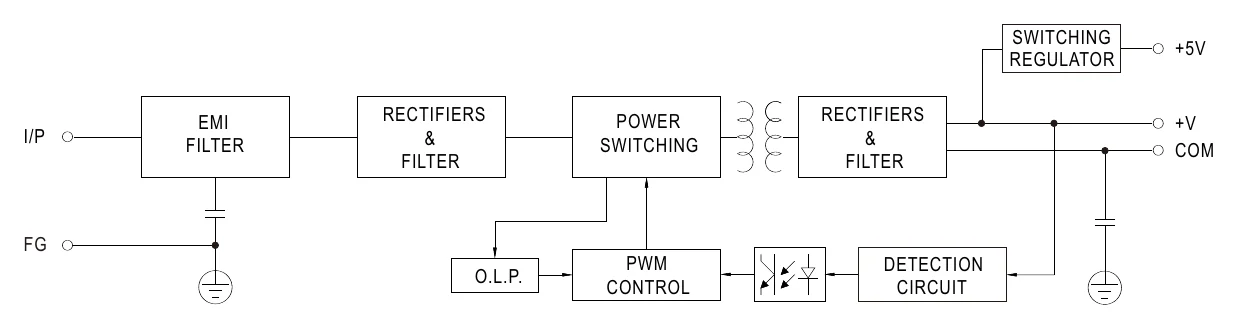

Technical drawings
Downloads
Certificates7
Test reports1
Catalogues1
FAQ
What is the ADS-5524 typically used for?
The Mean Well ADS-5524 is typically used in smaller 24V DC systems that need a main 24V output and an auxiliary 5V output. With 58W of rated power and 2A rated on the main 24V output (plus 2A on the 5V output), it fits lighter-duty security and control applications.
Can the ADS-5524 be useful in compact systems that need both 24V and 5V outputs?
Yes. The ADS-5524 is suited to lighter-duty mixed-voltage applications where the main equipment needs 24V DC and supporting electronics benefit from a separate 5V output. That dual-output format can make it more flexible than a single-output 24V unit in smaller systems.
Will the ADS-5524 operate from common 120V and 240V AC mains?
Yes. The specified AC input range is 88-264VAC, so the ADS-5524 can run from common 120V and 240V mains supplies within that range. That helps keep deployments flexible across different site power standards.
Is the ADS-5524 intended for exposed outdoor installation?

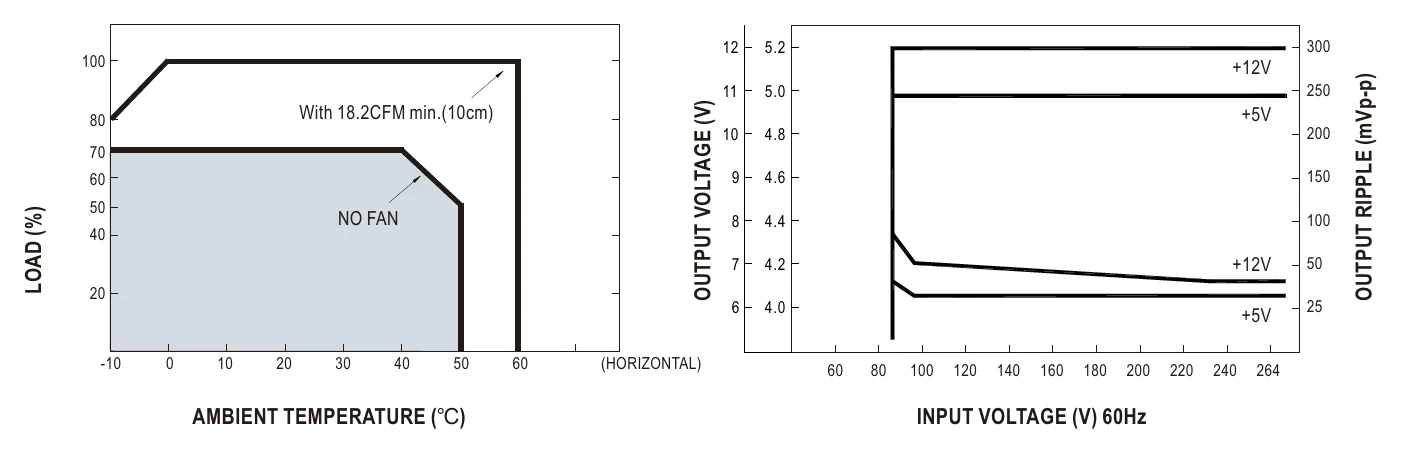

The current product information does not list a waterproof IP rating, so the ADS-5524 should be installed indoors or inside a suitable protective enclosure rather than in direct outdoor exposure. Its listed working temperature is -10°C to +60°C with output derating per the derating curve (shown with 18.2CFM forced air and with no fan), and the installation still needs the right environmental protection.
How does the ADS-5524 compare with other ADS series models?
The ADS-5524 is the 24V model of the ADS-55 series, delivering 58W total: 24V at 2A plus 5V at 2A. The ADS-5512 on the same sheet provides 12V at 3A plus 5V at 3A for 51W. The best choice depends on your required main voltage and how much output margin your load needs.
