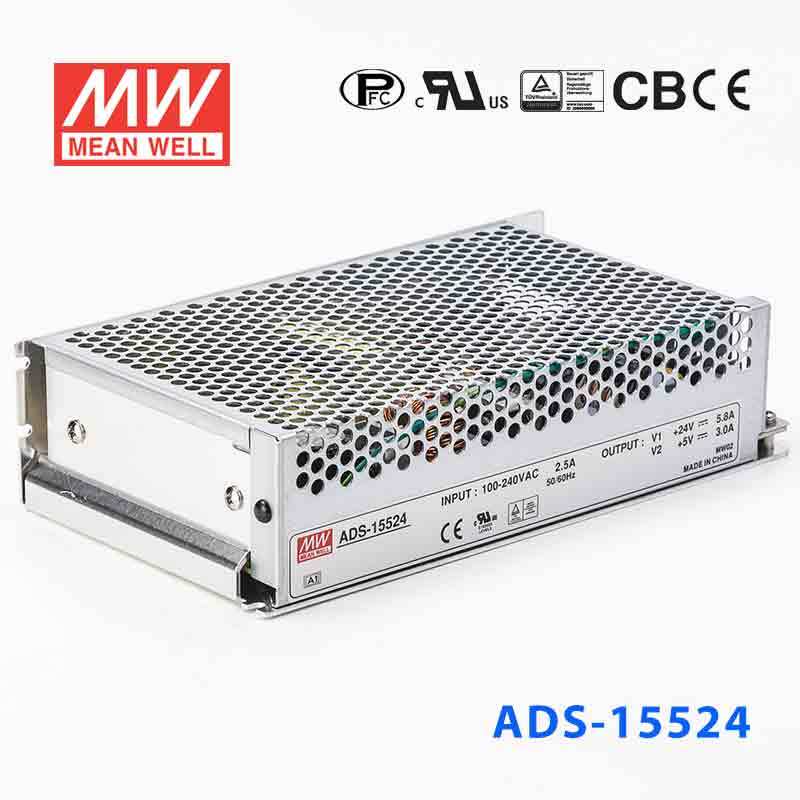

Mean Well ADS-15524 Power Supply154.2W 24V 5.8A - 5V Output
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ADS-15524 Power Supply154.2W 24V 5.8A - 5V Output
Overview
ADS-15524 is the 24V 5V output model of this series: rated current 5.8A 3A, rated power 154.2W, typical efficiency 82%.
Features
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at PFC 67KHz, PWM 134KHz
- 2 years warranty
Specifications
OUTPUT
- OUTPUT NUMBER
- CH1 CH2
- DC VOLTAGE
- 24V 5V
- RATED CURRENT
- 5.8A 3A
- CURRENT RANGE
- 0 ~ 6.5A 0 ~ 3A
- RATED POWER
- 154.2W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p 100mVp-p
- VOLTAGE ADJ. RANGE
- CH1:21.6 ~ 26.4V
- VOLTAGE TOLERANCENote.3
- ±1.0% ±3.0%
- LINE REGULATION
- ±0.5% ±0.5%
- LOAD REGULATION
- ±0.5% ±2.0%
- SETUP, RISE TIME
- 1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 24ms/230VAC 20ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 264VAC 124 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF>0.92
- EFFICIENCY (Typ.)
- 82%
- AC CURRENT (Typ.)
- 2.5A/115VAC 1.5A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 23A/115VAC 45A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is reoved
- OVER VOLTAGE
- CH1:27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2235.6K hrs min. Telcordia SR-332 (Bellcore) ; 252.1K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*110*50mm (L*W*H)
- PACKING
- 1Kg; 16pcs/16Kg/0.95CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Certificates7
Test reports1
Catalogues1
FAQ
What kinds of systems is the ADS-15524 designed to power?
The Mean Well ADS-15524 is designed for security, control, and backup-power systems that need a 24V main DC output and an auxiliary 5V output. With 154.2W of rated power and 5.8A on the main 24V output, it is a strong fit for 24V DC systems that need more capacity than compact lower-power supplies.
Is the ADS-15524 a good fit for higher-power 24V DC loads?
Yes. The ADS-15524 provides 5.8A on its main 24V output, which makes it suitable for larger 24V loads than small-form alternatives. The connected load should still stay within the 5.8A main-output rating and the supply's 154.2W total rated power.
Can the ADS-15524 be useful in systems that need both 24V power and a 5V auxiliary rail?
Yes. The ADS-15524 is designed for mixed-voltage system layouts where the main load needs 24V DC and supporting electronics can benefit from a separate 5V output. That makes it more flexible than a single-output 24V supply in applications that combine a main 24V rail with lower-voltage logic or support circuitry.
Is the ADS-15524 suitable for larger 24V control or backup-power assemblies?
It can be a good fit when a 24V system needs more output margin than compact supplies provide. With 154.2W and 5.8A on the main output, the ADS-15524 gives more headroom for larger 24V assemblies, grouped devices, or higher steady-state demand.
Can the ADS-15524 run on standard 120V and 240V AC mains?
Yes. The specified input range is 88-264VAC, so the ADS-15524 can operate from common 120V and 240V mains supplies that fall within that range. That flexibility helps when standardizing equipment across different locations.
Is the ADS-15524 meant for direct outdoor exposure?
The current product information does not show an IP rating for waterproof use, so the ADS-15524 should be installed indoors or inside a suitable protective enclosure. Its listed working temperature is -10°C to +60°C with derating per the datasheet curve (full load needs 21.6CFM forced air), and environmental protection still depends on the final installation.
How does the ADS-15524 compare with other ADS series options?
The ADS-15524 provides 154.2W at 24V and 5.8A on the main output. The ADS-15512 offers 153W at 12V and 11.5A, and the ADS-15548 offers 154.2W at 48V and 2.9A, each with the same 5V 3A auxiliary output. Selection mainly depends on the output voltage your system needs and how much power margin you want.
