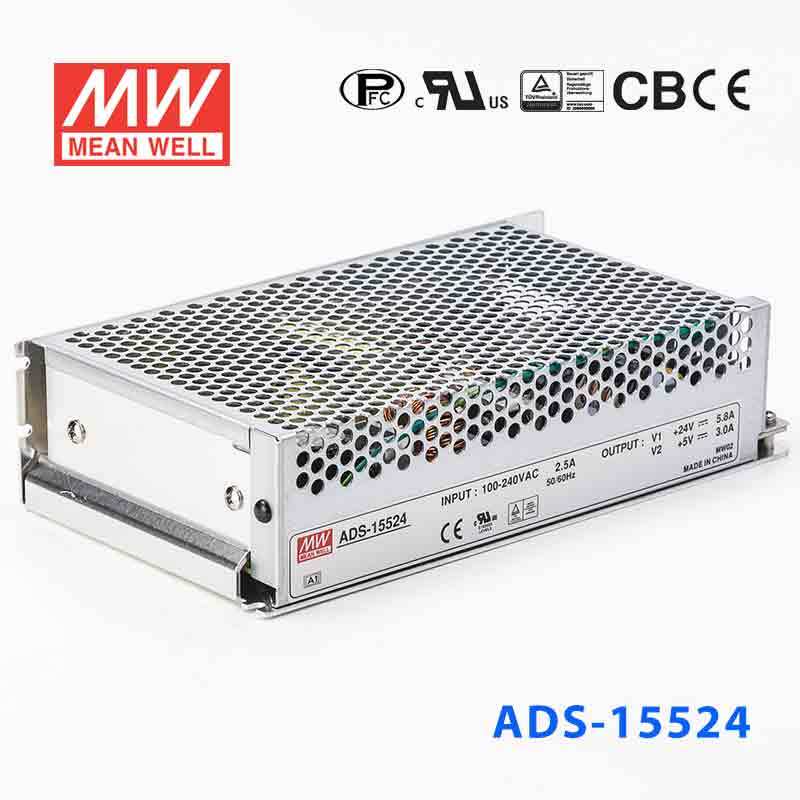

Mean Well ADS-15524 Power Supply154.2W 24V 5.8A - 5V Output
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ADS-15524 Power Supply154.2W 24V 5.8A - 5V Output
The ADS is a 155W Mean Well. power converter. and an input range of 88~264VAC.
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesADS Series
-
Power Rating154.2 Watt
-
Output Voltage24 Volt
-
Rated Current5.8 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length7.83 in
-
Width4.33 in
-
Height1.97 in
-
Weight2.2 lb
::specification::
Frequently Asked Questions
What kinds of systems is the ADS-15524 designed to power?
The Mean Well ADS-15524 is designed for security, control, and backup-power systems that need a 24V main DC output and an auxiliary 5V output. With 154.2W of rated power and 5.8A on the main 24V output, it is a strong fit for 24V DC systems that need more capacity than compact lower-power supplies.
Is the ADS-15524 a good fit for higher-power 24V DC loads?
Yes. The ADS-15524 provides 5.8A on its main 24V output, which makes it suitable for larger 24V loads than small-form alternatives. The connected load should still stay within the supply's 154.2W and 5.8A main-output rating.
Can the ADS-15524 be useful in systems that need both 24V power and a 5V auxiliary rail?
Yes. The ADS-15524 is designed for mixed-voltage system layouts where the main load needs 24V DC and supporting electronics can benefit from a separate 5V output. That makes it more flexible than a single-output 24V supply in applications that combine a main 24V rail with lower-voltage logic or support circuitry.
Is the ADS-15524 suitable for larger 24V control or backup-power assemblies?
It can be a good fit when a 24V system needs more output margin than compact supplies provide. With 154.2W and 5.8A on the main output, the ADS-15524 gives more headroom for larger 24V assemblies, grouped devices, or higher steady-state demand.
Can the ADS-15524 run on standard 120V and 240V AC mains?
Yes. The specified input range is 88-264VAC, so the ADS-15524 can operate from common 120V and 240V mains supplies that fall within that range. That flexibility helps when standardizing equipment across different locations.
Is the ADS-15524 meant for direct outdoor exposure?
The current product information does not show an IP rating for waterproof use, so the ADS-15524 should be installed indoors or inside a suitable protective enclosure. Its listed working temperature is -10°C to +60°C, but environmental protection still depends on the final installation.
How does the ADS-15524 compare with other ADS series options?
The ADS-15524 provides 154.2W at 24V and 5.8A on the main output. The ADS-15512 offers 153W at 12V and 11.5A, the ADS-15548 offers 154.2W at 48V and 2.9A, and the smaller ADS-5524 provides 58W at 24V and 2A. Selection mainly depends on the output voltage your system needs and how much power margin you want.
