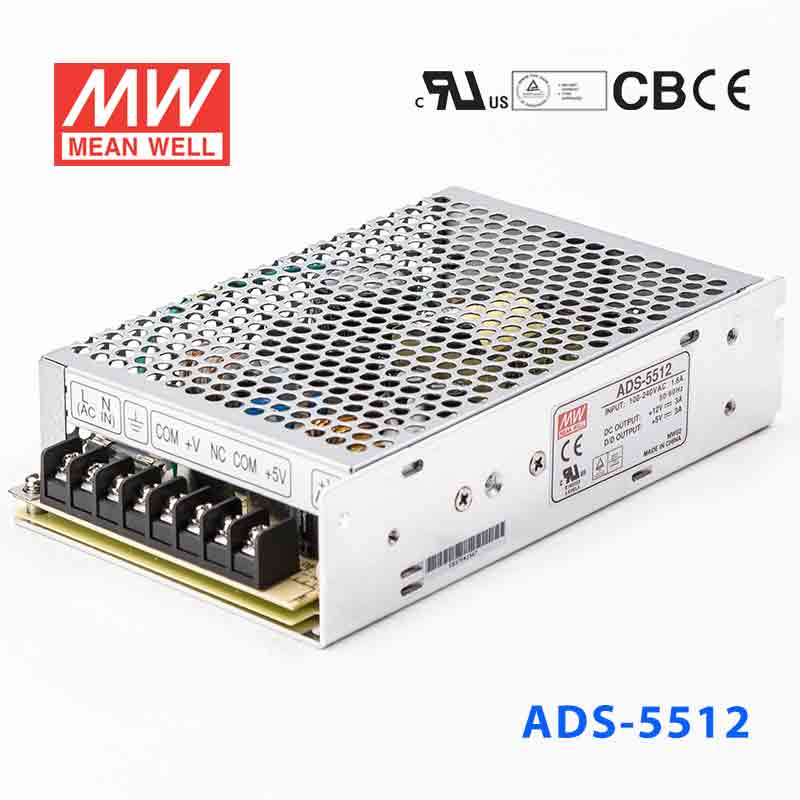

Mean Well ADS-5512 Power Supply 51W 12V 3A - 5V Output
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ADS-5512 Power Supply 51W 12V 3A - 5V Output
The ADS is a 155W Mean Well. power converter. and an input range of 88~264VAC.
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesADS Series
-
Power Rating51 Watt
-
Output Voltage12 Volt
-
Rated Current3 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.26 lb
::specification::
Frequently Asked Questions
What types of systems is the ADS-5512 designed to support?
The Mean Well ADS-5512 is designed for smaller 12V DC systems that need a main 12V output and an auxiliary 5V output. With 51W of rated power and 3A on the main 12V output, it is a practical fit for lighter-duty security, control, and backup-power applications that do not need the larger capacity of the 155W-class models.
Is the ADS-5512 better for lighter 12V loads than the ADS-15512?
Yes, when the system load is relatively small. The ADS-5512 provides a 12V main output at 3A and 51W, while the ADS-15512 provides 11.5A and 153W on the same voltage class. That makes the ADS-5512 a better fit when you need 12V with lower overall power demand.
Can the ADS-5512 help in compact systems that need both 12V and 5V outputs?
Yes. The ADS-5512 is useful for smaller mixed-voltage systems where the main load needs 12V DC and supporting electronics can benefit from a separate 5V output. Its lower power level makes it more appropriate for compact or lighter-duty applications than the larger ADS-15512.
Can the ADS-5512 run from standard AC mains inputs?
Yes. The listed AC input range is 88-264VAC, so the ADS-5512 can operate from common 120V and 240V mains systems within that range. That flexibility makes it easier to use across different installation sites.
Is the ADS-5512 suitable for direct outdoor use?
The current product data does not show an IP rating for waterproof installation, so the ADS-5512 should be treated as an indoor or protected-enclosure power supply rather than a unit for direct outdoor exposure. Its listed working temperature is -10°C to +60°C, but proper enclosure protection is still required.
How does the ADS-5512 compare with other ADS models?
The ADS-5512 is the lower-power 12V option in this family, providing 51W at 12V and 3A. The ADS-15512 offers much higher 12V capacity at 153W and 11.5A, while the ADS-5524, ADS-15524, and ADS-15548 cover 24V and 48V output classes. Selection depends on the voltage your system needs and whether your load is light-duty or higher-capacity.
