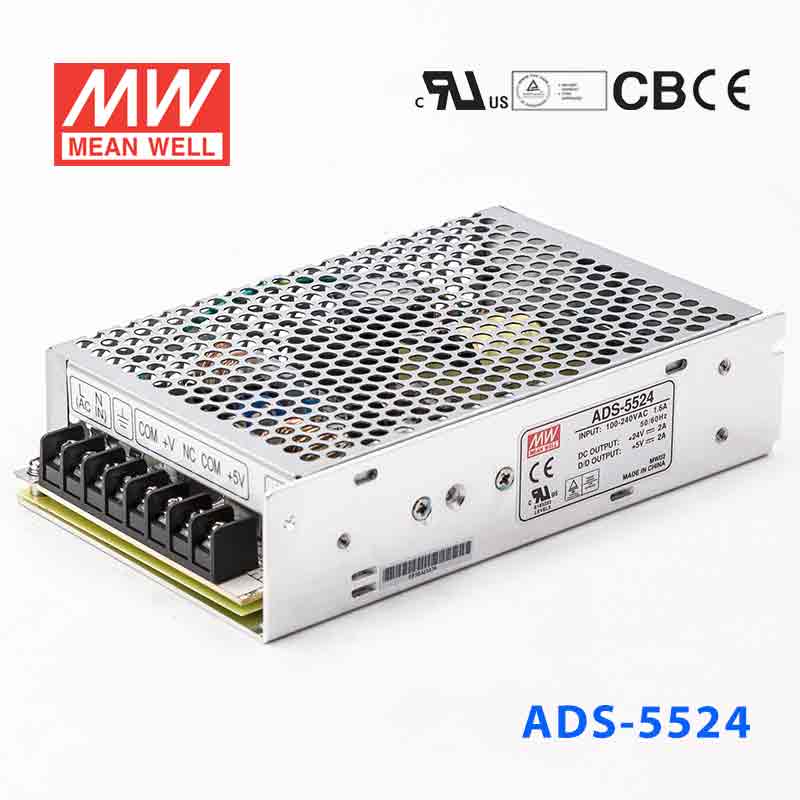

Mean Well ADS-5524 Power Supply58W 24V 2A - 5V Output
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ADS-5524 Power Supply58W 24V 2A - 5V Output
The ADS is a 155W Mean Well. power converter. and an input range of 88~264VAC.
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesADS Series
-
Power Rating58 Watt
-
Output Voltage24 Volt
-
Rated Current2 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.26 lb
::specification::
Frequently Asked Questions
What is the ADS-5524 typically used for?
The Mean Well ADS-5524 is typically used in smaller 24V DC systems that need a main 24V output and an auxiliary 5V output. With 58W of rated power and 2A on the main 24V output, it fits lighter-duty security, control, and backup-power applications that do not require the capacity of a 155W-class supply.
Is the ADS-5524 a better fit for modest 24V loads than the ADS-15524?
Yes, if the load is relatively small. The ADS-5524 provides 24V at 2A and 58W, while the ADS-15524 provides 24V at 5.8A and 154.2W. That makes the ADS-5524 a more appropriate fit when you need the same 24V output class without the larger power capacity.
Can the ADS-5524 be useful in compact systems that need both 24V and 5V outputs?
Yes. The ADS-5524 is suited to lighter-duty mixed-voltage applications where the main equipment needs 24V DC and supporting electronics benefit from a separate 5V output. That dual-output format can make it more flexible than a single-output 24V unit in smaller systems.
Will the ADS-5524 operate from common 120V and 240V AC mains?
Yes. The specified AC input range is 88-264VAC, so the ADS-5524 can run from common 120V and 240V mains supplies within that range. That helps keep deployments flexible across different site power standards.
Is the ADS-5524 intended for exposed outdoor installation?
The current product information does not list a waterproof IP rating, so the ADS-5524 should be installed indoors or inside a suitable protective enclosure rather than in direct outdoor exposure. Its listed working temperature is -10°C to +60°C, but the installation still needs the right environmental protection.
How does the ADS-5524 compare with other ADS series models?
The ADS-5524 is the lower-power 24V option in this family, delivering 58W at 24V and 2A. The ADS-15524 provides much higher 24V capacity at 154.2W and 5.8A, while the ADS-5512, ADS-15512, and ADS-15548 cover 12V and 48V output classes. The best choice depends on your required voltage and how much output margin your load needs.
