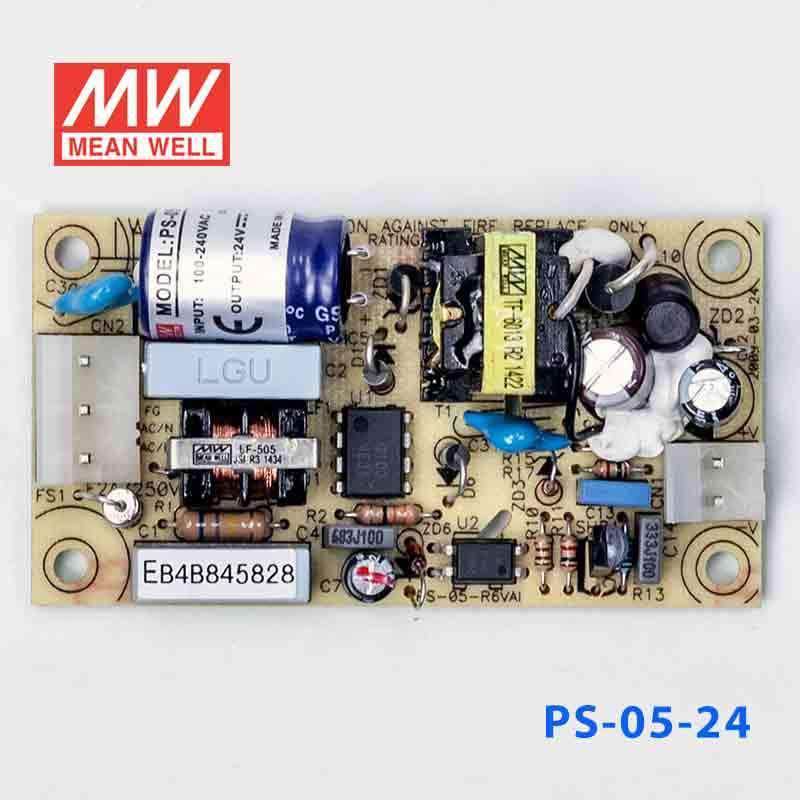

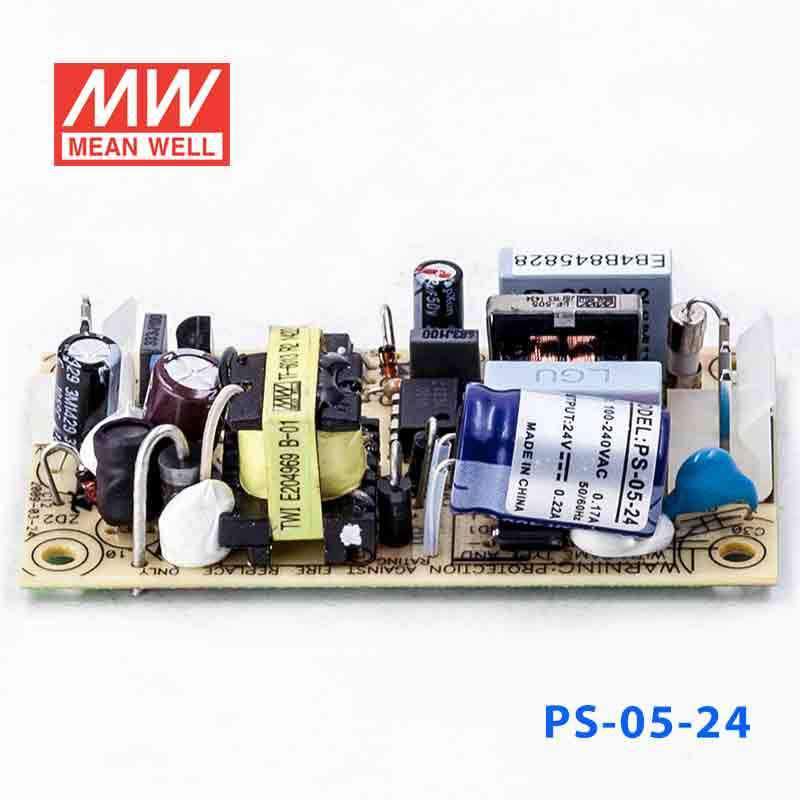

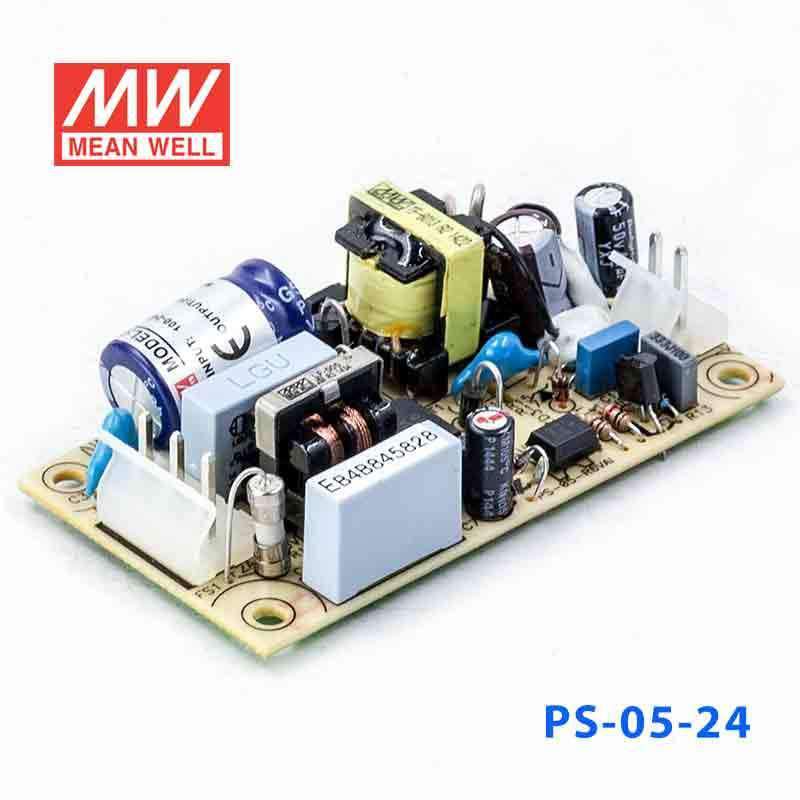

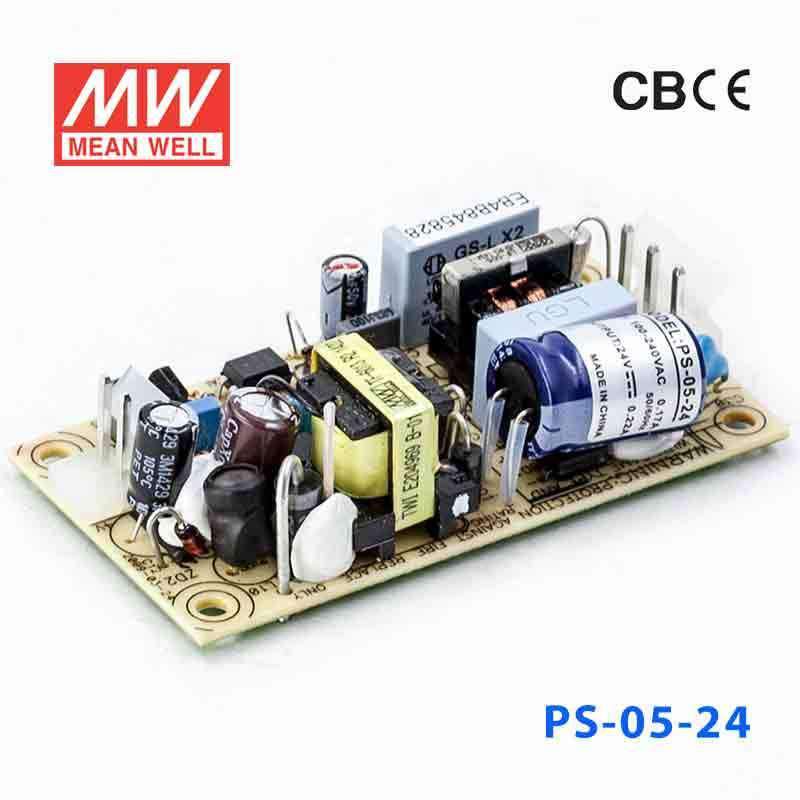

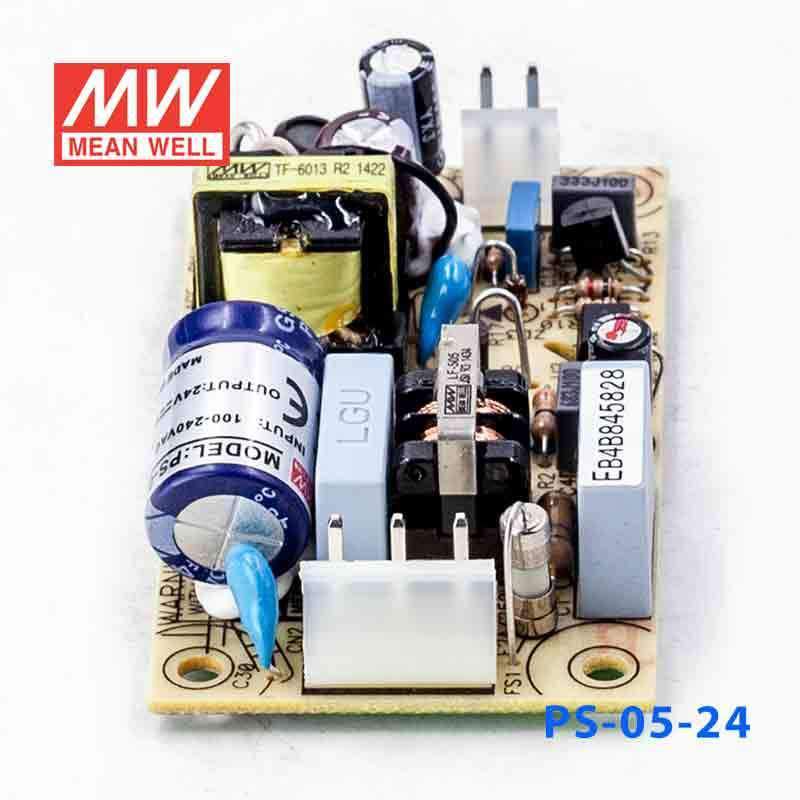

Mean Well PS-05-24 Power Supply 5W 24V 220mA
The PS-05 is a 5W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: IEC60950-1 CB
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesPS Series
-
Power Rating5.28 Watt
-
Output Voltage24 Volt
-
Rated Current0.22 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length2.95 in
-
Width1.57 in
-
Height0.79 in
-
Weight0.11 lb
::specification::
Frequently Asked Questions
Can I use the PS-05-24 for a small 24V industrial sensor or transmitter?
Yes, this model is designed for constant-voltage 24V output and can support low-power industrial or automation loads that stay within 5.28W and 0.22A. It is better suited to a single small 24V device or similarly light control load than to multi-device circuits.
Is the PS-05-24 suitable for a compact 24V PLC or control interface module?
It can be a fit for a compact 24V control or interface module if that device's draw does not exceed 0.22A at 24V. With 5.28W total output capacity, it is intended for light-duty embedded and automation electronics rather than higher-load control hardware.
Can this 24V power supply run a small embedded automation board?
Yes, if the board requires a regulated 24V constant-voltage input and its total demand stays under 5.28W and 0.22A. That makes it appropriate for low-power embedded control tasks where the load is modest and stable.
Would the PS-05-24 work for a low-current 24V relay or signaling application?
It can work for low-current 24V relay, signaling, or interface uses when the total load remains within 24V, 0.22A, and 5.28W. For anything beyond that range, a higher-capacity 24V model in the series would be the better match.
Is the PS-05-24 rated for outdoor or harsh-environment use?
The listed specs provide an operating temperature range of -10°C to +60°C, but no IP rating is provided. Based on the published data alone, it is suitable only for environments that stay within that temperature range, and outdoor or exposed-condition suitability is not established.
How does the PS-05-24 compare with the other PS-05 power supplies?
Within the PS-05 family, the PS-05-5 is 5W, 5V, 1A; the PS-05-12 is 5.4W, 12V, 0.45A; the PS-05-15 is 5.25W, 15V, 0.35A; the PS-05-24 is 5.28W, 24V, 0.22A; and the PS-05-48 is 5.28W, 48V, 0.11A. The main difference across these sibling models is the output voltage and corresponding output current within the same compact 5W class.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PS-05 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PS-05-5 Power Supply 5W 5V 1A | 5W | 5V | 1A | Indoor | $7.18 | View |
| Mean Well PS-05-48 Power Supply 5W 48V 110mA | 5.28W | 48V | 0.11A | Indoor | $7.21 | View |
| Mean Well PS-05-15 Power Supply 5W 15V 350mA | 5.25W | 15V | 0.35A | Indoor | $7.21 | View |
| Mean Well PS-05-12 Power Supply 5W 12V 450mA | 5.4W | 12V | 0.45A | Indoor | $7.18 | View |
