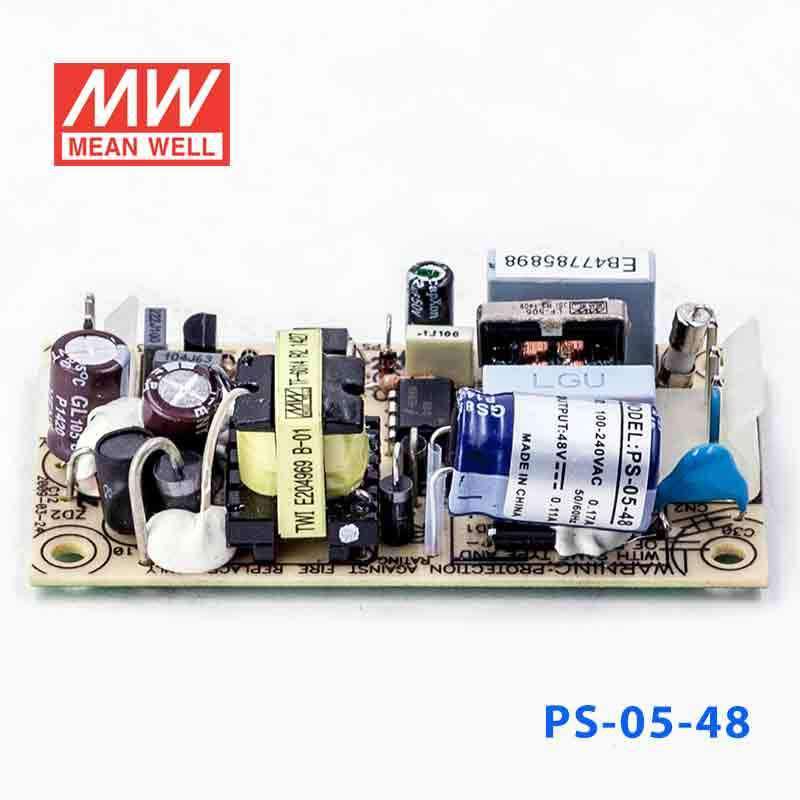

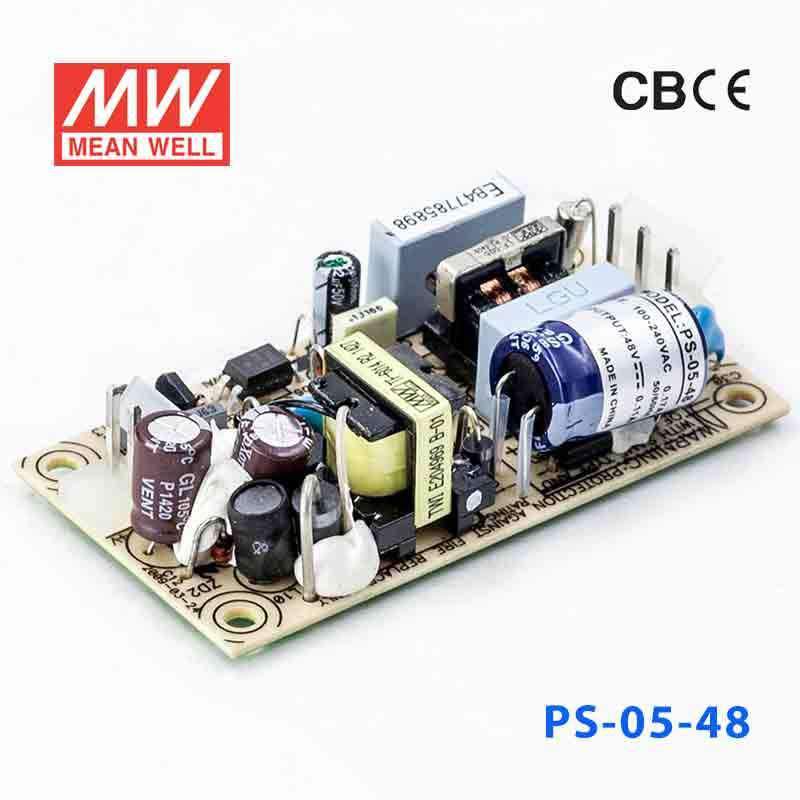

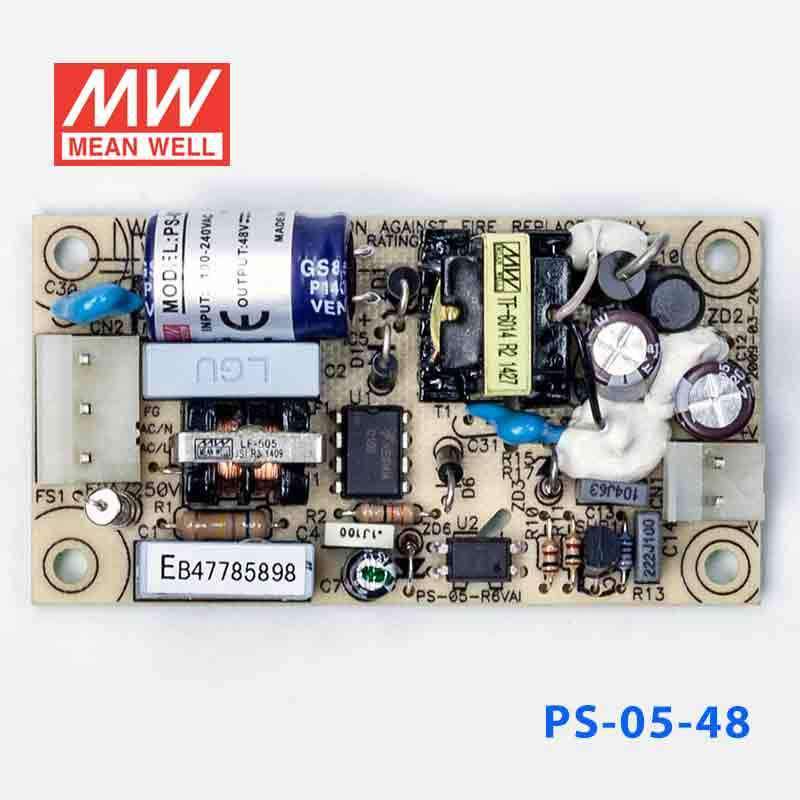

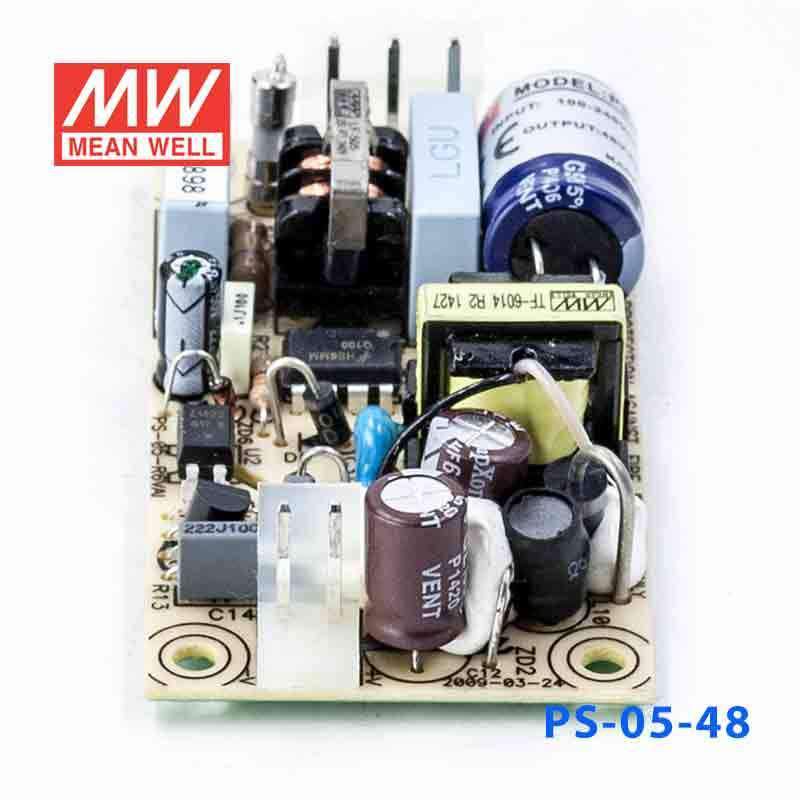

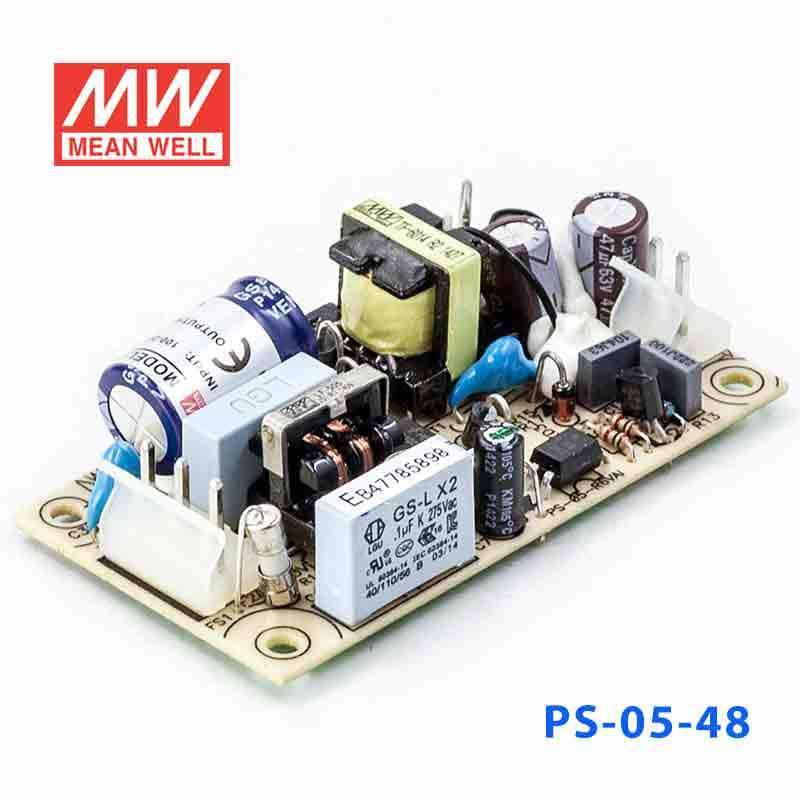

Mean Well PS-05-48 Power Supply 5W 48V 110mA
Overview
PS-05-48 is the 48V output model of this series: rated current 0.11A, rated power 5.28W, typical efficiency 76%.
Features
- Universal AC input / Full range
- Low leakage current <0.5mA
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- 100% full load burn-in test
- Fix switching frequency at 67KHz
- Low cost
- High reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- RATED CURRENT
- 0.11A
- CURRENT RANGE
- 0 ~ 0.125A
- RATED POWER
- 5.28W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 1000ms, 20ms
- HOLD UP TIME(Typ.)
- 100ms at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 76%
- AC CURRENT (Typ.)
- 0.15A/115VAC 0.07A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 30A/230VAC
- LEAKAGE CURRENT
- <0.5mA / 240VAC
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Hiccup mode, recovery automatically after fault condition is removed
- OVER VOLTAGE
- 55.2 ~ 64.8V
- OVER TEMPERATURE
- Hiccup mode, recovery automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- TUV BS EN/EN62368-1,EAC TP TC 004 approved, IEC62368-1 CB approved by TUV
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMI CONDUCTION & RADIATION
- Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
- HARMONIC CURRENT
- Compliance to BS EN/EN61000-3-2,-3
- EMS IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 6873.2K hrs min. Telcordia SR-332 (Bellcore) ; 1271.1K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 75*40*20mm (L*W*H)
- PACKING
- 0.05Kg; 120pcs/6.25Kg/0.56CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the PS-05-48 for a low-power 48V industrial control circuit?
Yes, this unit provides constant-voltage 48V output for low-power control loads that stay within 5.28W and 0.11A. It is intended for light 48V electronics rather than equipment with higher startup or continuous current demand.
Is the PS-05-48 suitable for a small 48V telecom or IT module?
It can be suitable for a small 48V telecom or IT device if that load requires constant 48V and does not exceed 0.11A. With 5.28W available, it fits low-current electronics better than multi-module or higher-draw systems.
Would this work for a compact 48V embedded controller or monitoring device?
Yes, provided the controller or monitoring device is designed for 48V constant-voltage input and remains within 5.28W total draw. The 0.11A output limit makes it appropriate for very low-current embedded applications.
Can the PS-05-48 power a single 48V field device in an automation panel?
It can power a single low-power 48V field device when the device stays under 0.11A and 5.28W. That makes it better for small instrumentation or interface loads than for larger panel devices.
Can I use the PS-05-48 in outdoor or washdown conditions?
The specified operating range is -10°C to +60°C, but no IP rating is listed in the product data. Because of that, the published specs do not establish suitability for outdoor exposure, washdown, or other ingress-sensitive environments.
What are the differences between the PS-05-48 and the other PS-05 models?
In the PS-05 series, PS-05-5 is 5W at 5V and 1A, PS-05-12 is 5.4W at 12V and 0.45A, PS-05-15 is 5.25W at 15V and 0.35A, PS-05-24 is 5.28W at 24V and 0.22A, and PS-05-48 is 5.28W at 48V and 0.11A. The family keeps similar low-power form factors while changing output voltage and the corresponding available current.
