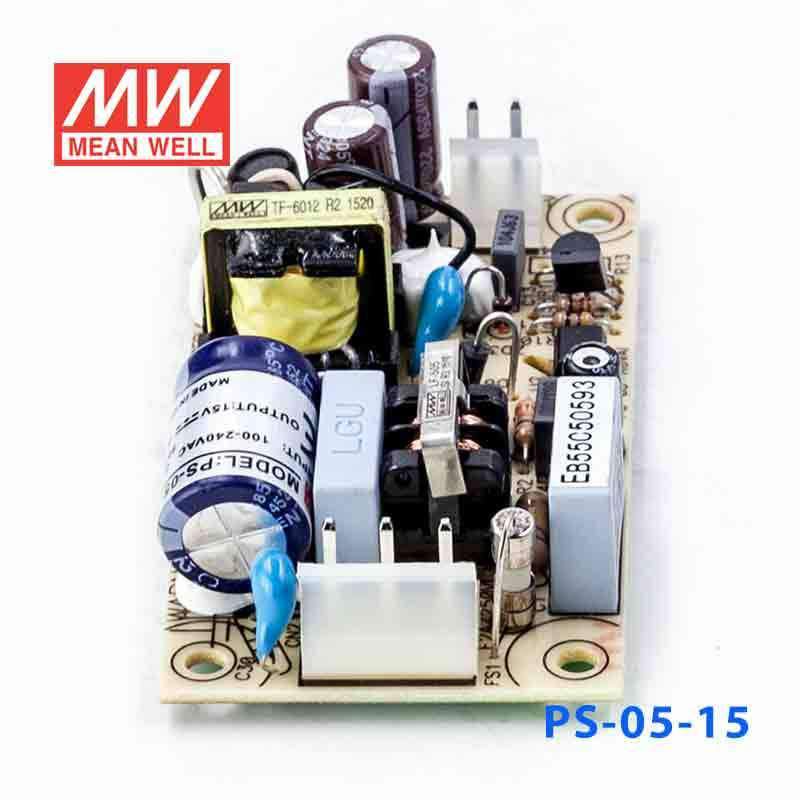

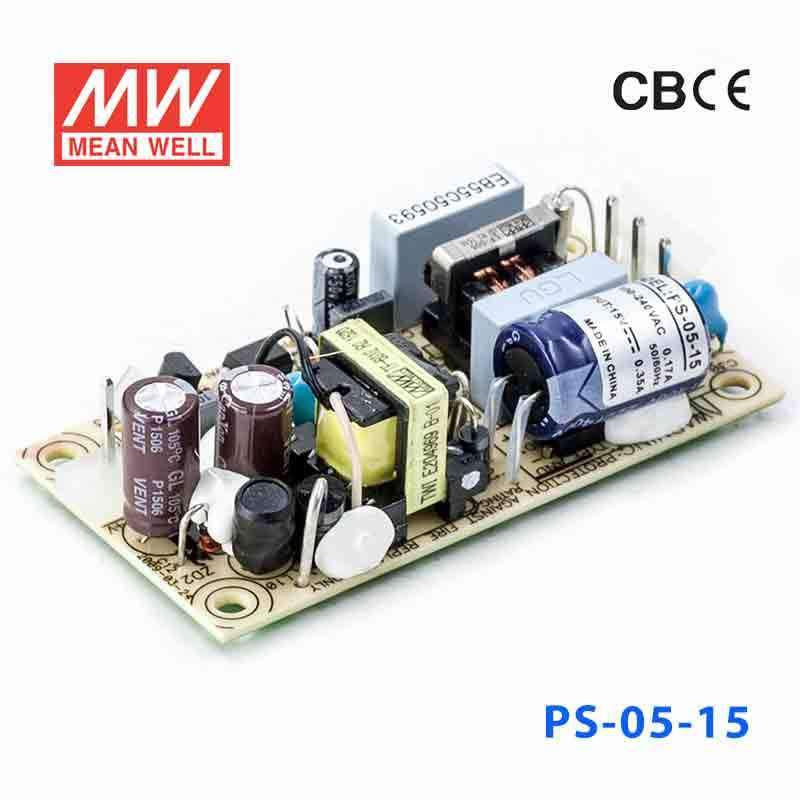

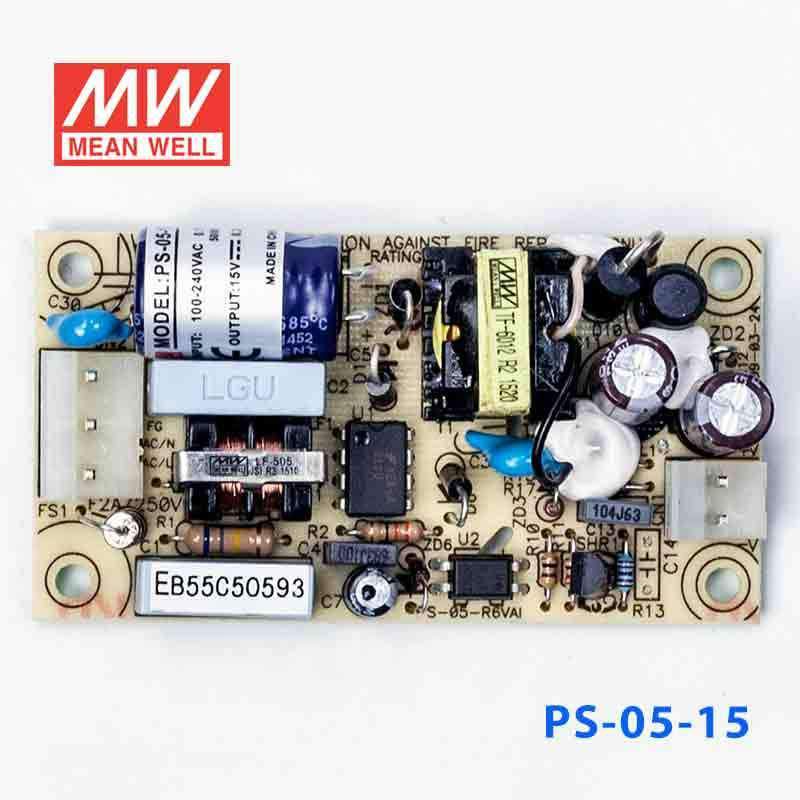

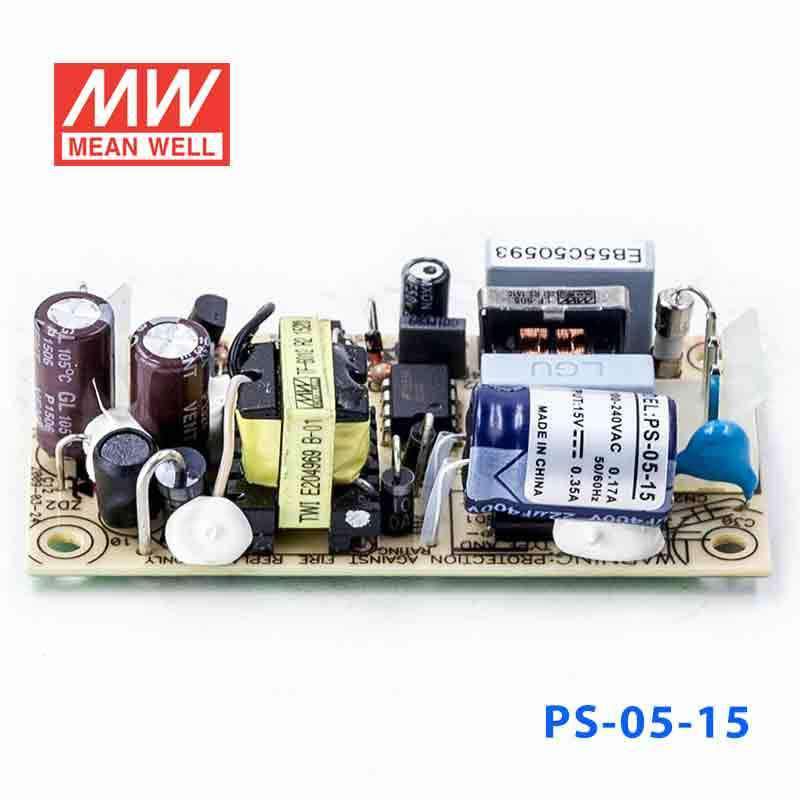

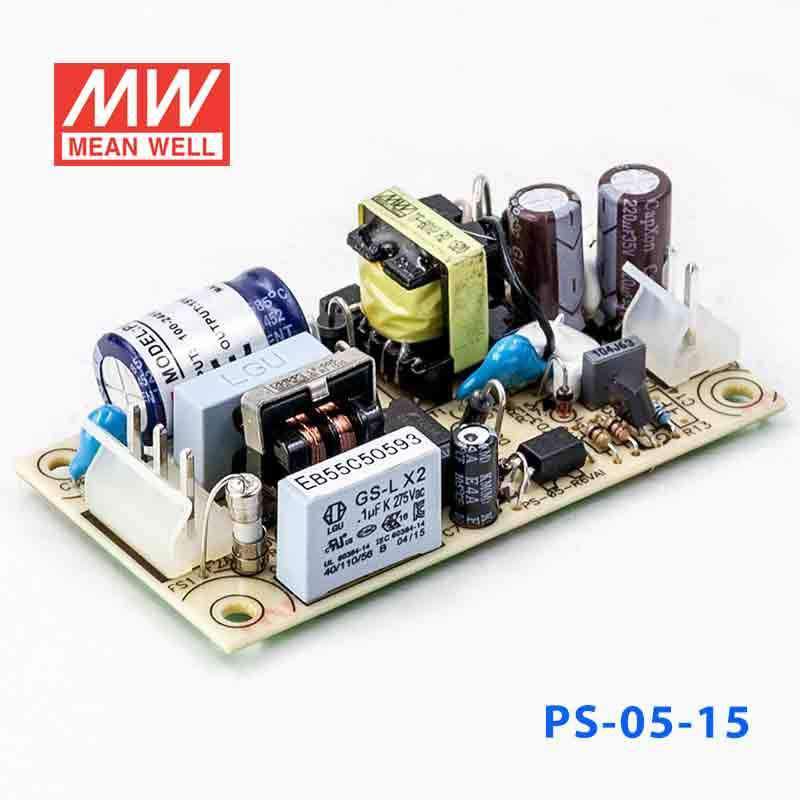

Mean Well PS-05-15 Power Supply 5W 15V 350mA
Overview
PS-05-15 is the 15V output model of this series: rated current 0.35A, rated power 5.25W, typical efficiency 75%.
Features
- Universal AC input / Full range
- Low leakage current <0.5mA
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- 100% full load burn-in test
- Fix switching frequency at 67KHz
- Low cost
- High reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V
- RATED CURRENT
- 0.35A
- CURRENT RANGE
- 0 ~ 0.4A
- RATED POWER
- 5.25W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 1000ms, 20ms
- HOLD UP TIME(Typ.)
- 100ms at full load
INPUT
- VOLTAGE RANGE
- 85 ~ 264VAC 120 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 75%
- AC CURRENT (Typ.)
- 0.15A/115VAC 0.07A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 30A/230VAC
- LEAKAGE CURRENT
- <0.5mA / 240VAC
PROTECTION
- OVERLOAD
- Above 105% rated output power Protection type : Hiccup mode, recovery automatically after fault condition is removed
- OVER VOLTAGE
- 17.2 ~ 20.2V
- OVER TEMPERATURE
- Hiccup mode, recovery automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -10 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.05%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- TUV BS EN/EN62368-1,EAC TP TC 004 approved, IEC62368-1 CB approved by TUV
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMI CONDUCTION & RADIATION
- Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
- HARMONIC CURRENT
- Compliance to BS EN/EN61000-3-2,-3
- EMS IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 6873.2K hrs min. Telcordia SR-332 (Bellcore) ; 1271.1K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 75*40*20mm (L*W*H)
- PACKING
- 0.05Kg; 120pcs/6.25Kg/0.56CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the PS-05-15 for a 15V industrial sensor or control module?
Yes, this model provides a constant voltage 15V output rated for 0.35A and 5.25W. It is suitable for low-power 15V industrial sensors, control modules, and similar embedded or automation electronics within that load range.
Is the PS-05-15 appropriate for low-power 15V analog or instrumentation circuits?
Yes, the regulated 15V output can support low-power analog or instrumentation circuits that stay within 0.35A and 5.25W. It is a better fit for small 15V electronics than for higher-current 15V loads.
Can this power supply be used in OEM equipment sold into different AC power regions?
Yes, the specified input range is 85-264VAC. That wide input range supports low-power 15V equipment used across different AC supply conditions without changing the power supply model.
How does the PS-05-15 compare with the other PS-05 voltage options?
Within the listed PS-05 models, PS-05-5 is 5W at 5V and 1A, PS-05-12 is 5.4W at 12V and 0.45A, PS-05-15 is 5.25W at 15V and 0.35A, PS-05-24 is 5.28W at 24V and 0.22A, and PS-05-48 is 5.28W at 48V and 0.11A. The series offers similar low-power capacity with different fixed output voltages and matching current ratings.
Can the PS-05-15 be used in colder or warmer indoor equipment spaces?
The rated operating temperature range is -10°C to +60°C. No IP rating is shown in the provided specs, so the temperature range is defined but outdoor or water-exposed use is not specified.
