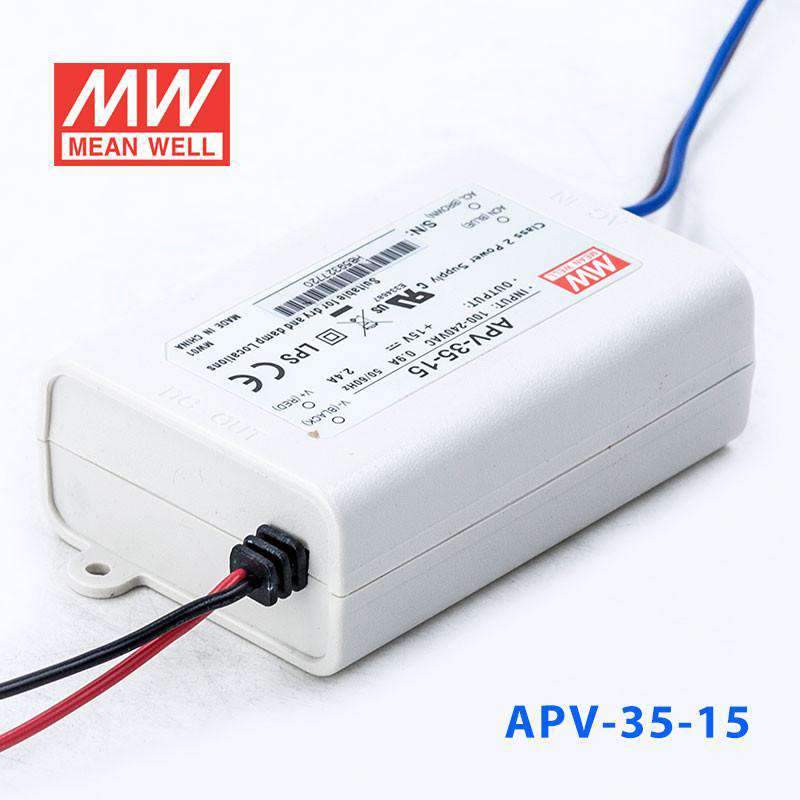

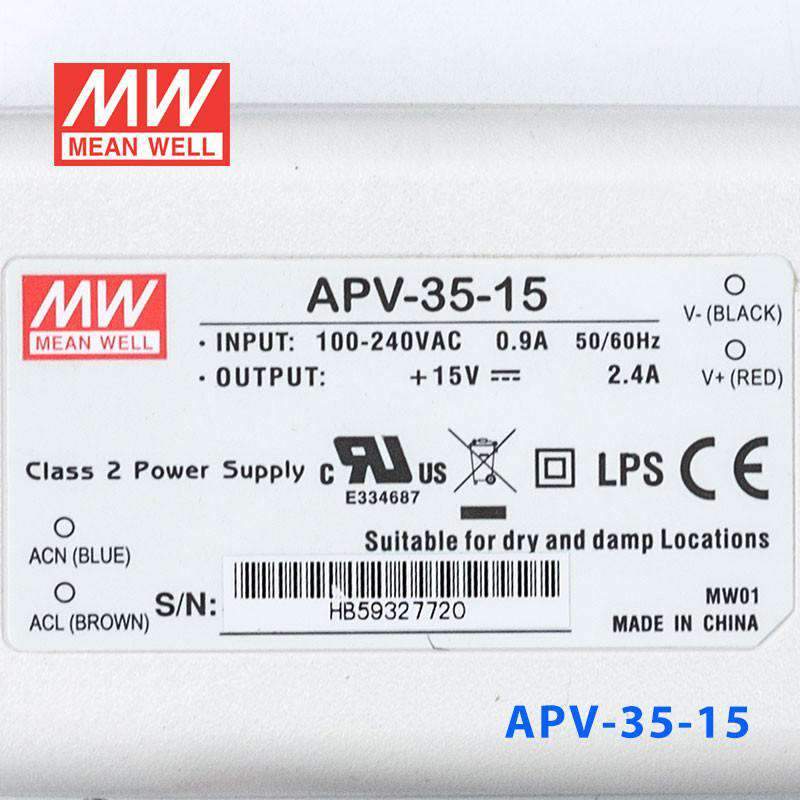

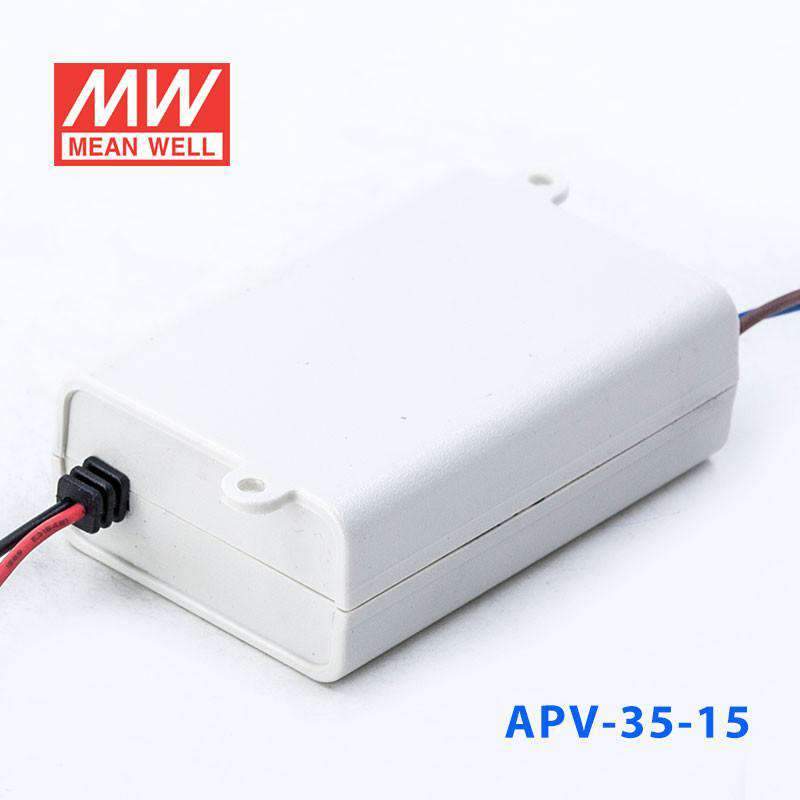

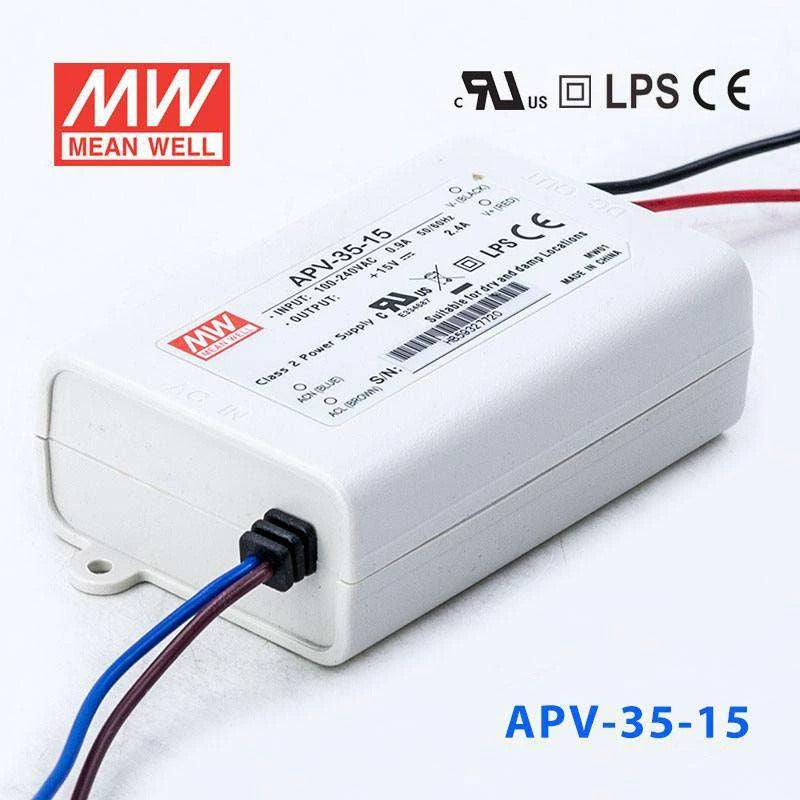

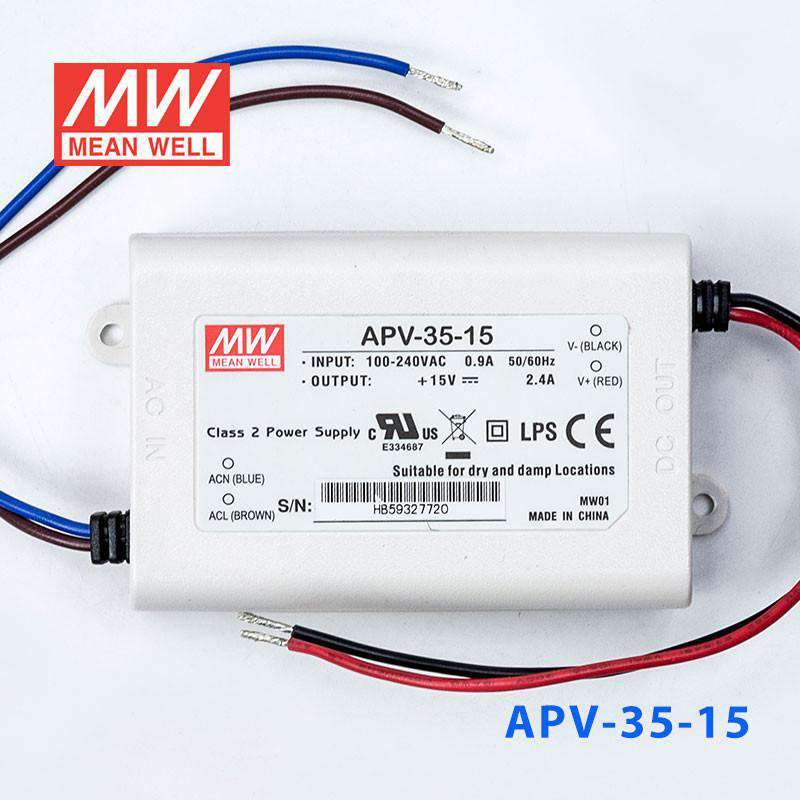

Mean Well APV-35-15 Power Supply 36W 15V
The APV-35 is a 35W Mean Well. power converter. and an input range of 90~264VAC.
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: UL8750 , CSA-C22.2 No. 250.0-13, IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating36 Watt
-
Output Voltage15 Volt
-
Rated Current2.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
What 15V LED lighting applications can the APV-35-15 support?
The APV-35-15 outputs 15V at 2.4A for a maximum of 36W. It suits longer 15V LED strip runs in commercial display lighting, 15V LED module arrays in signage back-boxes, and 15V LED luminaire panels where the total connected load is at or below 36W.
How does the APV-35-15 compare to the APV-25-15 and APV-16-15?
All three output 15V from 90–264VAC. The APV-16-15 provides 15W at 1A in a 77.0 × 40.0 × 29.0 mm housing. The APV-25-15 provides 25.2W at 1.68A in a 84.0 × 57.0 × 29.5 mm enclosure. The APV-35-15 provides 36W at 2.4A in the same 84.0 × 57.0 × 29.5 mm housing. Select based on total load wattage.
How long a 15V LED strip can the APV-35-15 support?
The APV-35-15 delivers 36W at 15V. At a strip rated 5 W/m, that supports up to 7.2 m. Divide 36W by your strip's rated power per meter to calculate your specific maximum, and check your strip's rated power per meter before specifying.
What operating temperature range does the APV-35-15 support?
The APV-35-15 operates from -30°C to +70°C, covering typical commercial and retail indoor environments. The IP42 rating means it should be mounted away from moisture, spray, or outdoor exposure, and enclosed if used in environments prone to condensation.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other APV-35 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well APV-35-5 Power Supply 25W 5V | 25W | 5V | 5A | Indoor | $13.03 | View |
| Mean Well APV-35-36 Power Supply 36W 36V | 36W | 36V | 1A | Indoor | $14.36 | View |
| Mean Well APV-35-24 Power Supply 36W 24V | 36W | 24V | 1.5A | Indoor | $13.51 | View |
| Mean Well APV-35-12 Power Supply 36W 12V | 36W | 12V | 3A | Indoor | $13.32 | View |
