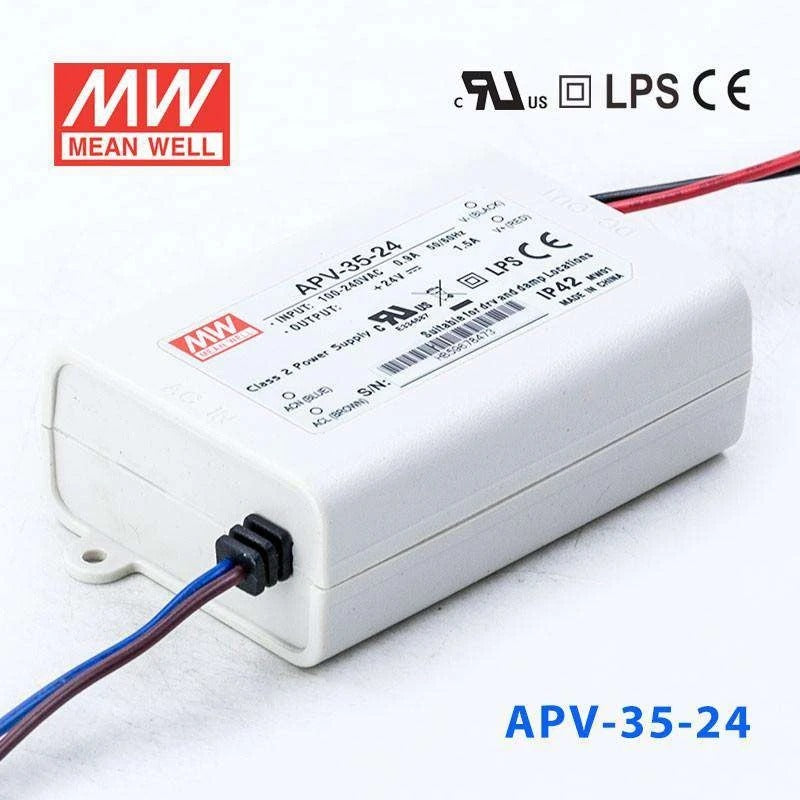

Mean Well APV-35-24 Power Supply 36W 24V
The APV-35 is a 35W Mean Well. power converter. and an input range of 90~264VAC.
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: UL8750 , CSA-C22.2 No. 250.0-13, IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating36 Watt
-
Output Voltage24 Volt
-
Rated Current1.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
What 24V LED lighting tasks is the APV-35-24 suited to at 36W?
The APV-35-24 outputs 24V at 1.5A for a maximum of 36W. It suits longer 24V LED strip runs in commercial shelving and retail display lighting, 24V LED panel fixtures, and mid-size backlit signage panels where the total load is at or below 36W.
How does the APV-35-24 compare to the APV-25-24 and APV-16-24 at 24V?
All three output 24V from 90–264VAC. The APV-16-24 provides 16.08W at 0.67A in a 77.0 × 40.0 × 29.0 mm housing. The APV-25-24 provides 25.2W at 1.05A in a 84.0 × 57.0 × 29.5 mm enclosure. The APV-35-24 provides 36W at 1.5A in the same 84.0 × 57.0 × 29.5 mm housing. Select based on wattage required.
How long a 24V LED strip can the APV-35-24 power?
The APV-35-24 delivers 36W at 24V. At a strip rated 14.4 W/m, that supports approximately 2.5 m. Divide 36W by your strip's rated power per meter to calculate your specific maximum, and check your strip's rated power per meter before specifying.
Is the APV-35-24 suitable for indoor wet-area LED lighting?
The APV-35-24 is rated IP42, offering protection against solid particles larger than 1 mm and dripping water only. It is not approved for splash, washdown, or outdoor environments without additional enclosure protection. Wet-area or outdoor 24V LED installations require a driver with IP65 or higher protection.
