Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

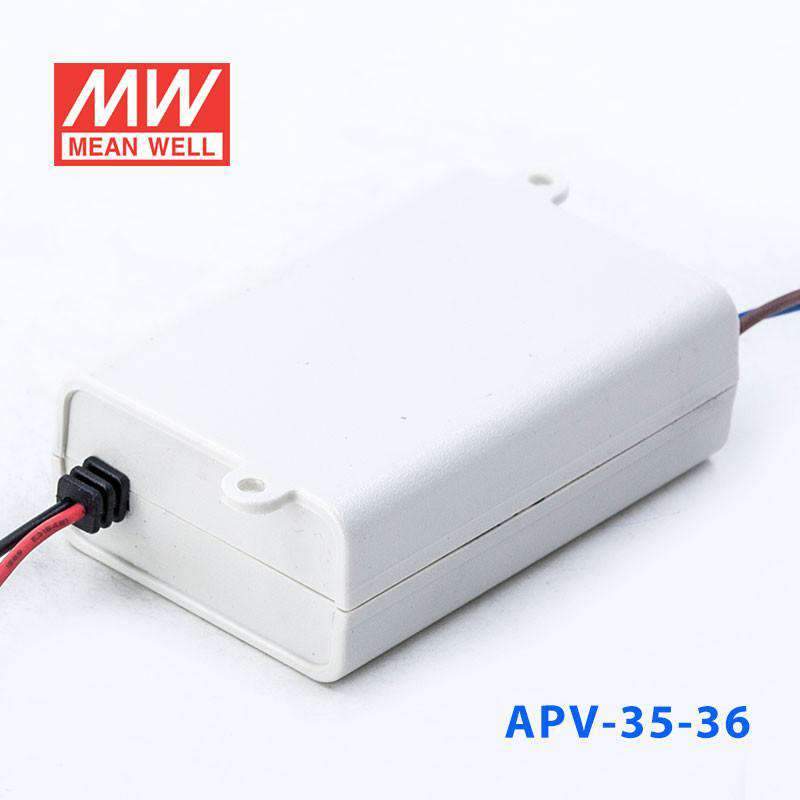

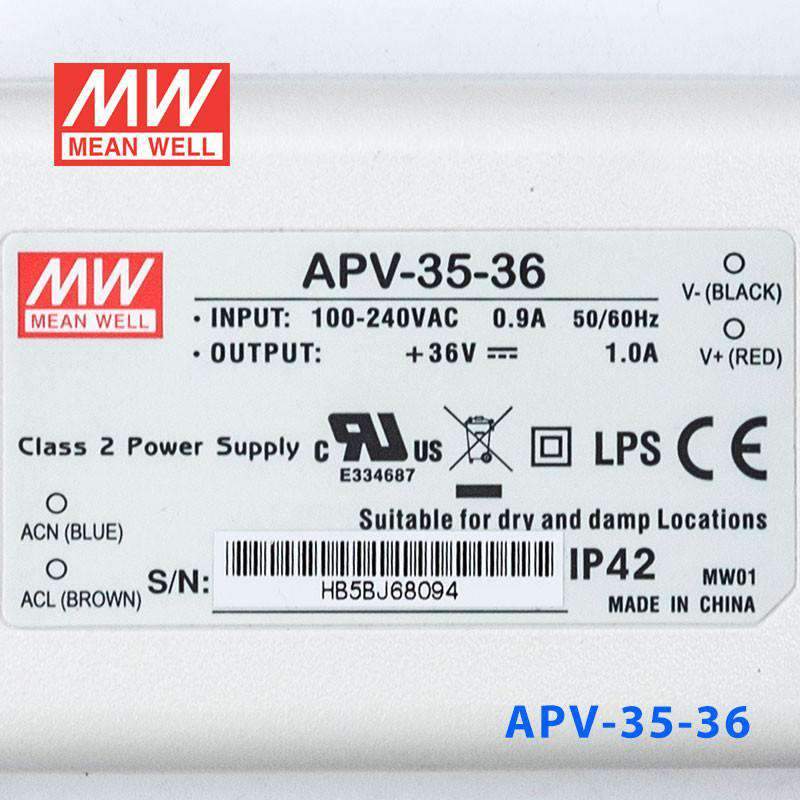

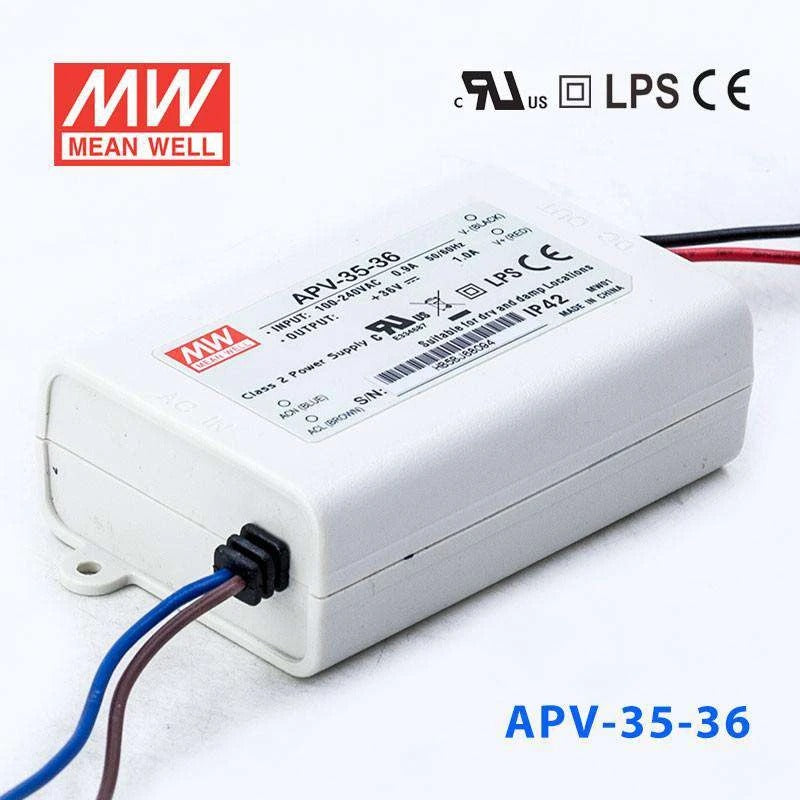

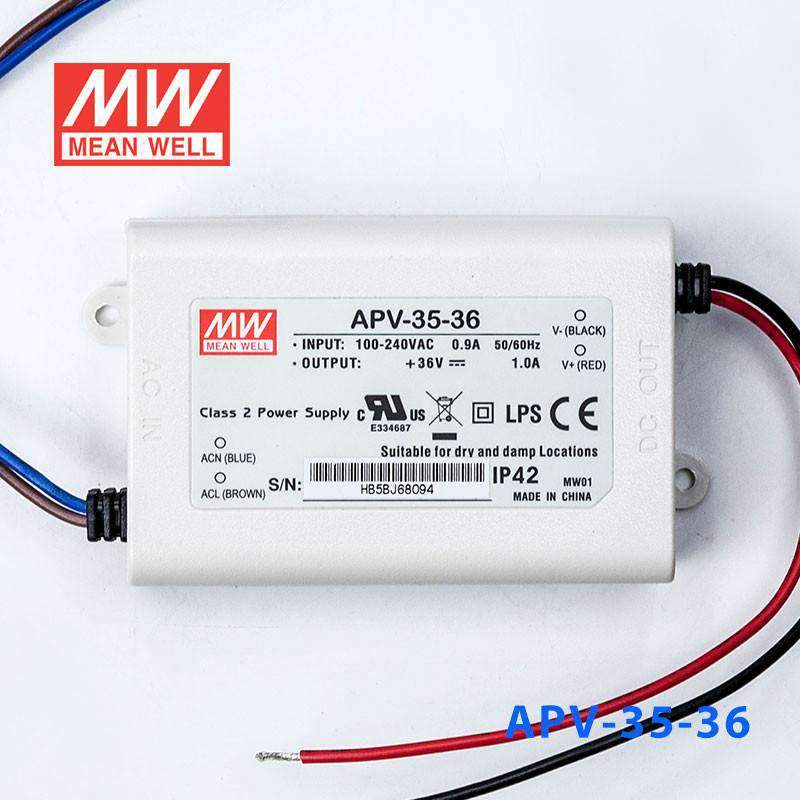

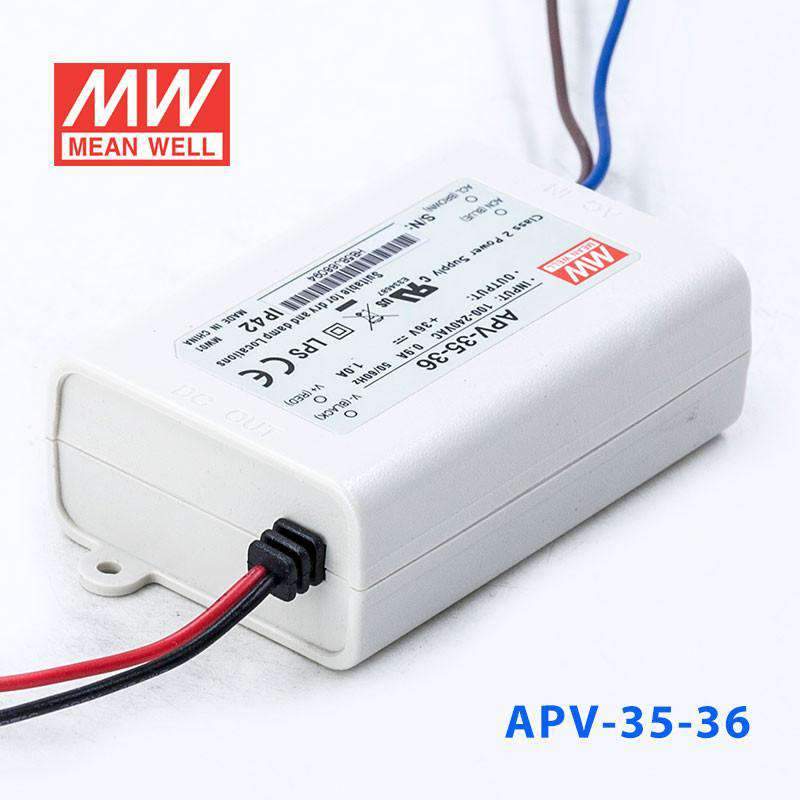

Mean Well APV-35-36 Power Supply 36W 36V
The APV-35 is a 35W Mean Well. power converter. and an input range of 90~264VAC.
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: UL8750 , CSA-C22.2 No. 250.0-13, IP42
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating36 Watt
-
Output Voltage36 Volt
-
Rated Current1 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.31 in
-
Width2.24 in
-
Height1.16 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
What LED applications require a 36V, 36W constant-voltage driver like the APV-35-36?
The APV-35-36 outputs 36V at 1A for a maximum of 36W. It suits 36V LED strip products, 36V LED module arrays used in specialty signage, and other LED fixtures rated for 36V nominal supply. Confirm your LED product's nominal voltage is 36V before selecting this driver.
How does the APV-35-36 compare to the APV-25-36 at 36V output?
Both output 36V from 90–264VAC in the same 84.0 × 57.0 × 29.5 mm housing. The APV-25-36 provides 25.2W at 0.7A. The APV-35-36 provides 36W at 1A — an increase of 10.8W and 0.3A at the same footprint. Choose based on the total wattage your 36V LED load requires.
How long a 36V LED strip can the APV-35-36 support?
The APV-35-36 delivers 36W at 36V. At a 36V strip rated 7.2 W/m, the maximum supported length is approximately 5 m. Divide 36W by your strip's rated power per meter to find your specific limit, and check your strip's rated power per meter before purchasing.
Is the APV-35-36 rated for outdoor mounting?
No. The APV-35-36 carries an IP42 rating, which covers protection against solid objects larger than 1 mm and dripping water at a limited angle only. For outdoor 36V LED signage or lighting, the driver must be installed inside a sealed IP65 or higher rated enclosure, or a driver with a higher native IP rating must be specified.
What certifications does the APV-35-36 carry?
The APV-35-36 holds CE, EAC, and UL certifications. CE covers European markets, EAC covers the Eurasian Economic Union, and UL covers North American market requirements. The driver accepts 90–264VAC input, so it operates on any standard global mains supply without voltage selection.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other APV-35 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well APV-35-5 Power Supply 25W 5V | 25W | 5V | 5A | Indoor | $13.03 | View |
| Mean Well APV-35-24 Power Supply 36W 24V | 36W | 24V | 1.5A | Indoor | $13.51 | View |
| Mean Well APV-35-15 Power Supply 36W 15V | 36W | 15V | 2.4A | Indoor | $13.69 | View |
| Mean Well APV-35-12 Power Supply 36W 12V | 36W | 12V | 3A | Indoor | $13.32 | View |
