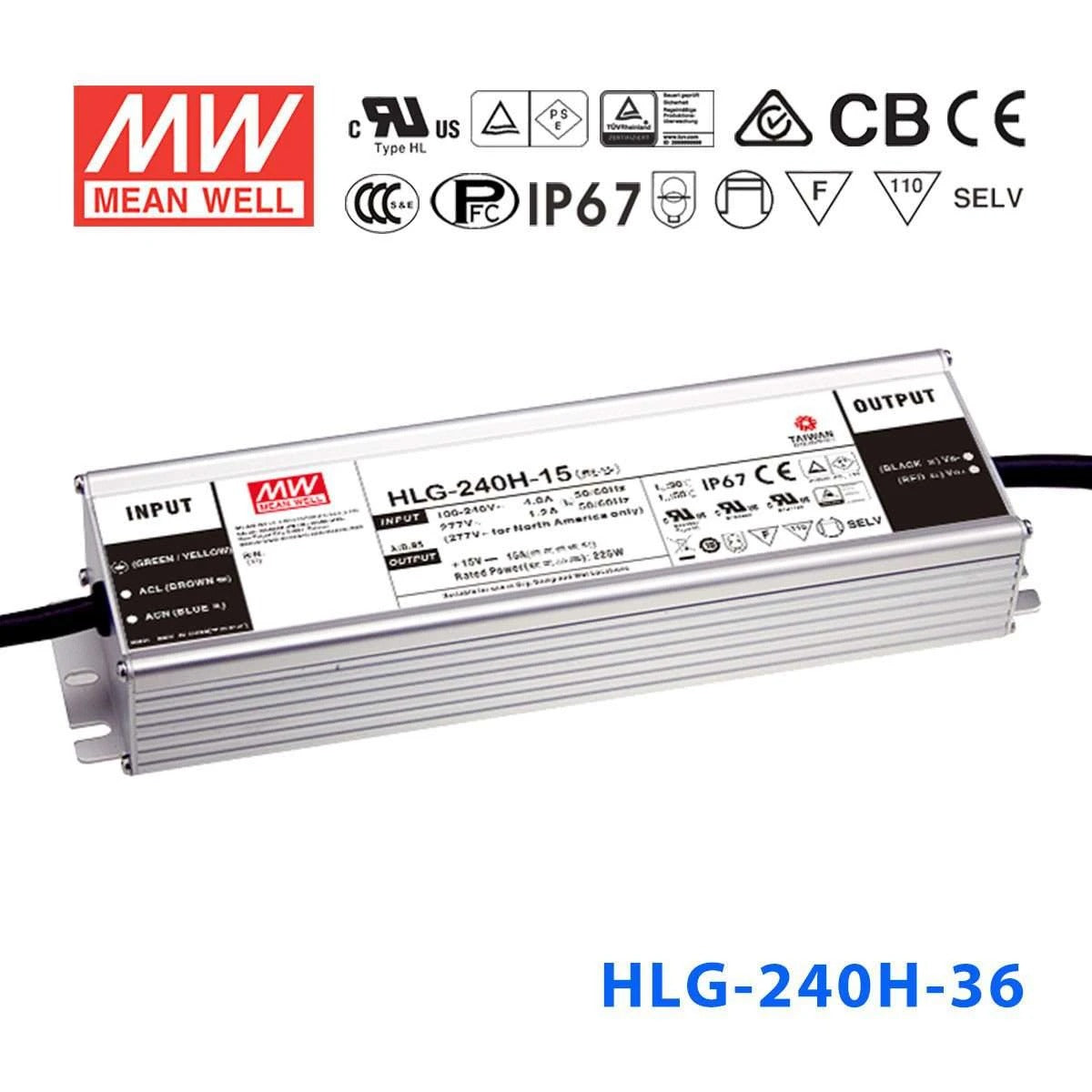

Mean Well HLG-240H-36 Power Supply 240W 36V
The HLG-240H is a 240W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating240 Watt
-
Output Voltage36 Volt
-
Rated Current6.7 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length9.61 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.87 lb
::specification::
Frequently Asked Questions
Can I use the HLG-240H-36 to power 36V LED panel lights in an outdoor installation?
Yes. The HLG-240H-36 delivers 240W at 36V (6.7A) with an IP67 waterproof rating, so it can reliably power 36V LED panels, troffers, or light engines mounted outdoors. The aluminium casing and -40°C to +90°C range handle harsh weather and temperature extremes.
Is the HLG-240H-36 suitable for 36V LED high-bay or industrial lighting?
Yes. At 240W and 36V, it provides enough power for industrial high-bay fixtures or warehouse lighting using 36V LED arrays. The IP67 rating protects against dust and water in factory or warehouse environments, and the 90-305VAC input handles varying industrial mains supplies.
Can the HLG-240H-36 drive 36V LED strips for outdoor architectural accent lighting?
Yes. With 240W at 36V output, it can support substantial runs of 36V LED strip for facade accents, bridge outlines, or perimeter lighting. The IP67 waterproof enclosure allows direct outdoor mounting without an additional weatherproof housing.
How many meters of 36V LED strip can the HLG-240H-36 power?
Divide 240W by the strip's power draw per meter. A 36V strip rated at 20W/m would allow 12 meters (240W / 20W per meter = 12m). Always check your strip's rated power per meter and keep the total load at or below 240W to avoid exceeding the driver's capacity.
Can the HLG-240H-36 be mounted in a fully exposed rooftop or pole-mounted enclosure?
Yes. Its IP67 rating provides complete dust-tightness and protection against temporary water immersion up to 1 meter, which handles direct rain, snow, and hose-down cleaning. The -40°C to +90°C operating temperature range covers most rooftop and pole-mounted conditions year-round.
What are the differences between the HLG-240H-36, 36A, 36AB, and 36B models?
All four share 240W / 36V / 6.7A core specs. The base HLG-240H-36 has fixed output and IP67 waterproof rating. The -36A adds output voltage/current adjustment via built-in potentiometer (IP65). The -36AB adds both adjustment and a 1-10V/PWM dimming input (IP65). The -36B adds dimming input only and retains the IP67 waterproof rating.
