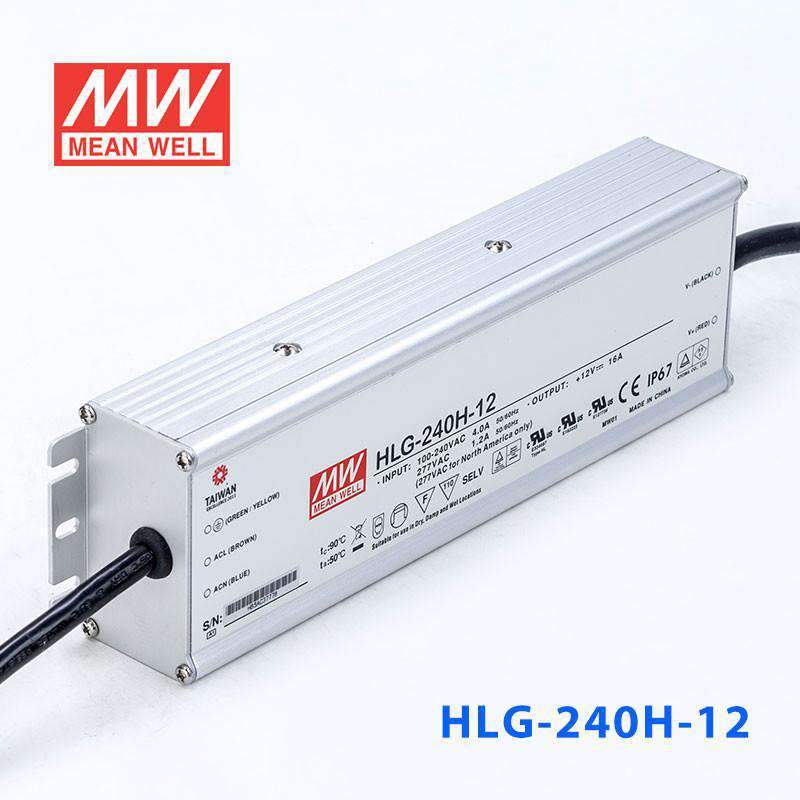

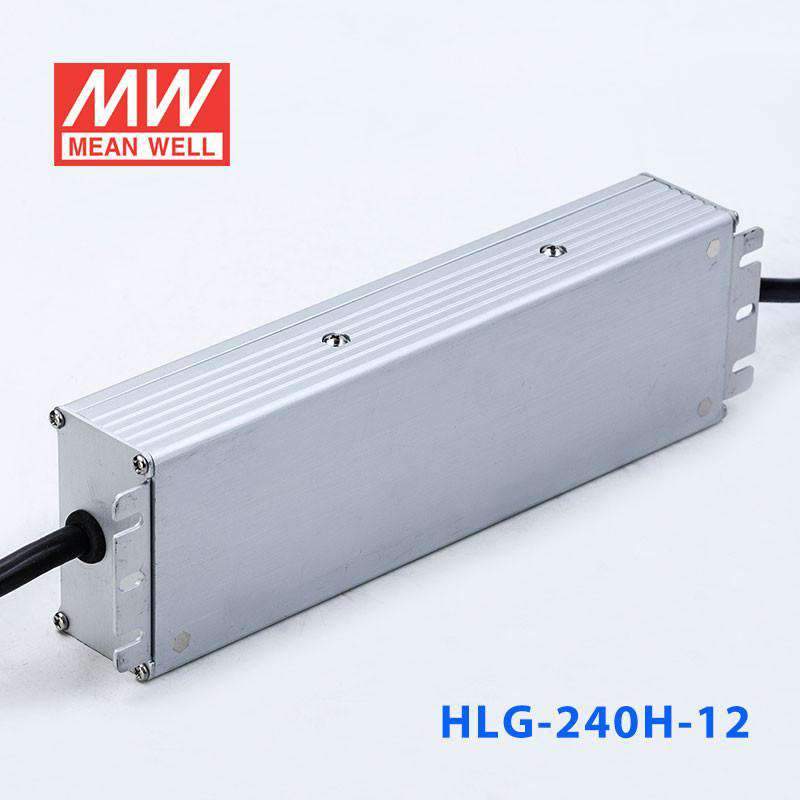

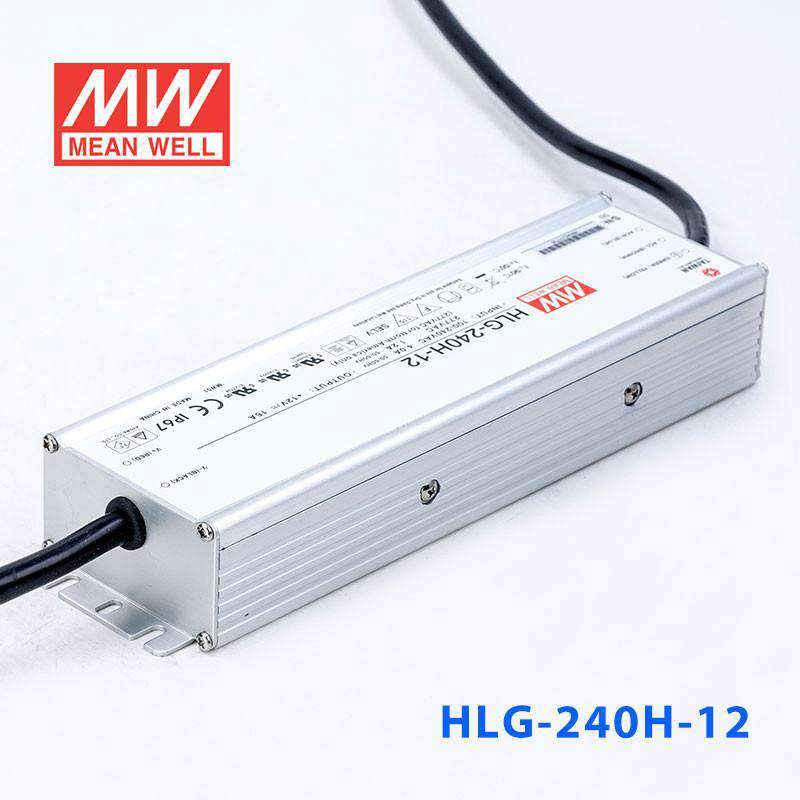

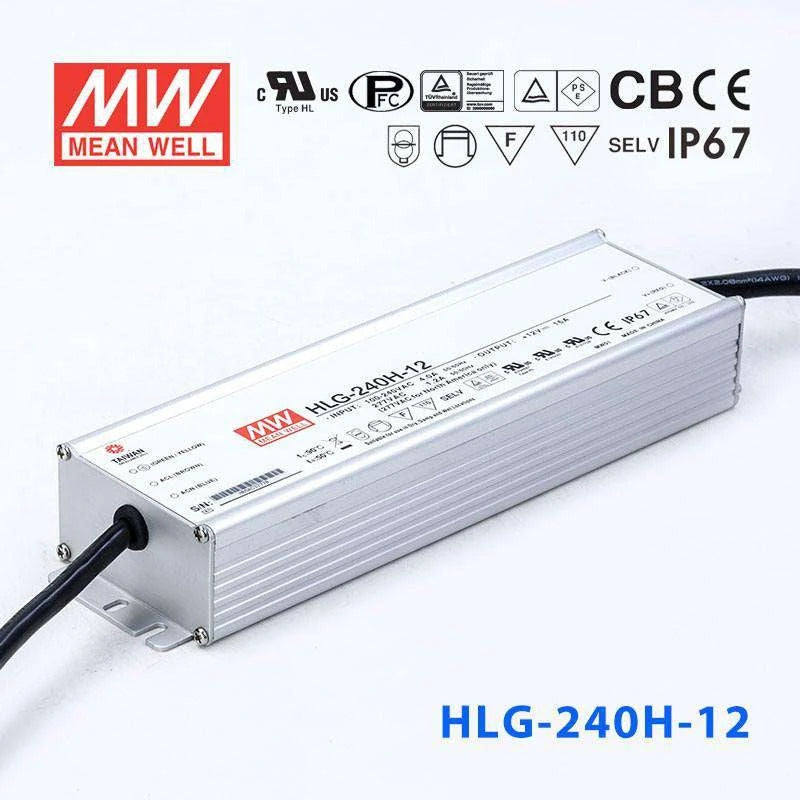

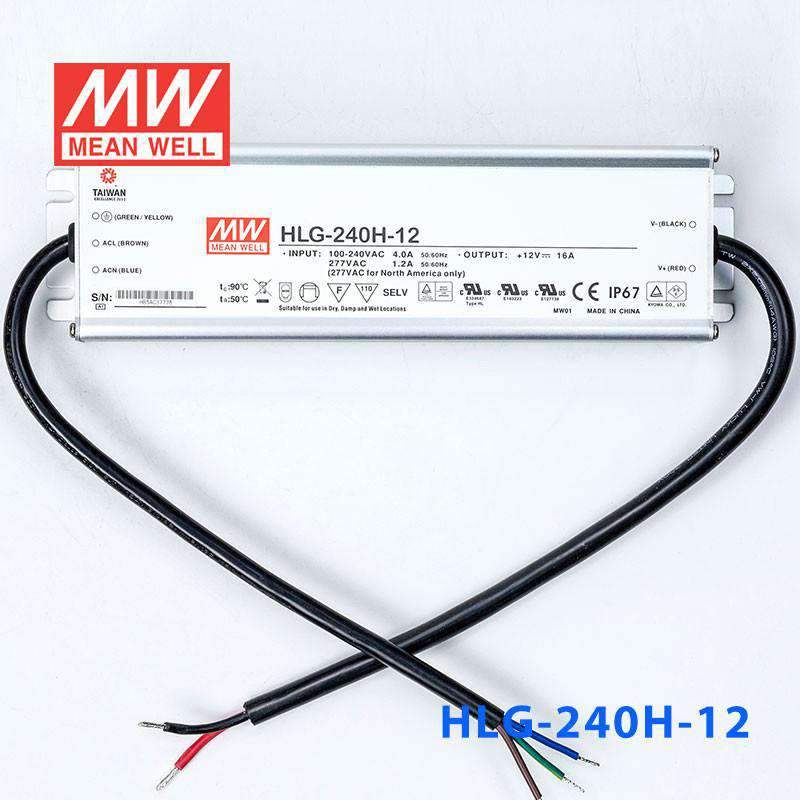

Mean Well HLG-240H-12 Power Supply 192W 12V

Yes. The HLG-240H-12 outputs 12V at up to 16A (192W) with an IP67 waterproof rating, making it well suited for extended 12V LED strip runs on building facades, perimeter lighting, or landscape installations exposed to rain and moisture.

Yes. With 192W at 12V output and a wide 90-305VAC input range, the HLG-240H-12 can drive 12V LED sign modules, channel letters, or light boxes. The IP67 rating makes it safe for outdoor sign cabinets where condensation or water ingress is a concern.

The HLG-240H-12 accepts 90-305VAC mains power, so it is designed for fixed AC-powered installations rather than 12V DC vehicle or marine battery systems. It is suitable for powering 12V LED light bars in stationary applications like workshops, garages, or docks where mains power is available.

Divide 192W by your strip's rated power per meter. For example, a 12V strip drawing 14.4W/m could run about 13.3 meters (192W / 14.4W per meter). Always check your strip's rated power per meter and keep total load at or below 192W to avoid overloading the driver.

Yes. The IP67 waterproof rating protects against dust and temporary water immersion up to 1 meter. It can be mounted directly in outdoor enclosures, wet-location junction boxes, or even open-air mounting in rain-exposed locations.

All four share the same 192W / 12V / 16A core specs and 244.2 x 68.0 x 38.8 mm dimensions. The base HLG-240H-12 has no adjustment or dimming and is IP67. The -12A adds a built-in potentiometer for output adjustment and is IP65. The -12AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -12B adds dimming input only and retains IP67.
