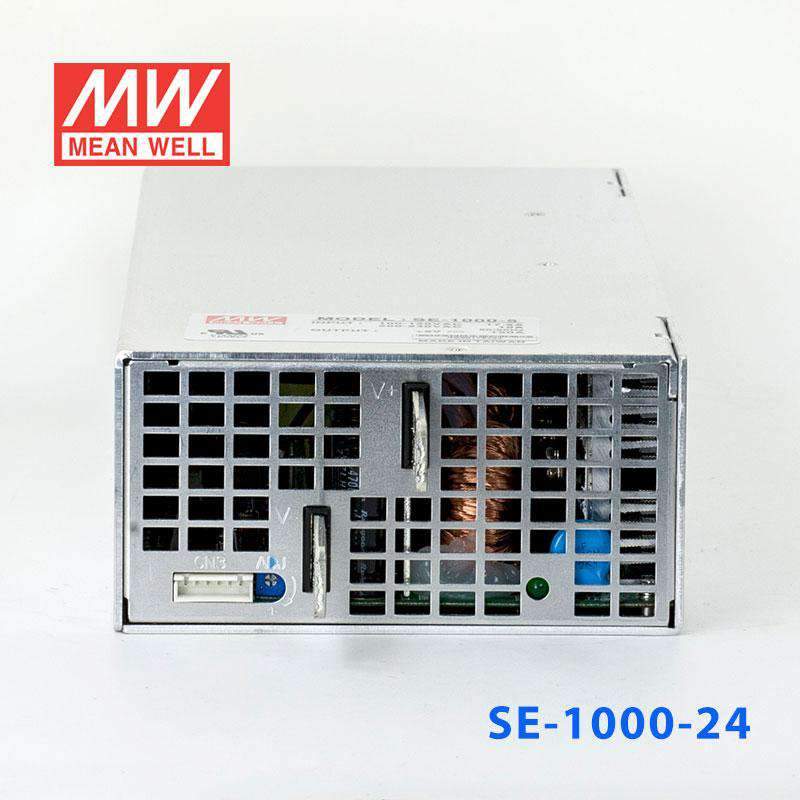

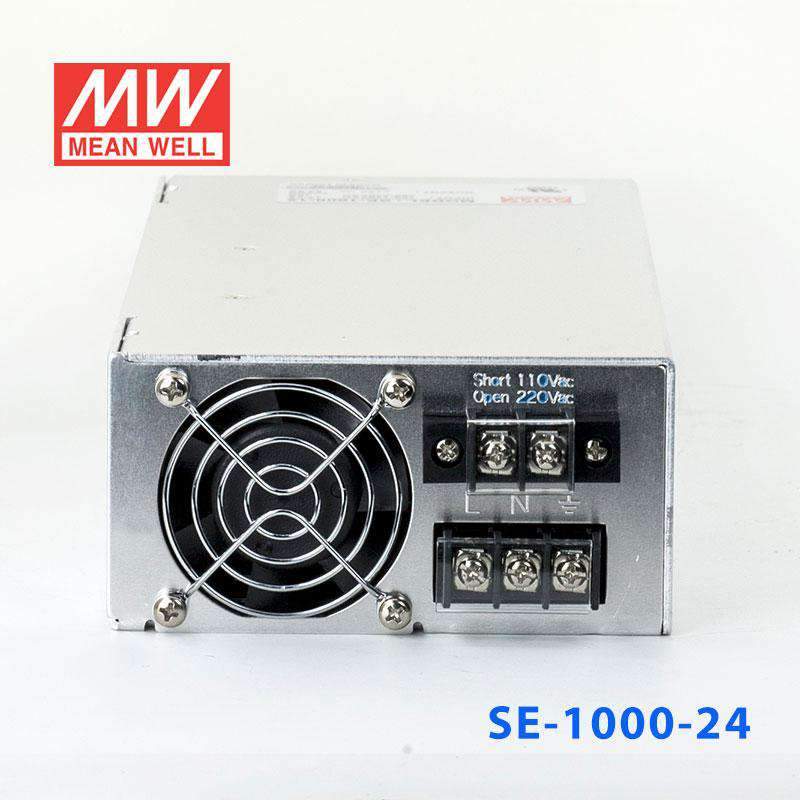

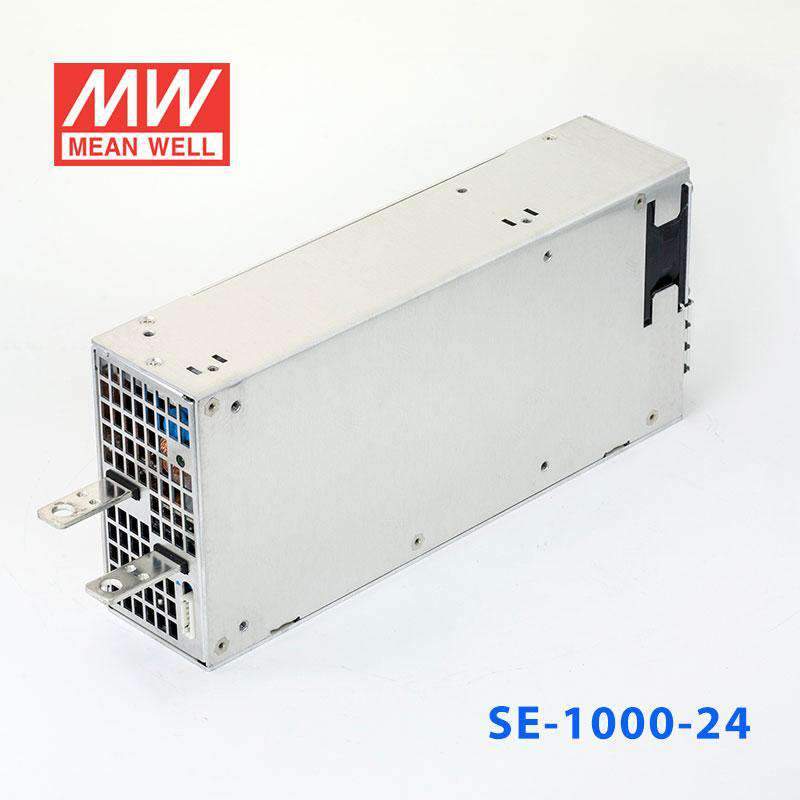

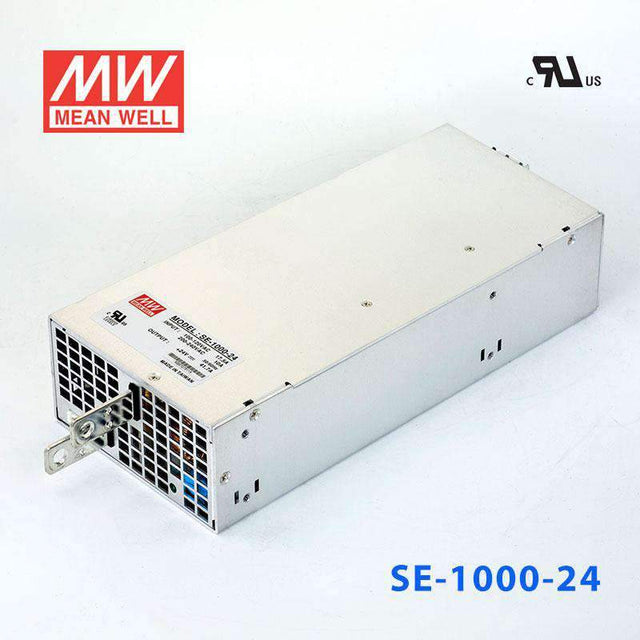

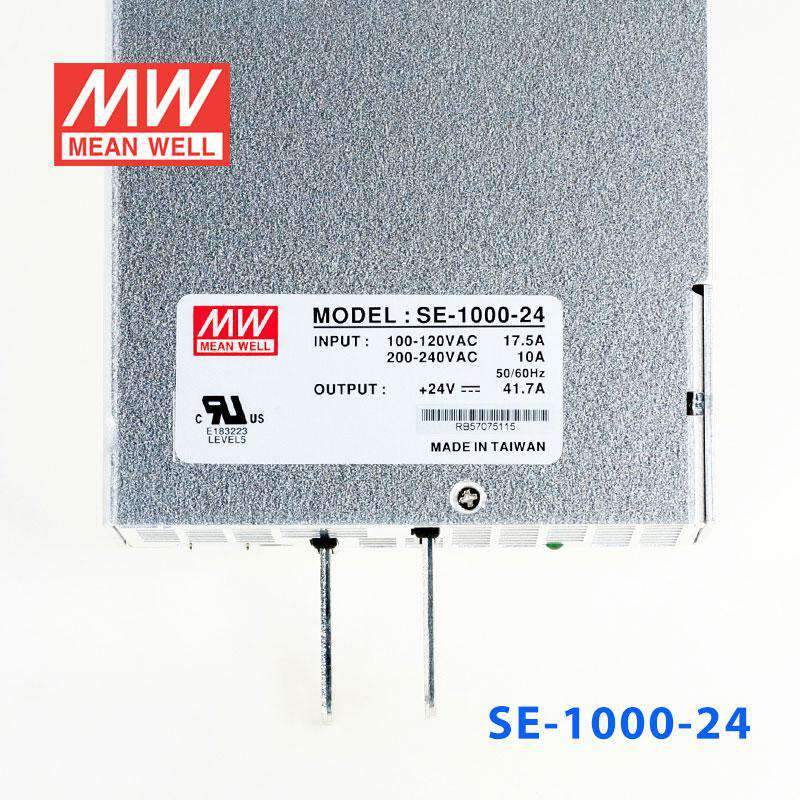

Mean Well SE-1000-24 Power Supply 1000W 24V
The SE-1000 is a 1000W Mean Well power converter (input range: 90~132VAC).
Key Features
- ✓ Input voltage range: 90~132VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL62368-1 BSMI CNS14336-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSE Series
-
Power Rating1000.8 Watt
-
Output Voltage24 Volt
-
Rated Current41.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length10.94 in
-
Width5 in
-
Height2.5 in
-
Weight5.51 lb
::specification::
Frequently Asked Questions
Can I use the SE-1000-24 for a 24V PLC and HMI control cabinet?
Yes, this model is a constant-voltage 24V supply for 24V DC loads. It can support industrial control hardware such as PLC, HMI, and I/O systems as long as the combined load stays within 41.7A and 1000.8W.
Is the SE-1000-24 suitable for larger 24V automation systems with several DC loads?
It is intended for medium to high power applications and provides 24V constant-voltage output. For an automation system with multiple 24V loads, the total demand should remain at or below 41.7A and 1000.8W.
Can this power 24V industrial LED lighting or signage equipment?
It can fit 24V constant-voltage lighting or signage systems when the total load is within 1000.8W. Because the output is 24V at up to 41.7A, it is better suited to larger 24V DC loads than lower-power supplies in the same series.
How does the SE-1000-24 compare with the other SE-1000 models?
Within the SE-1000 family, the listed models are SE-1000-5 at 5V, 150A, 750W; SE-1000-9 at 9V, 100A, 900W; SE-1000-12 at 12V, 83.3A, 999.6W; SE-1000-15 at 15V, 66.7A, 1000.5W; SE-1000-24 at 24V, 41.7A, 1000.8W; and SE-1000-48 at 48V, 20.8A, 998.4W. The main difference is the output voltage and the corresponding maximum current and wattage for each model.
Can the SE-1000-24 be used outdoors or in harsh environments?
The provided specs show an operating temperature range of -20°C to +60°C. No IP rating is listed here, so outdoor or water-exposed use cannot be confirmed from these specs alone.
