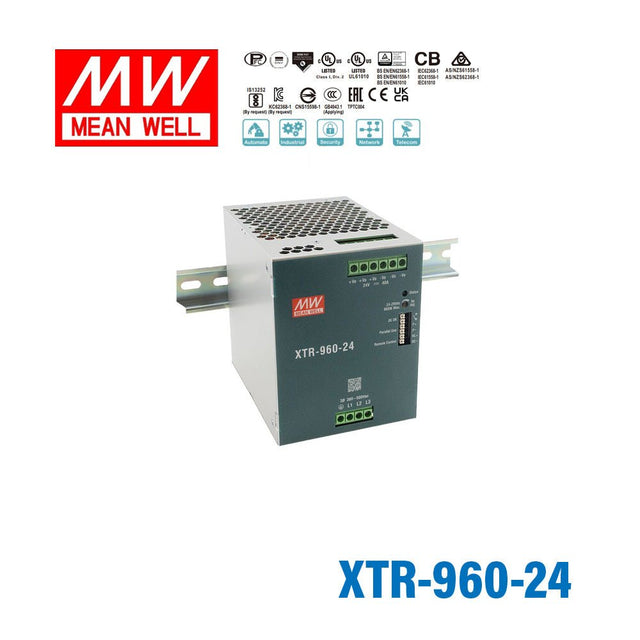

Mean Well XTR-960-24 Three Phase Din Rail Power Supply 960W 24V - Screw Terminal
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XTR-960-24 Three Phase Din Rail Power Supply 960W 24V - S...
TheXTR-960series is a high-capacity 960W power supply, designed to deliver reliable power in challenging industrial settings. Its efficiency and advanced features make it ideal for large-scale applications requiring stable power and enhanced performance. The series supports parallel operation, ensuring scalability and flexibility in power distribution.
Key Features:
-
BrandMean Well
-
SeriesMean Well XTR Series
-
Power Rating960 Watt
-
Output Voltage24 Volt
-
Rated Current40 Ampere
-
Input Voltage320V~600V
-
No of Output1
-
Standards MetCB,CCC,CE,EAC,EN,KC
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.2 in
-
Width3.78 in
-
Height4.93 in
-
Weight3.97 lb
::specification::
Frequently Asked Questions
What is the Mean Well XTR-960-24 designed for?
The XTR-960-24 is a 960W DIN rail AC-DC power supply for industrial power systems that need a stable 24V output. With a 40A rated current, it is suited for higher-capacity 24V loads in demanding B2B environments.
What output does the XTR-960-24 provide?
This model provides a 24V output with a rated current of 40A. Its total power rating is 960W, making it one of the higher-capacity options in DIN rail power supply applications.
Does the XTR-960-24 support wide input power?
Yes. The XTR-960-24 is specified with a three-phase 320 to 600Vac wide input range, and the product data also notes that dual phase operation is possible.
Can the XTR-960-24 be used in harsh temperature conditions?
The XTR-960-24 is rated for operation across a wide temperature range from -40°C to 85°C. That makes it suitable for demanding industrial environments where ambient conditions can vary significantly.
How does the XTR-960-24 compare with lower-wattage 24V DIN rail power supplies?
The main difference is capacity. This model delivers 960W at 24V and 40A, so it is intended for larger 24V systems than lower-wattage DIN rail supplies with smaller current ratings.
Does the XTR-960-24 support scalable power systems?
Yes. The XTR-960 series supports parallel operation, which can help with scalable power distribution in larger systems. The available product data identifies this as a key feature of the series.
What warranty period applies to the XTR-960-24?
The XTR-960-24 has a 5-year warranty period. For B2B buyers, that warranty length is useful when evaluating long-term support for industrial power supply deployments.
How much does the XTR-960-24 weigh?
The listed weight for the XTR-960-24 is 1.8 kg. This is useful for planning equipment layouts where component weight and space are part of the selection process.
