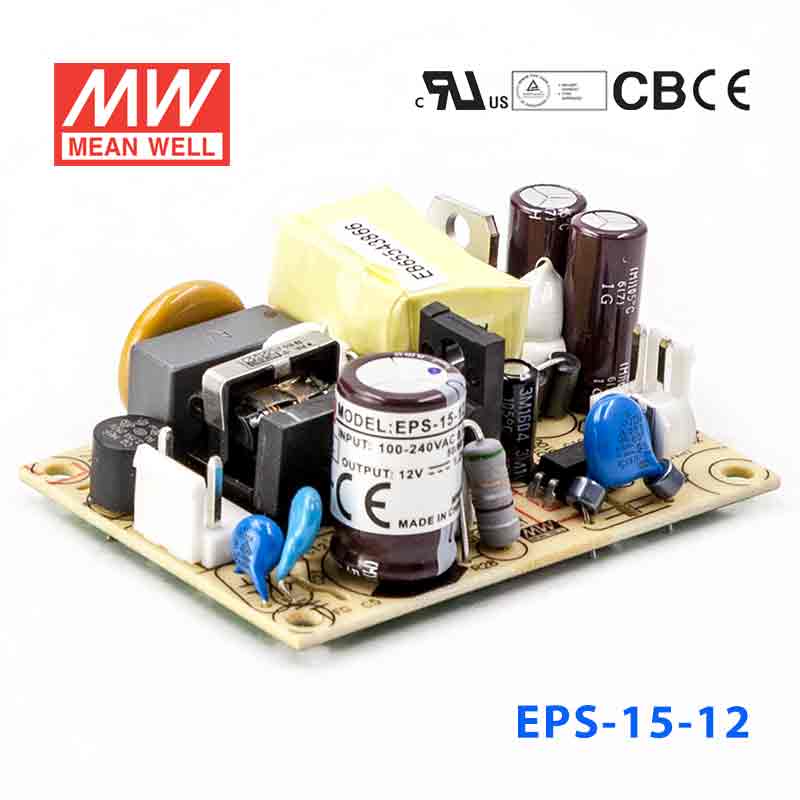

Mean Well EPS-15-12 Power Supply 15W 12V
The EPS-15 is a 15W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF UL62368-1, TUV EN62368-1 , EAC TP TC 004, CCC GB4943 .1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.5 in
-
Width1.8 in
-
Height0.94 in
-
Weight0.13 lb
::specification::
Frequently Asked Questions
Can I use the EPS-15-12 for a 12V sensor or small controller project?
Yes, it is a constant-voltage 12V supply rated for 15W and 1.25A, which suits low-power 12V electronics. It is best matched to equipment that needs a fixed 12V DC rail and stays within that output limit.
Is the EPS-15-12 suitable for embedded systems with modest 12V power demand?
It can be a fit for embedded hardware that needs 12V and draws up to 1.25A. The compact 63.5 x 45.7 x 24.0 mm footprint also makes it practical where space is tight.
Can this model power a small 12V automation accessory?
Yes, for light-duty automation loads that require 12V constant voltage and remain under 15W. It is more appropriate for smaller auxiliaries than for high-current 12V equipment.
Does the EPS-15-12 work for protected indoor environments only?
The specified operating temperature is -30°C to +70°C, so the electrical temperature range is broad. No IP rating is listed, so outdoor exposure would normally require a separate protective enclosure rather than open use.
How does the EPS-15-12 compare with other EPS series 12V models?
The listed 12V siblings are EPS-15-12 at 15W and 1.25A, EPS-25-12 at 25.2W and 2.1A, EPS-35-12 at 36W and 3A, EPS-45-12 and EPS-45-12-C at 45W and 3.75A, EPS-45S-12 at 45.6W and 3.8A, EPS-65-12 and EPS-65-12-C at 65.04W and 5.42A, EPS-65S-12 at 65W and 5.42A, and EPS-120-12 at 84W and 7A. EPS-15-12 is the lowest-power 12V option in that group.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPS-15 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPS-15-5 Power Supply 15W 5V | 15W | 5V | 3A | Indoor | $8.85 | View |
| Mean Well EPS-15-24 Power Supply 15W 24V | 15W | 24V | 0.62A | Indoor | $8.85 | View |
