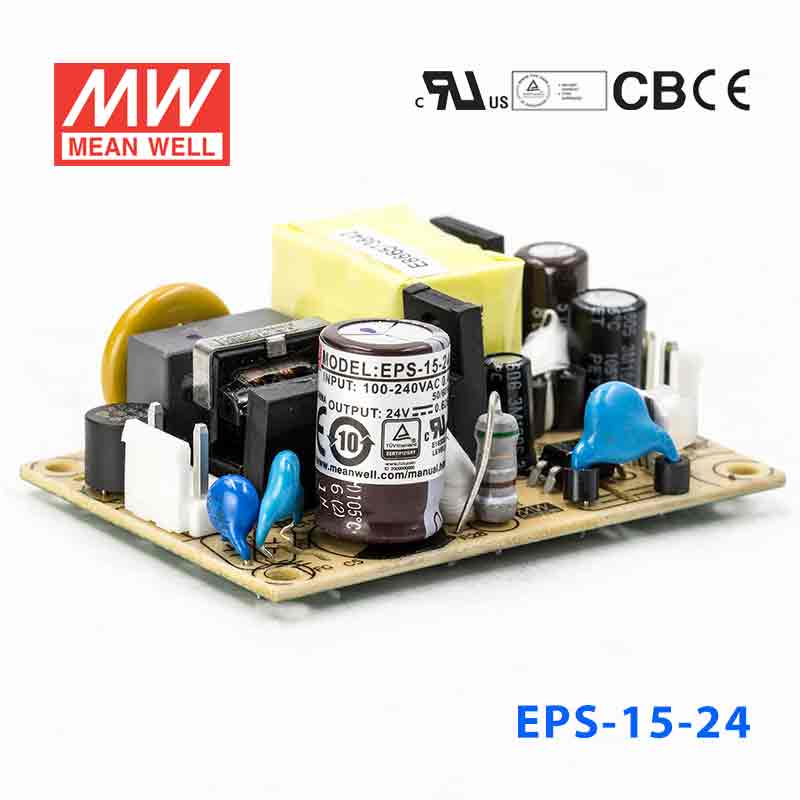

Mean Well EPS-15-24 Power Supply 15W 24V
The EPS-15 is a 15W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF UL62368-1, TUV EN62368-1 , EAC TP TC 004, CCC GB4943 .1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length2.5 in
-
Width1.8 in
-
Height0.94 in
-
Weight0.13 lb
::specification::
Frequently Asked Questions
Can I use the EPS-15-24 for a 24V PLC input or small automation device?
Yes, if the equipment needs 24V constant voltage and the load stays within 0.62A and 15W. That makes it a fit for lighter 24V control and automation loads rather than higher-current devices.
Is the EPS-15-24 suitable for 24V sensors, relays, or interface modules?
It can work for compact 24V accessories that do not exceed 0.62A. Buyers should check total current draw carefully because this is a 15W model, not a higher-capacity 24V supply.
Can this model power a low-power 24V embedded system?
Yes, for embedded or control electronics designed for a fixed 24V rail and modest power demand. Its 63.5 x 45.7 x 24.0 mm dimensions also support tighter packaging.
Is the EPS-15-24 meant for indoor or outdoor use?
The temperature specification is -30°C to +70°C, so it can operate across a broad temperature range. No IP rating is provided, so it should be treated as a supply for protected indoor use or for installation inside a suitable enclosure.
How does the EPS-15-24 compare to other EPS 24V power supplies?
The listed 24V siblings are EPS-15-24 at 15W and 0.62A, EPS-25-24 at 25.2W and 1.05A, EPS-35-24 at 36W and 1.5A, EPS-45-24 and EPS-45-24-C at 45.6W and 1.9A, EPS-45S-24 at 45.6W and 1.9A, EPS-65-24 and EPS-65-24-C at 65.04W and 2.71A, EPS-65S-24 at 65W and 2.71A, and EPS-120-24 at 84W and 3.5A. EPS-15-24 is the smallest 24V option in that set.
