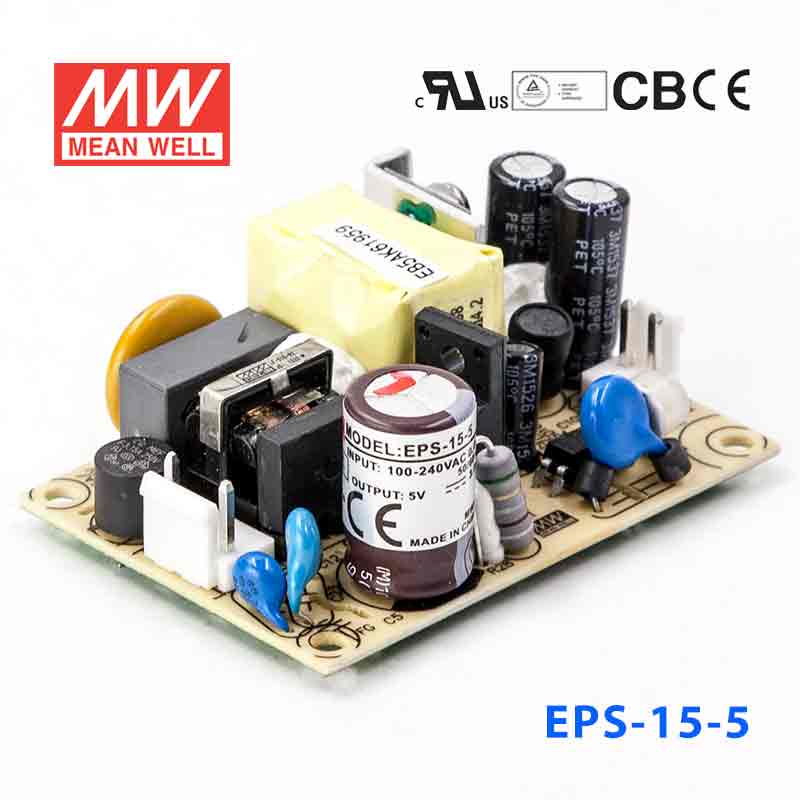

Mean Well EPS-15-5 Power Supply 15W 5V 3A
5.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EPS-15-5 Power Supply 15W 5V 3A
Overview
EPS-15-5 is the 5V output model of this series: rated current 3A, rated power 15W, typical efficiency 78%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 1.8"x2.5" compact size
- No load power consumption<0.3W
- Operating altitude up to 3000 meters
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 3A
- CURRENT RANGE
- 0 ~ 3.3A
- RATED POWER
- 15W
- PEAK LOAD(10sec.)Note.6
- 16.5W
- RIPPLE & NOISE (max.)Note.2
- 50mVp-p
- VOLTAGE ADJ. RANGE
- 4.75 ~ 5.5V
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 50ms/230VAC 16ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.5
- 85 ~ 264VAC 120 ~ 370VDC [DC input operation possible by connecting AC/N(+), AC/L(-)]
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 78%
- AC CURRENT (Typ.)
- 0.4A/115VAC 0.2A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 45A/230VAC
- LEAKAGE CURRENT
- <1mA/240VAC
PROTECTION
- OVER LOAD
- 115 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.6 ~ 6.75V Protection type : Shut down o/p voltage, Clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- OPERATING ALTITUDENote.7
- 3000 meters
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, CCC GB4943.1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, GB9254 Class B, GB17625.1
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 6024.7K hrs min. Telcordia SR-332 (Bellcore) ; 849.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 63.5*45.7*24mm (L*W*H)
- PACKING
- 0.057Kg; 120pcs/ 7.84Kg/0.94CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. Derating may be needed under low input voltage. Please check the static characteristics for more details.
- 6. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Datasheet1
Certificates9
Test reports1
Catalogues1
FAQ
Can I use the EPS-15-5 for a 5V single-board computer or embedded controller?
Yes, this supply provides constant 5V output at up to 3A with a 15W rating. It is appropriate for embedded controllers or computing boards that need 5V and stay within that 3A limit.
Is this suitable for 5V USB-powered style electronics used inside industrial equipment?
It can be used for 5V electronics inside industrial or IT equipment when the total draw does not exceed 3A or 15W. The constant voltage design is suited to regulated 5V loads rather than devices that require another voltage.
Would the EPS-15-5 work for 5V HMI accessories, logic boards, or communication modules?
Yes, it is a practical option for low-power 5V accessories and control electronics up to 3A. Its compact 63.5 x 45.7 x 24.0 mm size helps in small enclosures where internal power space is limited.
Can I use this in automation equipment that ships to different AC regions?
Yes, the input range is 85-264VAC, so it can accept a wide span of AC mains input. On the output side, it remains a 5V constant voltage supply rated for 3A and 15W.
Is the EPS-15-5 meant for indoor or outdoor use?
The operating temperature range is -30C to +70C, with output derating at higher temperatures per the derating curve, which supports use across a broad range of equipment temperatures. No IP rating is listed in the provided specifications, so the product data does not establish outdoor or wet-location suitability.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other EPS-15 Models
4 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well EPS-15-12 Power Supply 15W 12V 1.25A | 15W | 12V | 1.25A | IP20 | $8.85 | View |
| Mean Well EPS-15-7.5 Power Supply 15W 7.5V 2A | 15W | 7.5V | 2A | IP20 | $9.04 | View |
| Mean Well EPS-15-24 Power Supply 15W 24V 625mA | 15W | 24V | 0.625A | IP20 | $8.85 | View |
| Mean Well EPS-15-15 Power Supply 15W 15V 1A | 15W | 15V | 1A | IP20 | $8.85 | View |
Customer reviews
Reviewed by 1 customer across the EPS series
-
Replacement PS
Model: EPS-15-15 ×1, EPS-15-5 ×1, EPS-15-7.5 ×1Quantity: 1Power Supplies were used to replace the one that was removed on a Phillips PM6680 counter, a +5V, +15V and -7V. They seem to work well so far. I have to put in a boost converter on the +15V for space and not use the +15V EPS.
