Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

×
High Resolution Image

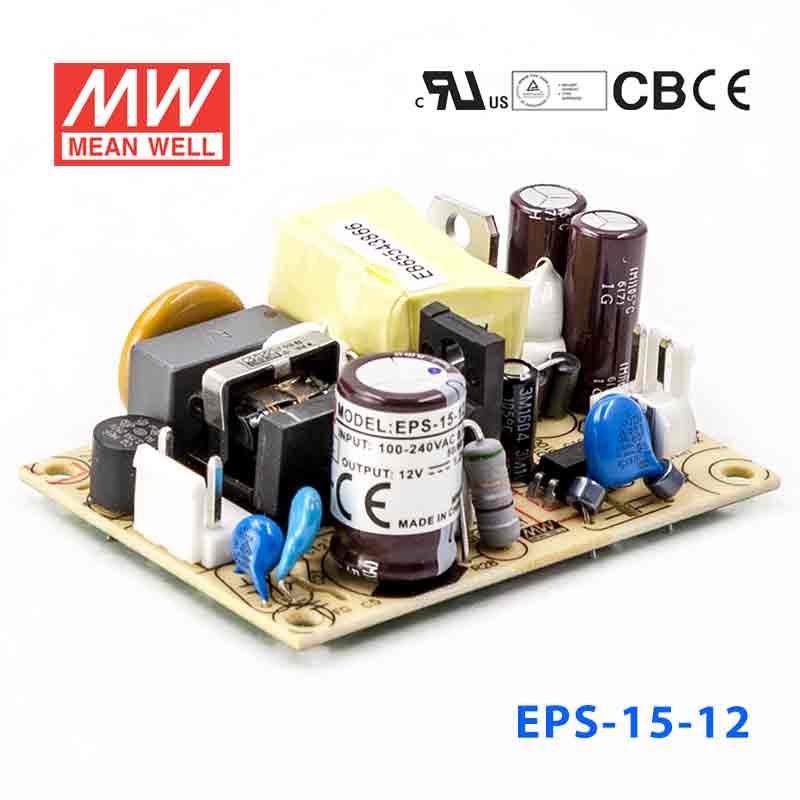

Mean Well EPS-15-12 Power Supply 15W 12V

2.5" x 1.8", economical non-PFC, no load power consumption
$8.85 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
No load power consumption < 0.3W
Protections: Short circuit / Overload / Over voltage
High efficiency up to 85%
Cooling by free air convection
Compact size
Operating altitude up to 3000 meters
3 years warranty

General Specification

AC input voltage range 85~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 45A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 115%~150% rated output power
Overload protection Type Hiccup mode, auto recovery
Over voltage protection 115%~145%
Withstand voltage I/P-O/P: 3kVAC, I/P-FG:2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL62368-1, TUV EN/EN62368-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection 3+2P/3.96mm pitch, JST B3P/B2P-VH
Dimension (LxWxH) 63.5x45.7x24
Packing 120pcs/7.84Kg

Specifications

  • Brand
    Mean Well
  • Series
    EPS Series
  • Power Rating
    15 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    1.25 Ampere
  • Input Voltage
    85V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CCC,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    2.5 in
  • Width
    1.8 in
  • Height
    0.94 in
  • Weight
    0.13 lb

File Downloads

::specification::
