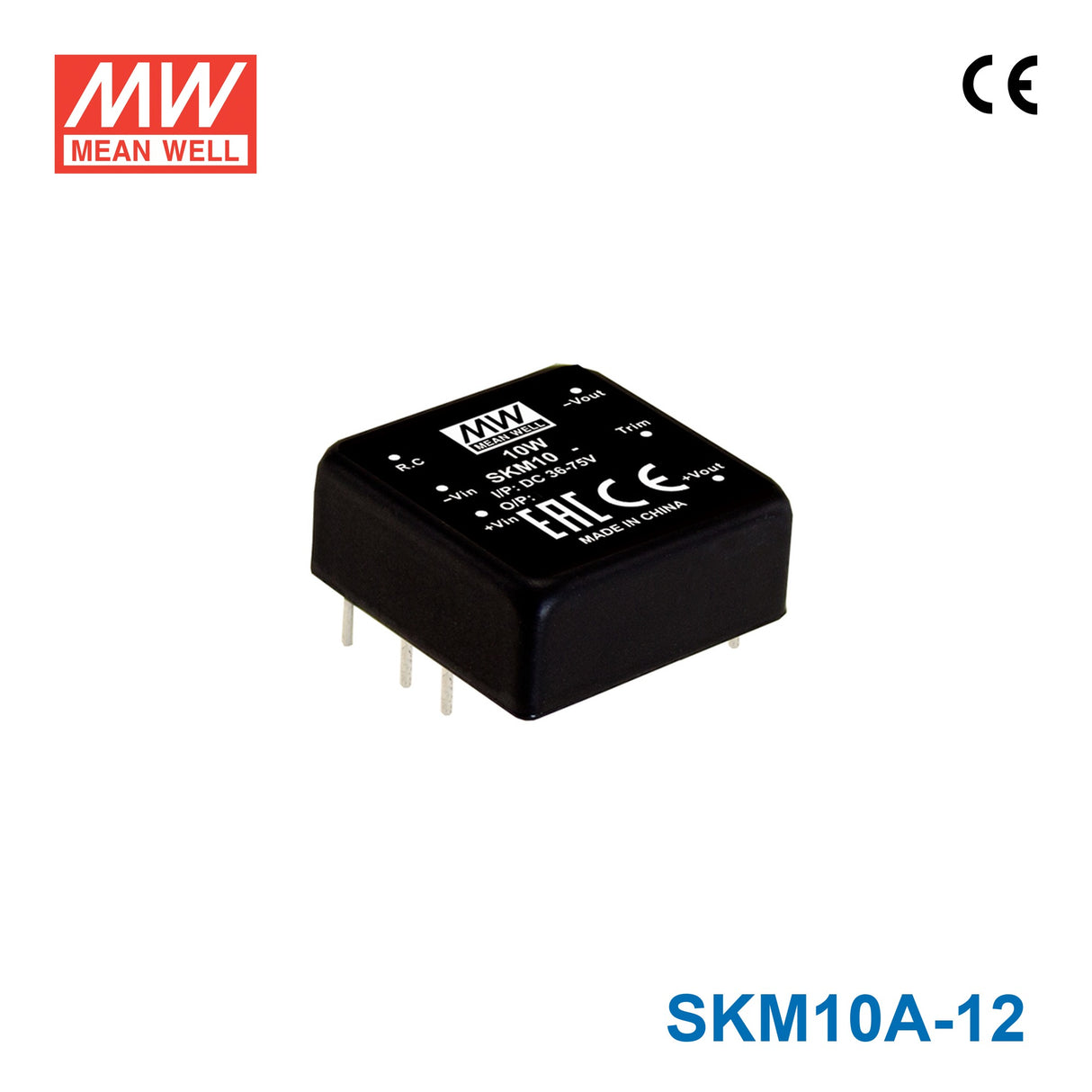

Mean Well SKM10A-12 DC-DC Converter - 10W - 9~18V in 12V out 833mA
The SKM10A-12 is a 10W Mean Well DC-DC converter (input: 9~18VDC, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 9~18VDC
- ✓ Output voltage (max): 12V
- ✓ Rated output current: 833mA
- ✓ I/O isolation: 1500V
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CE
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesSKM Series
-
Power Rating10 Watt
-
Output Voltage12 Volt
-
Rated Current0.83 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the SKM10A-12 in a 12V industrial control circuit that has a 9-18VAC source?
Yes, this converter is designed for a 9-18VAC input range and provides a constant 12V output. With a 10W power rating, it fits low-power industrial control loads that need regulated 12V from that input range.
Is the SKM10A-12 suitable for embedded electronics that need regulated 12V in a compact space?
It can fit compact embedded assemblies because the housing is 25.4 × 25.4 × 10.2 mm and the weight is 0.018 kg. Its constant-voltage 12V output and 10W rating make it appropriate for low-power embedded designs that match those electrical limits.
Can this 12V converter be used in automation equipment operating across a wide ambient temperature range?
It is rated for operation from -40°C to +85°C, which supports use in automation equipment exposed to large temperature swings. The converter still needs the application to stay within its 10W output limit and 9-18VAC input range.
Is the SKM10A-12 suitable for outdoor or washdown environments?
The published specs list an operating temperature of -40°C to +85°C, but they do not include an IP rating. Without an IP rating, it is better suited to protected indoor enclosures rather than exposed outdoor or washdown locations.
How does the SKM10A-12 compare with other SKM10A models?
All listed SKM10A models are 10W converters. The sibling outputs are 3.3V at 2.5A for SKM10A-03, 5V at 2A for SKM10A-05, 12V at 833A for SKM10A-12, and 15V at 666A for SKM10A-15.
