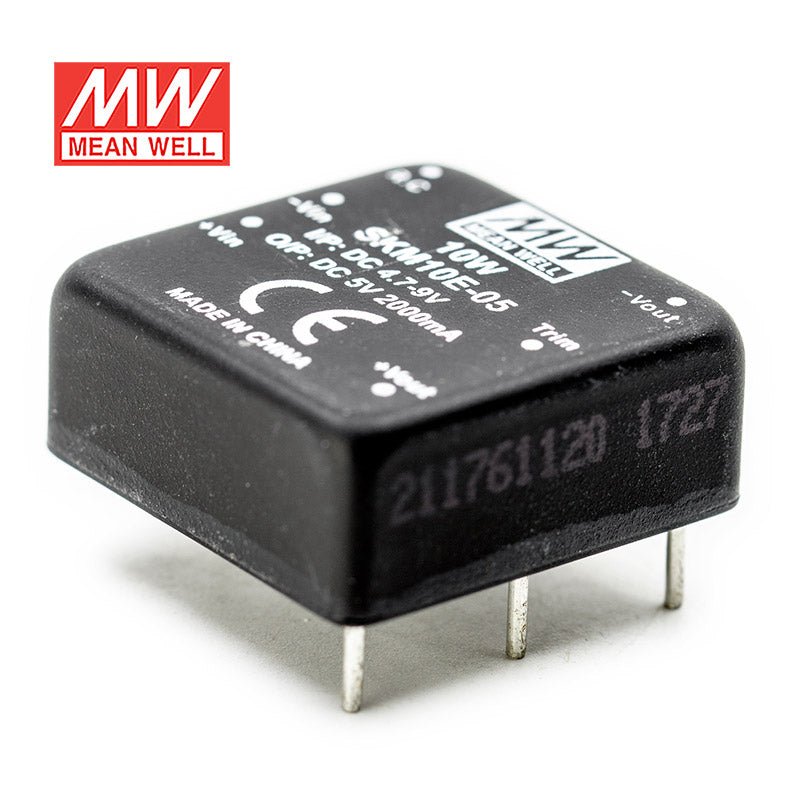

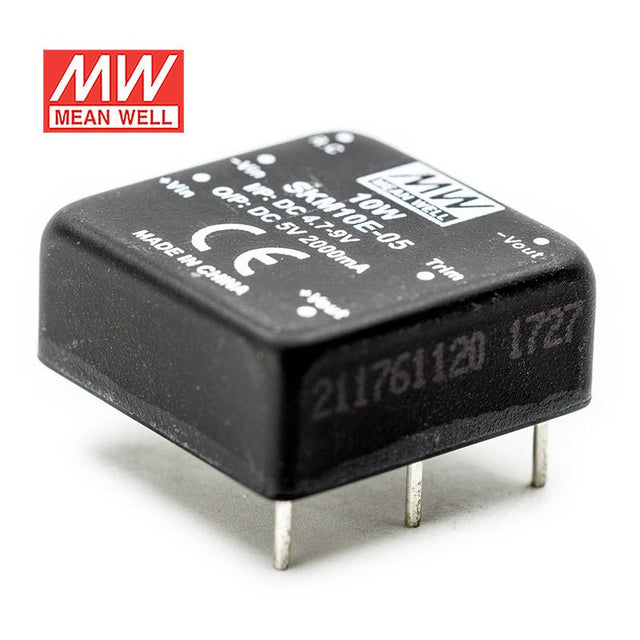

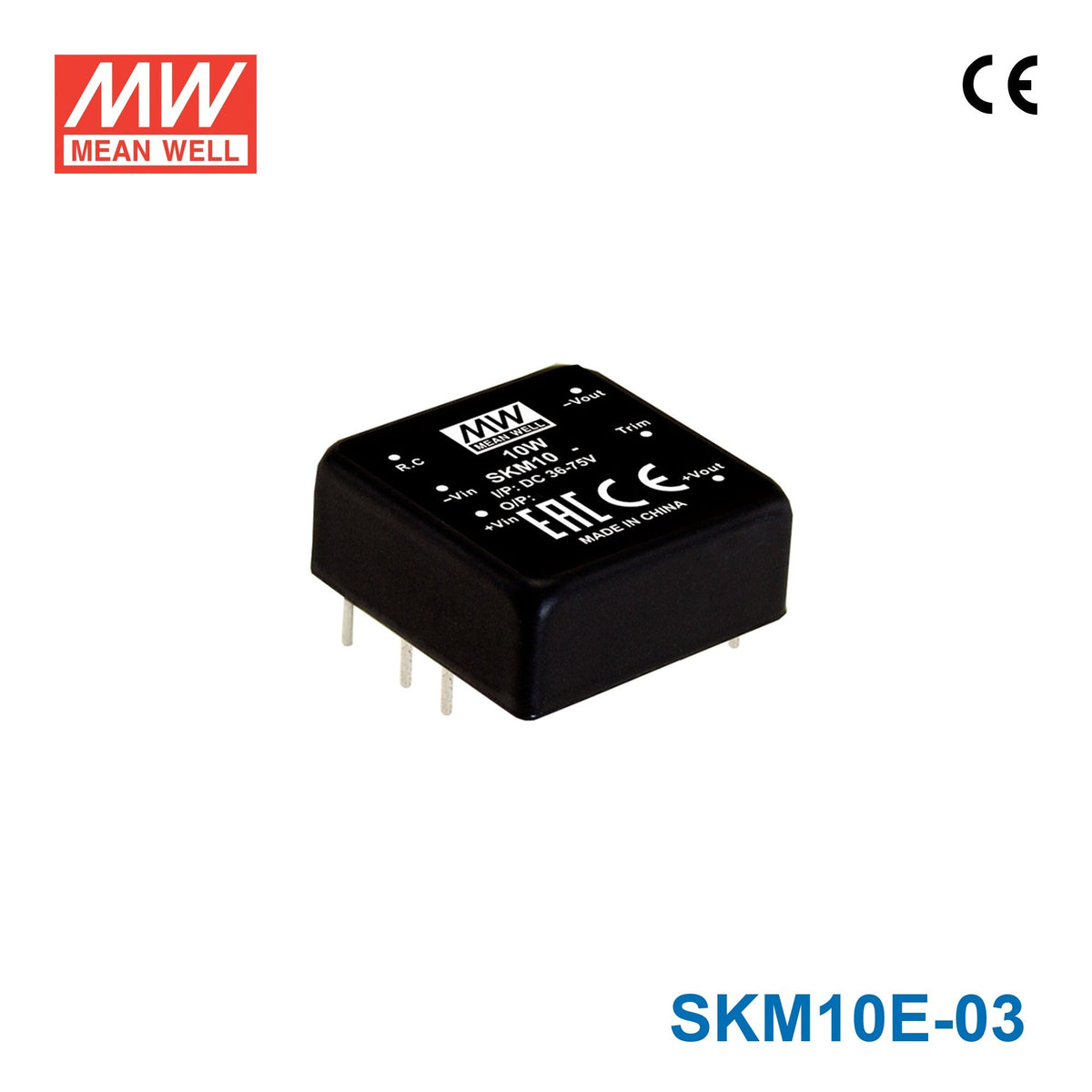

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SKM10E-03 DC-DC Converter - 10W - 4.7~9V in 3.3V out 2.5A

Name: Mean Well SKM10E-03 DC-DC Converter - 10W - 4.7~9V in 3.3V out 2.5A
Brand: Mean Well
SKU: SKM10E-03
Price: 20.61 USD
Availability: InStock

SKU SKM10E-03

$20.61 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

SKM10E-03 is the 3.3V output model of this series: rated power 10W, typical efficiency 87%.

SKM10 and DKM10 series are 10W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components , continuous-mode short circuit protection, etc. The models account for different input voltage 4.7~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP 1"x1" package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +85℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 90%
Protections: Short circuit (Continuous) / Overload / Over voltage / Input under voltage
1.5KVDC I/O isolation
Remote ON/OFF control and Triming output (±10%)
3 years warranty

Specifications

SKM10E-03Specifications from the official datasheet (2024-04-30 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): 5V (4.7 ~ 9V)
INPUT CURRENT NO LOAD: 85mA
INPUT CURRENT FULL LOAD: 1897mA
OUTPUT VOLTAGE: 3.3V
OUTPUT CURRENT: 2500mA
EFFICIENCY (Typ.): 87%
CAPACITOR LOAD (MAX.)^{* For each output}: 2470μF

INPUT

VOLTAGE RANGE: 4.7~9Vdc ,
SURGE VOLTAGE (100ms max.): 5Vin models : 12Vdc, 12Vin models : 25Vdc, 24Vin models : 50Vdc, 48Vin models : 100Vdc
FILTER: Pi type
PROTECTION: Fuse recommended. 5Vin models: 5A delay time Type, 12Vin models: 4A delay time Type, 24Vin models: 2A delay time Type, 48Vin models: 1A delay time Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±1.5%
RATED POWER: 10W
RIPPLE & NOISE^Note.2: 50mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: Single output models: ±0.2%, Dual output models:±1%
SWITCHING FREQUENCY (Typ.): 350KHz
EXTERNAL TRIM ADJ. RANGE (Typ.): ±10% (Single output model only)

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 110 ~ 140% rated output power Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE: Protection type : Clamp by diode
UNDER VOLTAGE LOCKOUT Start-up voltage: 5Vin: 4.4Vdc, 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin: 34Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 5Vin: 4.2Vdc, 12Vin: 8Vdc, 24Vin: 16Vdc, 48Vin: 32Vdc

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin >5.5~75Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 71℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1000pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 1200Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 25.4*25.4*10.2mm (1*1*0.4 inch)
CASE MATERIAL: Black coated copper with Non-Conductive Base
PACKING: 18.3g ; 12pcs/per tube, 600pcs/50 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(E:5Vdc, A:12Vdc, B:24Vdc, C:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

SKM10E-03 SKM10 & DKM10 series — SKM10 & DKM10 series

SKM10E-03 SKM10 & DKM10 series (2) — SKM10 & DKM10 series (2)

SKM10E-03 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates2

Mean Well SKM10-DKM10-CE-dec Certificate PDF Download

Mean Well SKM-DKM10-UK-dec Certificate PDF Download

Test reports1

Mean Well SKM10E-03 Test Report PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SKM10E-03 for a 3.3V industrial control board or embedded controller?

It is designed for constant-voltage 3.3V output with up to 2.5A and 10W available. That makes it a fit for 3.3V control boards, embedded electronics, or low-voltage logic sections when the source is within the listed 4.7~9Vdc input range.

Is the SKM10E-03 suitable for 3.3V sensors or data-acquisition modules in automation equipment?

This model is intended for 3.3V loads and provides a constant-voltage output rated at 2.5A. For automation or embedded sensing hardware that needs a 3.3V rail and stays within the 10W rating, it is aligned with that use case.

Can this converter support 3.3V communication or logic circuitry inside industrial equipment?

Yes, the 3.3V constant-voltage output matches common low-voltage logic and interface sections used in embedded and industrial electronics. The available output is 10W total, and the specified current is 2.5A.

Is the SKM10E-03 appropriate for outdoor or harsh-temperature equipment?

The listed operating temperature is -40°C to +85°C, which supports use across a wide temperature range. However, no IP rating is provided in the specs, so the product data does not establish suitability for exposed outdoor or washdown environments.

How does the SKM10E-03 compare with other SKM10E models?

Within the SKM10E series, all listed models are 10W parts with 4.7~9Vdc input in the same 25.4 × 25.4 × 10.2 mm size. The difference is output: SKM10E-03 is 3.3V at 2.5A, SKM10E-05 is 5V at 2A, SKM10E-12 is 12V at 833mA, and SKM10E-15 is 15V at 666mA.
