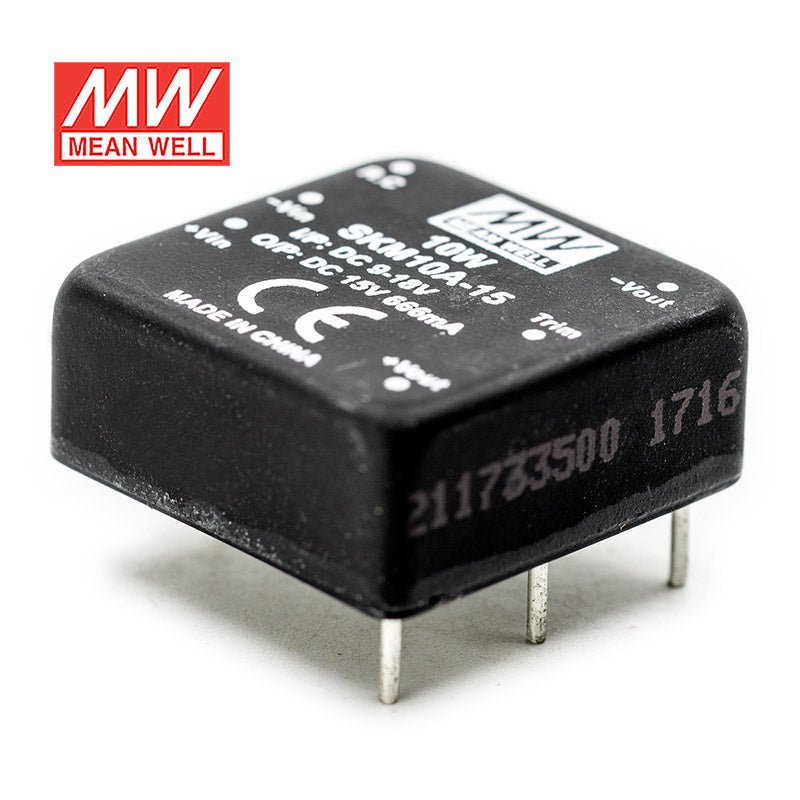

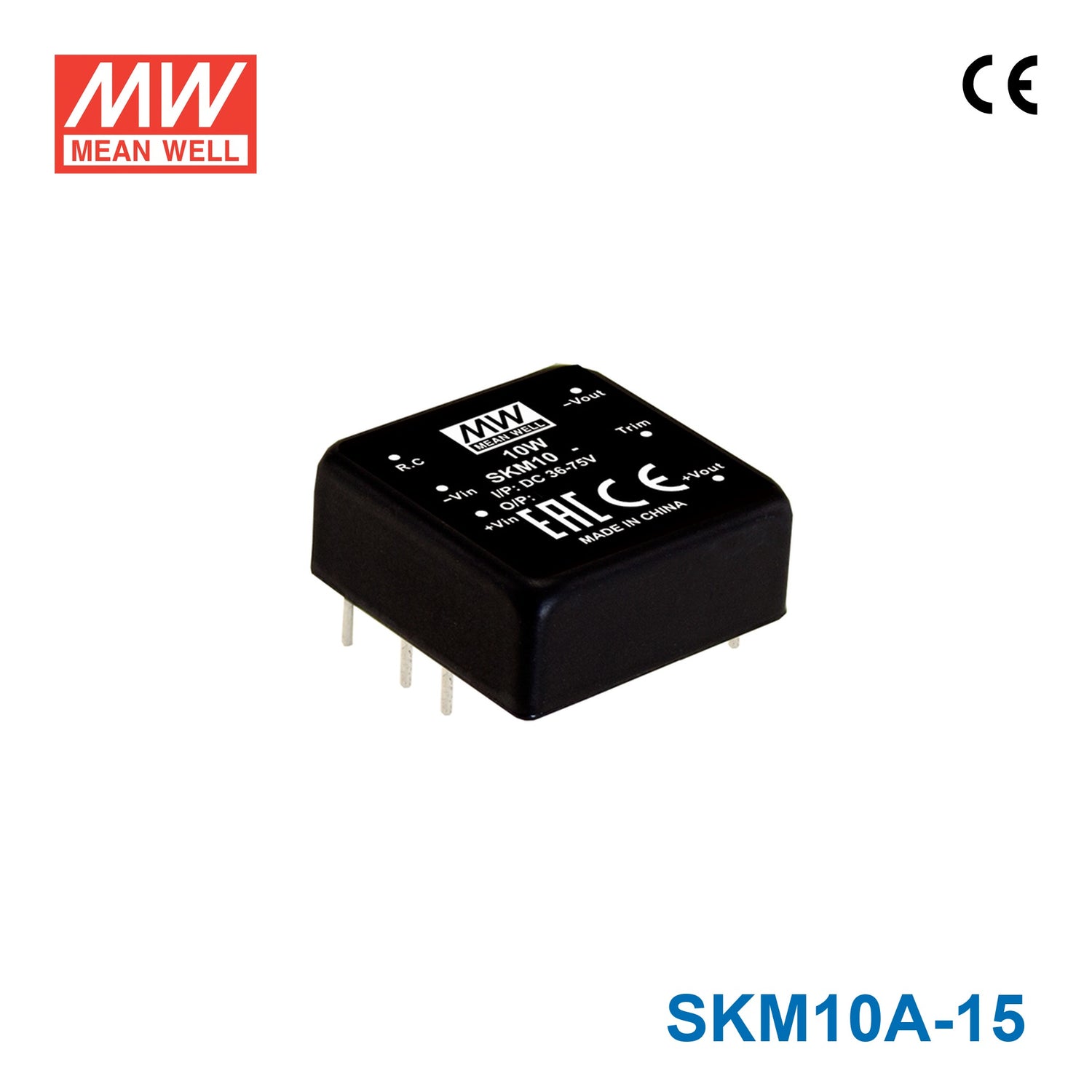

Mean Well SKM10A-15 DC-DC Converter - 10W - 9~18V in 15V out
Description
Description
Features
| DIP 1"x 1" package with industry-standard pinout |
| 2:1 wide input range |
| Operating temperature range -40 ~ + 85°C |
| No minimum load required |
| Comply to BS EN/EN55032 radiated Class A without additional components |
| High Efficiency up to 90% |
| Protection: Short circuit / Overload Input and output over-voltage |
| 1.5KVDC I/O isolation |
| Remote ON/OFF control and Trimming output (±10%) |
| 3 years warranty |
General Specification
| Voltage set point accuracy | ±1.5% (max.) |
| Line regulation | ±0.2% (max.) |
| Load regulation | Single output models: 0.2%, Dual output models: 1% |
| Overload protection | 110%~140%, Protection type: Recovers automatically after fault condition is removed |
| Efficiency | 89% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I/O isolation voltage | 1500VDC (min.) |
| I/O isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH |
| Working temperature | -40~+85°C (refer to output derating curve) |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Dimension (LxWxH) (mm) | 25.4 x 25.4 x 10.2mm (1 x 1 x 0.4 inch) |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKM Series
-
Power Rating10 Watt
-
Output Voltage15 Volt
-
Rated Current0.66 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SKM10A-15 for a 15V automation or control load powered from 9-18VAC?
Yes, it accepts 9-18VAC input and delivers a constant 15V output. Its 10W rating makes it suitable for low-power automation or control loads that require regulated 15V within that power limit.
Is the SKM10A-15 a good fit for compact industrial electronics that require 15V output?
Its 25.4 × 25.4 × 10.2 mm size and 0.018 kg weight make it practical where board area and overall mass are limited. The constant-voltage 15V output supports compact industrial electronics that stay within the 10W rating.
Can this converter be used in embedded equipment exposed to very low or high temperatures?
It is specified for operation from -40°C to +85°C, so it can support embedded equipment that must operate across a broad ambient range. The electrical application still needs to match the 9-18VAC input window and the 10W output capacity.
Can the SKM10A-15 be used in outdoor cabinets or exposed field equipment?
The converter has a wide operating temperature range of -40°C to +85°C, but no IP rating is provided in the specs. That means temperature capability is stated, but protection against water or dust exposure is not, so it is better used in a protected enclosure.
What is the difference between the SKM10A-15 and other SKM10A output versions?
The SKM10A family shown here keeps the same 10W platform and changes the output rating. The listed versions are 3.3V at 2.5A, 5V at 2A, 12V at 833A, and 15V at 666A.
