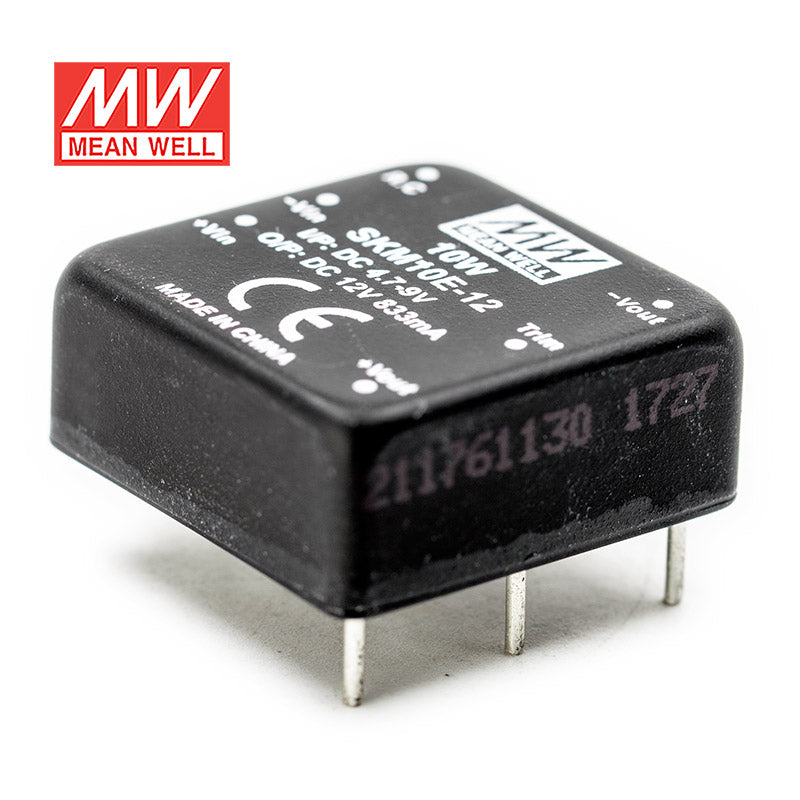

Mean Well SKM10E-12 DC-DC Converter - 10W - 4.7~9V in 12V out

$20.61 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

DIP 1"x 1" package with industry-standard pinout
2:1 wide input range
Operating temperature range -40 ~ + 85°C
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High Efficiency up to 90%
Protection: Short circuit / Overload Input and output over-voltage
1.5KVDC I/O isolation
Remote ON/OFF control and Trimming output (±10%)
3 years warranty

General Specification

Voltage set point accuracy ±1.5% (max.)
Line regulation ±0.2% (max.)
Load regulation Single output models: 0.2%, Dual output models: 1%
Overload protection 110%~140%, Protection type: Recovers automatically after fault condition is removed
Efficiency 89% (typical)
Short circuit protection Continuous, auto-recovery
I/O isolation voltage 1500VDC (min.)
I/O isolation resistance I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH
Working temperature -40~+85°C (refer to output derating curve)
EMC Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Dimension (LxWxH) (mm) 25.4 x 25.4 x 10.2mm (1 x 1 x 0.4 inch)

Specifications

  • Brand
    Mean Well
  • Series
    SKM Series
  • Power Rating
    10 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    0.83 Ampere
  • Input Voltage
    4.7V~9V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    3 Year
  • Length
    1 in
  • Width
    1 in
  • Height
    0.4 in
  • Weight
    0.04 lb

File Downloads
