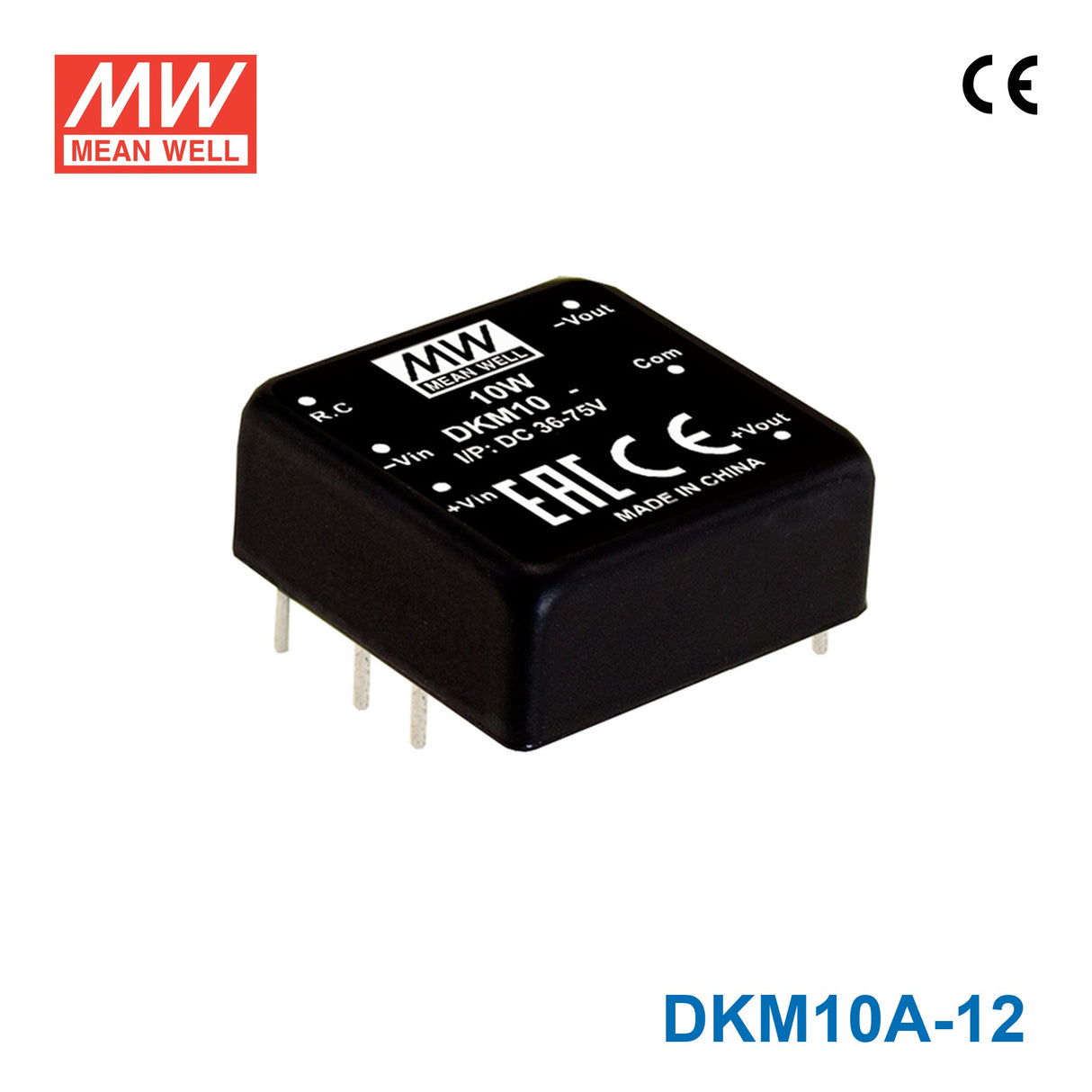

Mean Well DKM10A-12 DC-DC Converter - 10W - 9~18V in ±12V out
SKM10 and DKM10 series are 10W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 4.7~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Key Features
- ✓✓✓DIP 1"x1" package with industry standard pinout
- ✓✓✓2:1 wide input range
- ✓✓✓Operating temperature range -40 ~ +85℃
- ✓✓✓No minimum load required
- ✓✓✓Comply to EN55032 radiated Class A without additional components
- ✓✓✓High efficiency up to 90%
- ✓✓✓Protections: Short circuit (Continuous} / Overload / Over voltage / Input under voltage
- ✓✓✓1.5KVDC I/O isolation
- ✓✓✓Remote ON/OFF control and Triming output (±10%)
- ✓✓✓3 years warranty
-
BrandMean Well
-
SeriesDKM Series
-
Power Rating10 Watt
-
Output Voltage12 Volt
-
Rated Current0.41 Ampere
-
Input Voltage9V~18V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the DKM10A-12 in a 12V automotive or embedded power system?
It is intended for a 9-18V input range, so it matches 12V-class source systems well. The converter delivers 12V constant-voltage output and is sized for loads up to 10W.
Is the DKM10A-12 suitable for low-power 12V control or interface electronics?
Yes, it can be used for low-power 12V control electronics when the available source is within 9-18V. The main sizing limits are the 10W power rating and the listed 416A output current.
Can this model power 12V instrumentation or sensor modules inside industrial equipment?
It can be a fit for 12V instrumentation, sensor, or interface modules that need constant-voltage output from a 9-18V input bus. Its 25.4 × 25.4 × 10.2 mm size also helps in compact industrial assemblies.
What is the difference between DKM10A-12 and the other DKM10A versions?
The DKM10A family keeps the same 10W rating and 9-18V input range, but the outputs vary. The DKM10A-05 is 5V at 1A, the DKM10A-12 is 12V at 416A, and the DKM10A-15 is 15V at 333A.
Is the DKM10A-12 rated for outdoor or temperature-variable environments?
The listed operating temperature is -40°C to +85°C, so it supports broad temperature exposure within equipment. No IP rating is provided, so the published specs do not indicate direct outdoor or wet-location suitability.
