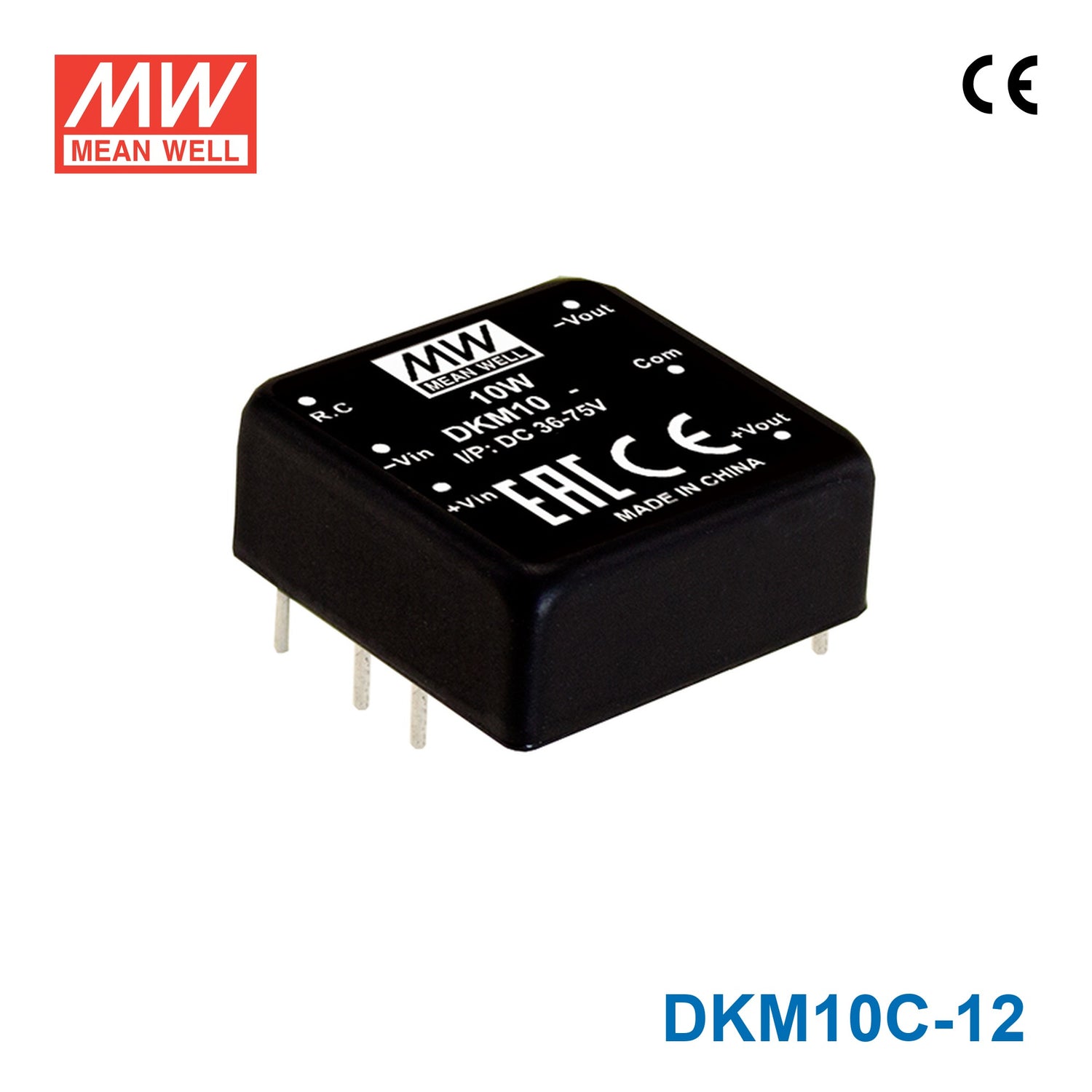

Mean Well DKM10C-12 DC-DC Converter - 10W - 36~75V in ±12V out
Description
Description
SKM10 and DKM10 series are 10W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 4.7~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- DIP 1"x1" package with industry standard pinout
- 2:1 wide input range
- Operating temperature range -40 ~ +85℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional components
- High efficiency up to 90%
- Protections: Short circuit (Continuous} / Overload / Over voltage / Input under voltage
- 1.5KVDC I/O isolation
- Remote ON/OFF control and Triming output (±10%)
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesDKM Series
-
Power Rating10 Watt
-
Output Voltage12 Volt
-
Rated Current0.41 Ampere
-
Input Voltage36V~75V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DKM10C-12 in a higher-voltage industrial system that needs a 12V rail?
Yes. The DKM10C-12 takes 36-75VAC input and provides a constant voltage 12V output with 10W power. That makes it suitable for industrial, automation, or embedded equipment using that wider input range and requiring a compact auxiliary 12V supply.
Is this model appropriate for embedded or communications equipment that needs regulated 12V power?
It can be appropriate when the available source is within 36-75VAC and the design needs constant voltage 12V output. The 25.4 × 25.4 × 10.2 mm dimensions and 0.018 kg weight support dense layouts. The 10W rating sets the load limit for the application.
Can the DKM10C-12 support instrumentation or interface modules in automation hardware?
It is intended for applications that need a stable 12V constant voltage rail from a 36-75VAC input source. That can make it a fit for instrumentation, interface, or control subsystems inside industrial equipment, provided the power requirement stays within 10W. CE certification may also be useful in system-level compliance work.
Is the DKM10C-12 designed for harsh temperature conditions?
The specified operating temperature is -40°C to +85°C, which supports use in demanding indoor equipment environments. No IP rating is listed, so the specs alone do not support outdoor exposure claims. It is best treated as a protected internal converter rather than an exposed field device.
What is the difference between the DKM10C-12 and the other DKM10C versions?
The DKM10C-05 is 10W with 5V output and 1A, the DKM10C-12 is 10W with 12V output and 416A, and the DKM10C-15 is 10W with 15V output and 333A. They are all part of the same 10W series. The difference is the output voltage and listed output current.
