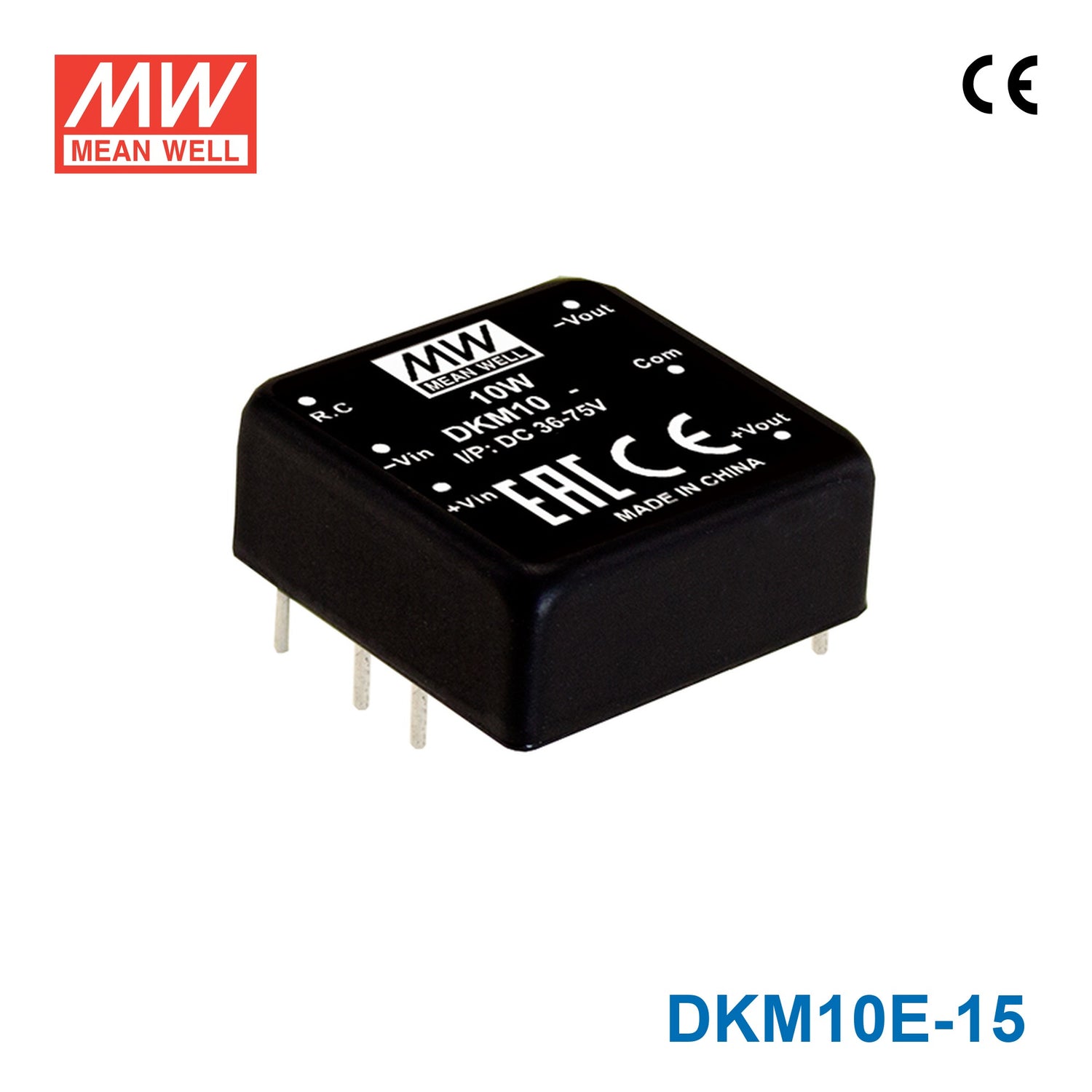

Mean Well DKM10E-15 DC-DC Converter - 10W - 4.7~9V in ±15V out
Description
Description
SKM10 and DKM10 series are 10W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 4.7~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- DIP 1"x1" package with industry standard pinout
- 2:1 wide input range
- Operating temperature range -40 ~ +85℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional components
- High efficiency up to 90%
- Protections: Short circuit (Continuous} / Overload / Over voltage / Input under voltage
- 1.5KVDC I/O isolation
- Remote ON/OFF control and Triming output (±10%)
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesDKM Series
-
Power Rating10 Watt
-
Output Voltage15 Volt
-
Rated Current0.33 Ampere
-
Input Voltage4.7V~9V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DKM10E-15 for a 15V analog or control circuit in industrial equipment?
It is intended for applications that need a constant 15V output from a 4-9VAC input range. The load still has to fit within the 10W rating and the listed 333A output current.
Is the DKM10E-15 a fit for compact embedded systems that require 15V power?
This converter can fit compact embedded assemblies because its dimensions are 25.4 × 25.4 × 10.2 mm. It is suited to low-power 15V use cases that stay within its 10W output limit.
Would the DKM10E-15 work for low-power automation electronics that need a constant 15V rail?
Yes, it is designed as a constant-voltage 15V converter rather than an adjustable-output model. It is best matched to low-power automation or interface electronics within the 10W capacity.
Is the DKM10E-15 suitable for outdoor panels or unsealed enclosures?
The unit is rated for operation from -40°C to +85°C, so the temperature range is broad. However, no IP rating is provided, so the published specs do not confirm suitability for outdoor exposure, rain, or dust-heavy environments.
How does the DKM10E-15 compare with the DKM10E-05 and DKM10E-12?
All three listed DKM10E models are 10W converters with the same 25.4 × 25.4 × 10.2 mm size, 0.018 kg weight, CE certification, 3-year warranty, and -40°C to +85°C operating range. The DKM10E-15 is listed at 15V and 333A, while the DKM10E-05 is 5V at 1A and the DKM10E-12 is 12V at 416A.
