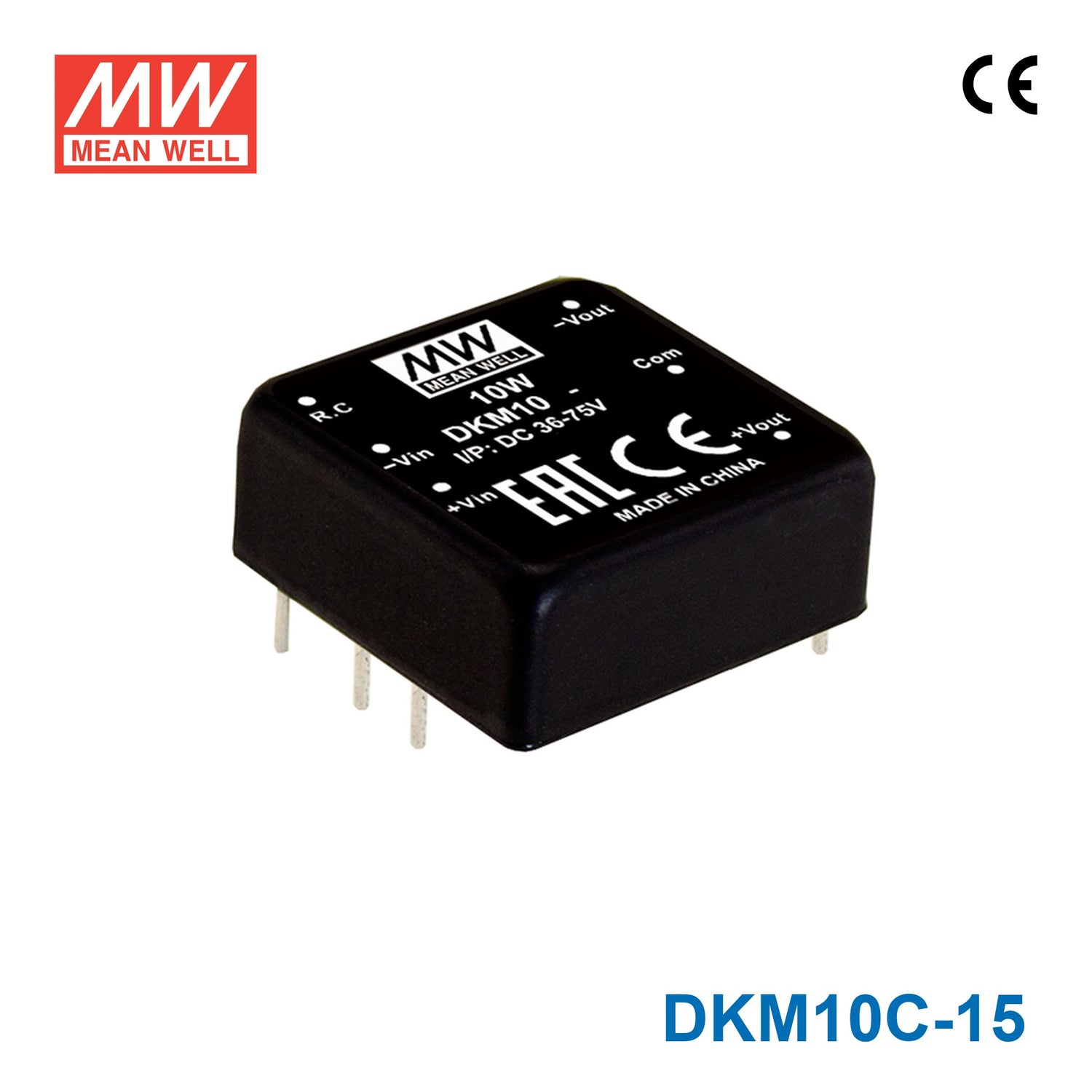

Mean Well DKM10C-15 DC-DC Converter - 10W - 36~75V in ±15V out
Description
Description
SKM10 and DKM10 series are 10W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 4.7~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Features
- DIP 1"x1" package with industry standard pinout
- 2:1 wide input range
- Operating temperature range -40 ~ +85℃
- No minimum load required
- Comply to EN55032 radiated Class A without additional components
- High efficiency up to 90%
- Protections: Short circuit (Continuous} / Overload / Over voltage / Input under voltage
- 1.5KVDC I/O isolation
- Remote ON/OFF control and Triming output (±10%)
- 3 years warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Specifications
Specifications
-
BrandMean Well
-
SeriesDKM Series
-
Power Rating10 Watt
-
Output Voltage15 Volt
-
Rated Current0.33 Ampere
-
Input Voltage36V~75V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DKM10C-15 in industrial electronics that need 15V from a higher input range?
Yes. The DKM10C-15 accepts 36-75VAC input and delivers constant voltage 15V output with a 10W rating. That makes it suitable for industrial, embedded, or automation equipment that uses that input range and needs a compact 15V auxiliary supply.
Is this converter suitable for embedded boards or control modules that require a 15V rail?
It can be used where the source is within 36-75VAC and the load requires constant voltage 15V output. The compact 25.4 × 25.4 × 10.2 mm size and 0.018 kg weight help in space-constrained assemblies. The 10W power rating and listed 333A output current define the model's published electrical spec.
Can the DKM10C-15 be used for analog or instrumentation sections in automation systems?
It is intended for designs that need a stable 15V constant voltage rail from a 36-75VAC input source. That can make it suitable for analog, interface, or instrumentation sections inside industrial and automation equipment, as long as the load fits within 10W. CE certification is also listed for the product.
Is the DKM10C-15 okay for outdoor installations or wide-temperature indoor equipment?
The operating temperature range is -40°C to +85°C, so it is specified for broad temperature conditions. No IP rating is provided in the specs, which means outdoor suitability is not established by the published data. It is better suited to protected enclosures or indoor equipment housings.
How does the DKM10C-15 compare with the other DKM10C models?
The DKM10C-05 is 10W with 5V output and 1A, the DKM10C-12 is 10W with 12V output and 416A, and the DKM10C-15 is 10W with 15V output and 333A. All belong to the same 10W series. The key differences are the output voltage and listed output current.
