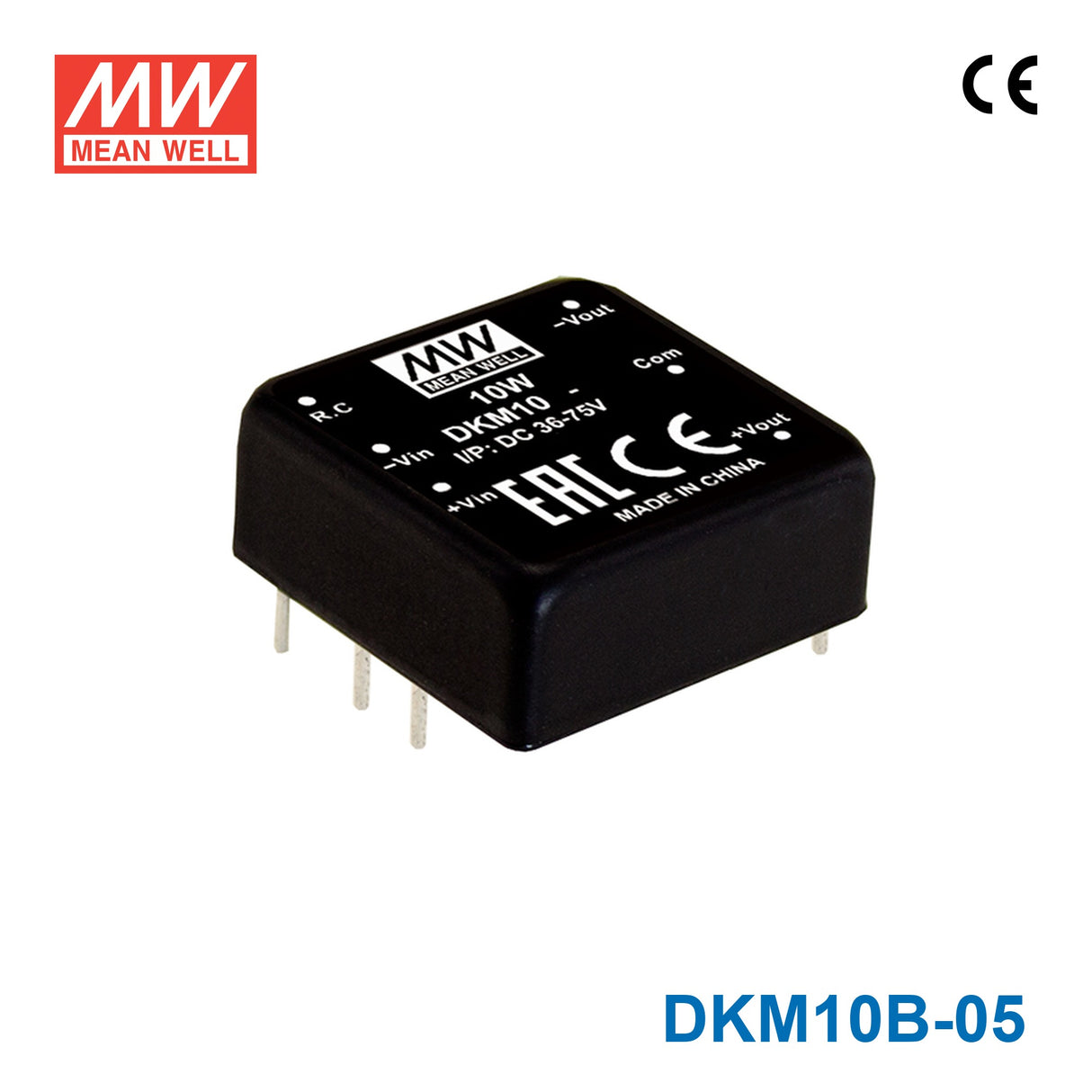

Mean Well DKM10B-05 DC-DC Converter - 10W - 18~36V in ±5V out
SKM10 and DKM10 series are 10W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 4.7~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Key Features
- ✓✓✓DIP 1"x1" package with industry standard pinout
- ✓✓✓2:1 wide input range
- ✓✓✓Operating temperature range -40 ~ +85℃
- ✓✓✓No minimum load required
- ✓✓✓Comply to EN55032 radiated Class A without additional components
- ✓✓✓High efficiency up to 90%
- ✓✓✓Protections: Short circuit (Continuous} / Overload / Over voltage / Input under voltage
- ✓✓✓1.5KVDC I/O isolation
- ✓✓✓Remote ON/OFF control and Triming output (±10%)
- ✓✓✓3 years warranty
-
BrandMean Well
-
SeriesDKM Series
-
Power Rating10 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the DKM10B-05 on a 24V system that needs regulated 5V output?
Yes, the 18-36V input range matches 24V-class systems and the converter provides 5V constant-voltage output. It is suitable for low-power 5V electronics up to 10W and 1A.
Is the DKM10B-05 a good fit for industrial sensor or logic boards on a 24V bus?
It is designed for exactly that kind of voltage conversion, taking 18-36V input and delivering 5V output. The 10W rating makes it a fit for compact sensor, logic, and control boards rather than heavier 5V loads.
Can this model power embedded communications electronics from a 24V control cabinet supply?
Yes, it can support 5V communications or interface electronics when the cabinet supply is within 18-36V. Its compact 25.4 × 25.4 × 10.2 mm size is also useful where board area is limited.
What is the difference between DKM10B-05, DKM10B-12, and DKM10B-15?
All three listed DKM10B models are 10W converters with an 18-36V input range. The DKM10B-05 is 5V at 1A, the DKM10B-12 is 12V at 416A, and the DKM10B-15 is 15V at 333A.
Is the DKM10B-05 suitable for outdoor or extreme-temperature equipment?
The published operating range is -40°C to +85°C, so it supports wide temperature conditions inside protected equipment. No IP rating is listed, so the provided specs do not indicate direct outdoor exposure or water-resistant use.
