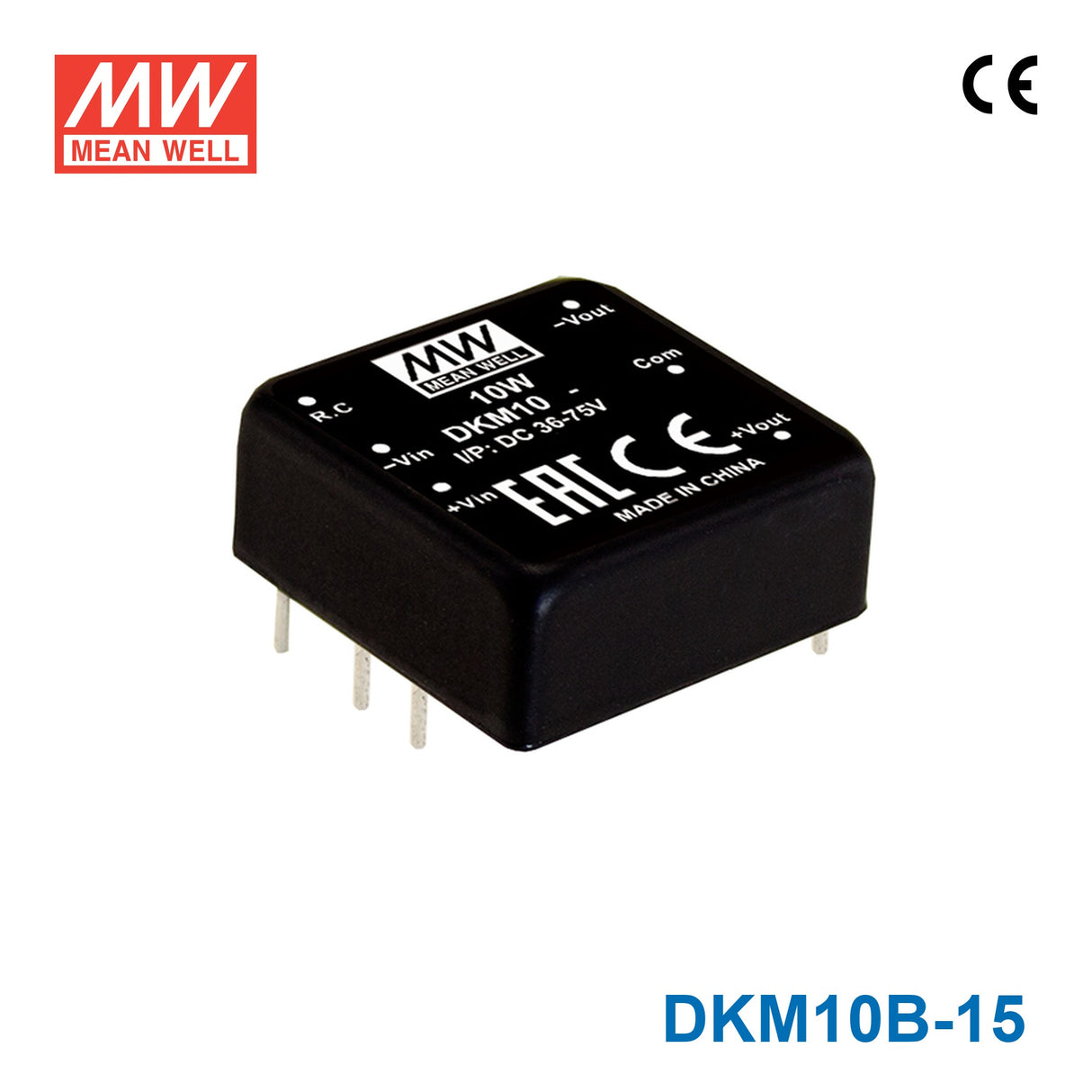

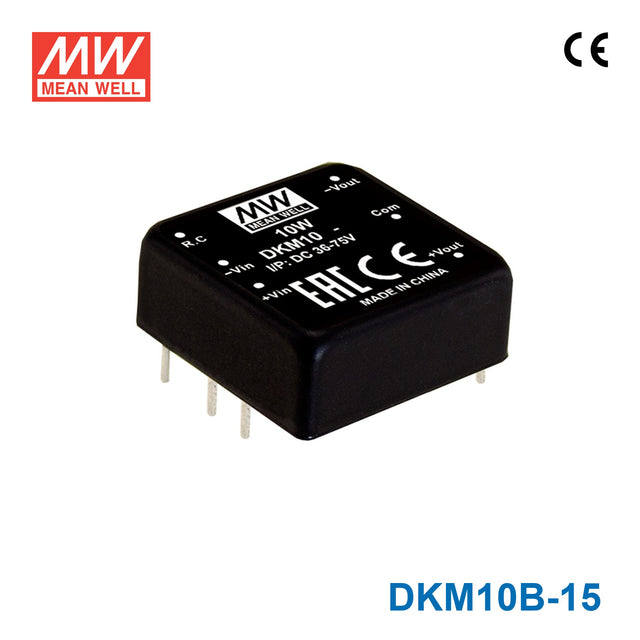

Mean Well DKM10B-15 DC-DC Converter - 10W - 18~36V in ±15V out
SKM10 and DKM10 series are 10W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 4.7~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Key Features
- ✓✓✓DIP 1"x1" package with industry standard pinout
- ✓✓✓2:1 wide input range
- ✓✓✓Operating temperature range -40 ~ +85℃
- ✓✓✓No minimum load required
- ✓✓✓Comply to EN55032 radiated Class A without additional components
- ✓✓✓High efficiency up to 90%
- ✓✓✓Protections: Short circuit (Continuous} / Overload / Over voltage / Input under voltage
- ✓✓✓1.5KVDC I/O isolation
- ✓✓✓Remote ON/OFF control and Triming output (±10%)
- ✓✓✓3 years warranty
-
BrandMean Well
-
SeriesDKM Series
-
Power Rating10 Watt
-
Output Voltage15 Volt
-
Rated Current0.33 Ampere
-
Input Voltage18V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the DKM10B-15 in a 24V automation panel that needs 15V DC power?
Yes. The DKM10B-15 accepts 18-36VAC input and delivers constant voltage 15V output with a 10W rating. That makes it suitable for automation or industrial electronics that operate from that input range and need a compact converter.
Is this model suitable for embedded equipment that requires a 15V auxiliary rail?
It is intended for embedded or board-level designs that need constant voltage 15V output from an 18-36VAC source. The 25.4 × 25.4 × 10.2 mm size and 0.018 kg weight make it practical where space is limited. The 10W rating should be matched to the load requirement.
Can the DKM10B-15 be used in industrial instrumentation that runs on a 15V supply?
It can be used where the equipment needs a stable 15V constant voltage output and the source is within 18-36VAC. That aligns with many industrial instrumentation, signal interface, and control subsystems that use a dedicated auxiliary rail. The CE certification may also matter for equipment compliance planning.
Will the DKM10B-15 handle harsh indoor temperature conditions?
The listed operating temperature range is -40°C to +85°C, which supports demanding indoor equipment environments. No IP rating is stated, so the specs do not support calling it outdoor-rated. It is best considered for protected installations where environmental exposure is controlled.
What is the difference between the DKM10B-15 and the other DKM10B versions?
The DKM10B-05 is rated at 10W with 5V output and 1A, the DKM10B-12 is 10W with 12V output and 416A, and the DKM10B-15 is 10W with 15V output and 333A. All are in the same 10W series. The practical distinction is the output voltage and listed output current.
