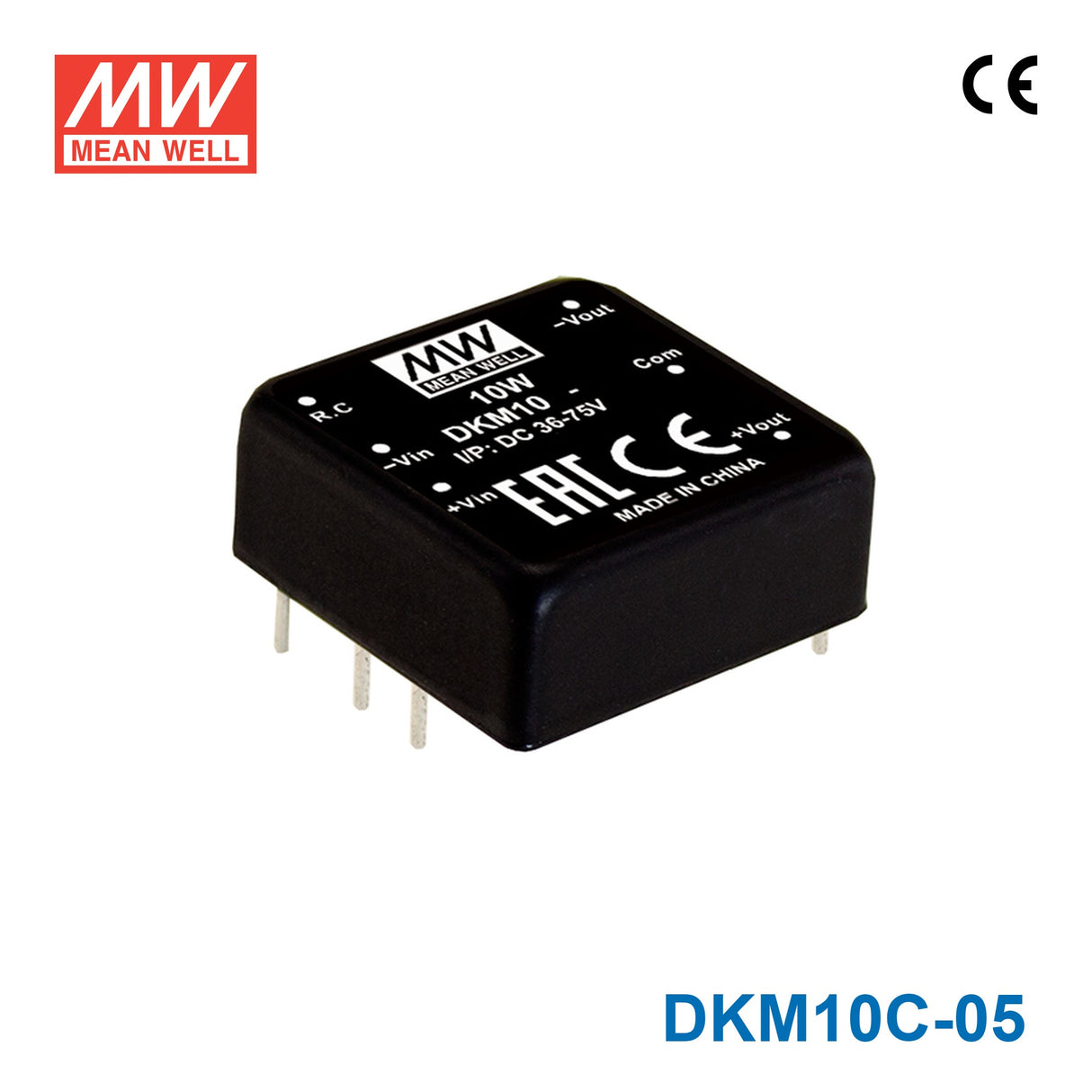

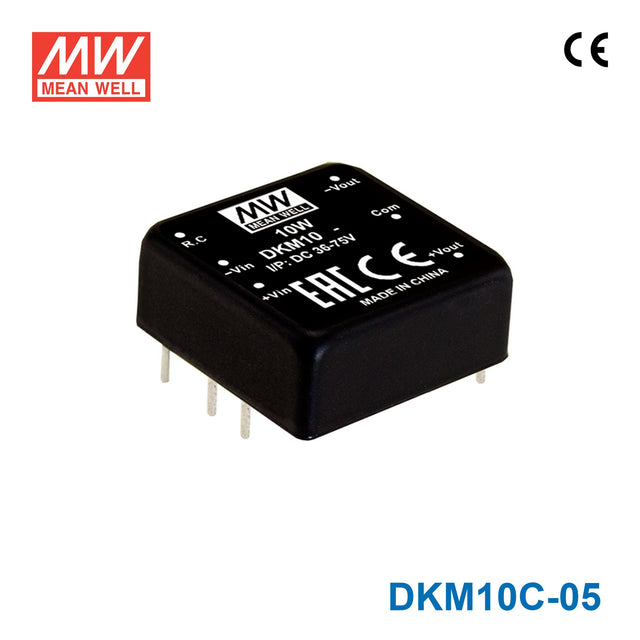

Mean Well DKM10C-05 DC-DC Converter - 10W - 36~75V in ±5V out
SKM10 and DKM10 series are 10W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 4.7~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Key Features
- ✓✓✓DIP 1"x1" package with industry standard pinout
- ✓✓✓2:1 wide input range
- ✓✓✓Operating temperature range -40 ~ +85℃
- ✓✓✓No minimum load required
- ✓✓✓Comply to EN55032 radiated Class A without additional components
- ✓✓✓High efficiency up to 90%
- ✓✓✓Protections: Short circuit (Continuous} / Overload / Over voltage / Input under voltage
- ✓✓✓1.5KVDC I/O isolation
- ✓✓✓Remote ON/OFF control and Triming output (±10%)
- ✓✓✓3 years warranty
-
BrandMean Well
-
SeriesDKM Series
-
Power Rating10 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage36V~75V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the DKM10C-05 in telecom or industrial systems with a higher input bus and a 5V load?
Yes. The DKM10C-05 accepts 36-75VAC input and provides constant voltage 5V output at 10W. That makes it suitable for industrial, embedded, or communications equipment that operates from that wider input range and needs a regulated 5V rail.
Is this converter a fit for embedded controllers or logic boards that need 5V power?
It can be a fit when the source is within 36-75VAC and the load needs constant voltage 5V output. The 1A output current listing and 10W power rating define the electrical envelope. Its 25.4 × 25.4 × 10.2 mm footprint also suits compact board-level designs.
Can the DKM10C-05 be used for industrial sensors or low-power automation electronics?
It is appropriate for low-power industrial or automation electronics that require a steady 5V rail and operate from a 36-75VAC input source. The converter is rated for 10W and uses constant voltage operation. That makes it relevant for compact auxiliary power sections in control hardware.
Is the DKM10C-05 suitable for outdoor equipment or unsealed environments?
The operating temperature range is -40°C to +85°C, so the temperature spec is broad. However, no IP rating is listed, so the published specs do not establish outdoor suitability. It should be treated as a component for protected enclosures unless additional enclosure protection is provided elsewhere.
How does the DKM10C-05 compare with the other DKM10C models?
In the DKM10C family, the DKM10C-05 is 10W with 5V output and 1A, the DKM10C-12 is 10W with 12V output and 416A, and the DKM10C-15 is 10W with 15V output and 333A. All share the same 10W series format. The main differences are the output voltage and listed output current.
