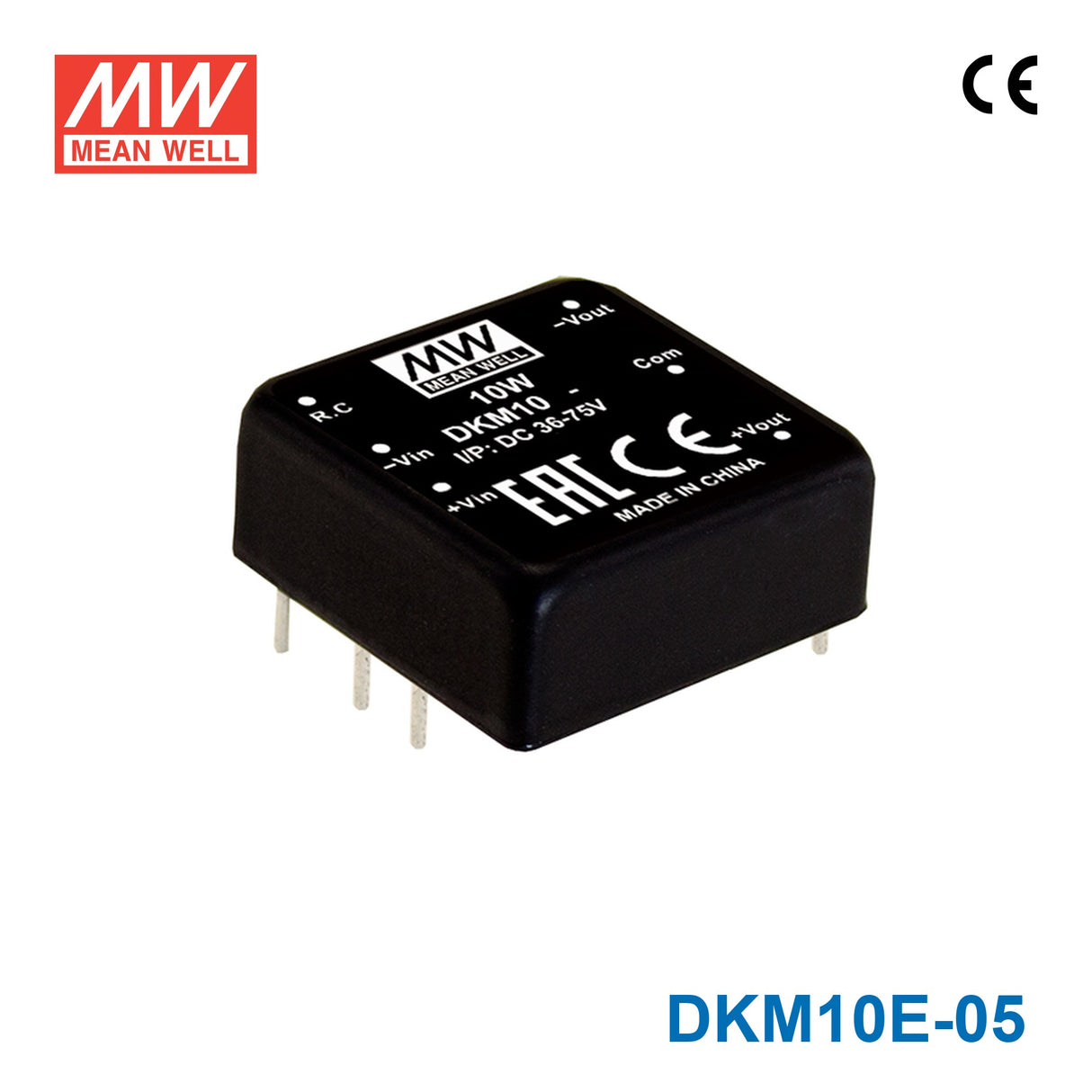

Mean Well DKM10E-05 DC-DC Converter - 10W - 4.7~9V in ±5V out
SKM10 and DKM10 series are 10W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The models account for different input voltage 4.7~9V, 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.
Key Features
- ✓✓✓DIP 1"x1" package with industry standard pinout
- ✓✓✓2:1 wide input range
- ✓✓✓Operating temperature range -40 ~ +85℃
- ✓✓✓No minimum load required
- ✓✓✓Comply to EN55032 radiated Class A without additional components
- ✓✓✓High efficiency up to 90%
- ✓✓✓Protections: Short circuit (Continuous} / Overload / Over voltage / Input under voltage
- ✓✓✓1.5KVDC I/O isolation
- ✓✓✓Remote ON/OFF control and Triming output (±10%)
- ✓✓✓3 years warranty
-
BrandMean Well
-
SeriesDKM Series
-
Power Rating10 Watt
-
Output Voltage5 Volt
-
Rated Current1 Ampere
-
Input Voltage4.7V~9V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
Can I use the DKM10E-05 in a compact embedded control board that needs 5V power?
It can fit compact embedded or control assemblies that need a constant 5V output, as long as the load stays within its 10W rating and 1A output current. Its 25.4 × 25.4 × 10.2 mm size also suits space-constrained electronics.
Is the DKM10E-05 suitable for powering 5V industrial monitoring or interface circuits from a low-voltage AC source?
This model is intended for constant-voltage 5V output from a 4-9VAC input range. That makes it a fit for low-power monitoring, interface, or embedded industrial circuits that need 5V and stay within 10W.
Can the DKM10E-05 be used for low-power automation electronics that run on 5V?
It is a reasonable choice for low-power automation electronics that require a regulated 5V output rather than a higher-voltage rail. The key limits are its 10W power rating and 1A output current.
Is the DKM10E-05 OK for outdoor or harsh-temperature use?
The operating temperature range is -40°C to +85°C, which supports use across a wide temperature range. However, no IP rating is listed, so the specs do not confirm suitability for outdoor exposure or wet environments.
How does the DKM10E-05 compare with the other DKM10E models?
Within the DKM10E series, all listed models are 10W units with the same 25.4 × 25.4 × 10.2 mm dimensions, 0.018 kg weight, -40°C to +85°C operating range, CE certification, and 3-year warranty. The DKM10E-05 provides 5V at 1A, while the sibling DKM10E-12 is listed at 12V and 416A, and the DKM10E-15 is listed at 15V and 333A.
