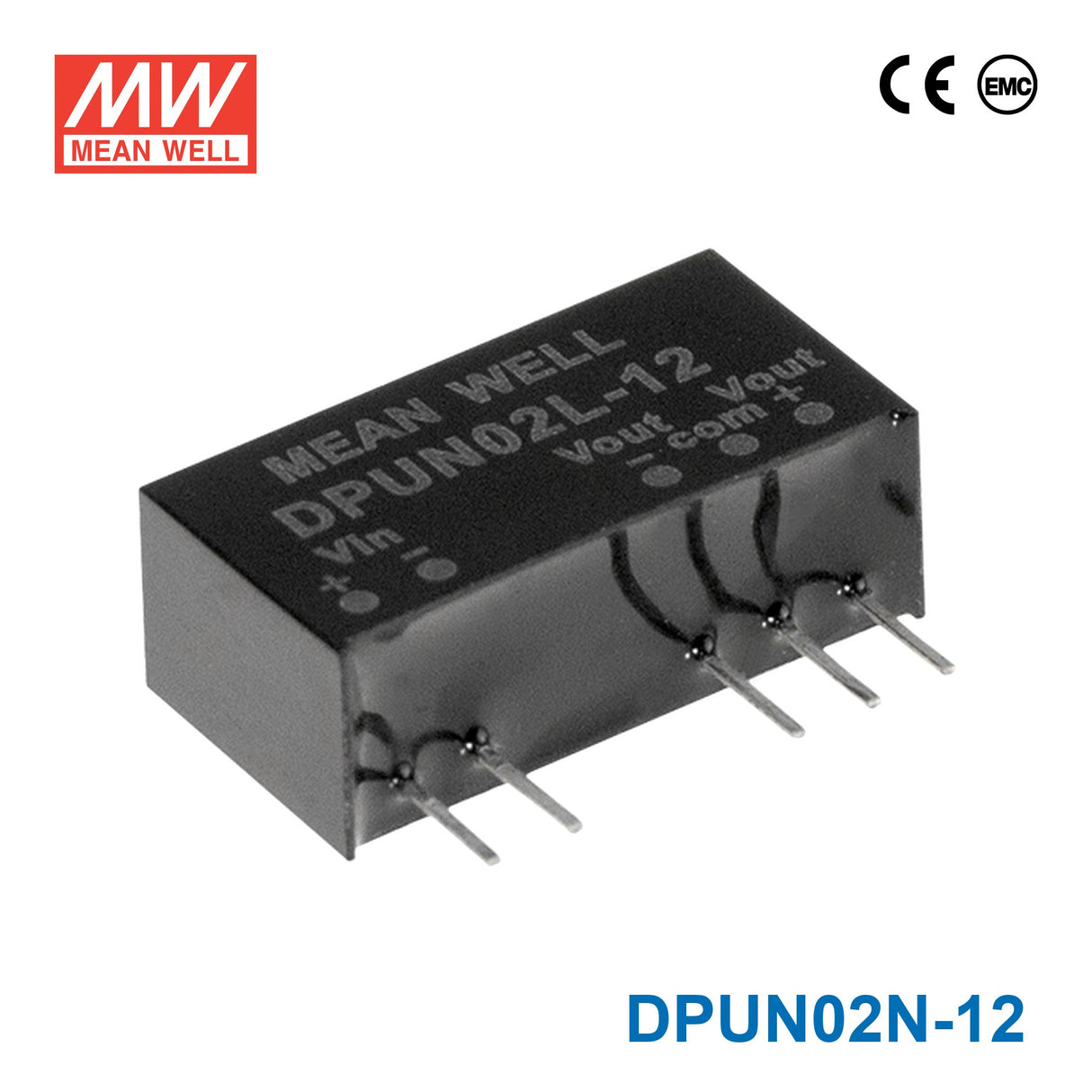

Mean Well DPUN02N-12 DC-DC Converter - 2W - 21.6~26.4V in ±12V out
The DPUN02N is a 2W Mean Well power converter (input range: 4.5~5.5Vdc).
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDPUN Series
-
Power Rating2 Watt
-
Output Voltage12 Volt
-
Rated Current0.08 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~105°C
-
Warranty3 Year
-
Length0.77 in
-
Width0.4 in
-
Height0.28 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the DPUN02N-12 in 24V automation equipment to generate low-power ±12V rails?
Yes, it is intended for low-power conversion from a 21-26VAC source to a constant-voltage ±12V output. With 2W total power and 0.08A output current, it is best suited to small analog, control, or interface sections.
Is the DPUN02N-12 a fit for measurement, signal conditioning, or embedded analog circuits?
It can be a fit when the system provides 21-26VAC input and the target circuit needs a low-power ±12V rail. The 2W rating and 0.08A output current make it appropriate for lighter embedded or instrumentation functions rather than higher-current loads.
Can this model be used in compact industrial electronics where board space is limited?
Yes, its 19.6 × 10.2 × 7.2 mm size and 0.0027 kg weight support compact board-level integration. The electrical capability remains 2W with 0.08A output current, so it should be matched to low-power ±12V circuits only.
What are the differences between the DPUN02N-12 and its series siblings?
The DPUN02N-05, DPUN02N-12, and DPUN02N-15 all share a 21-26VAC input range, 2W power, 19.6 × 10.2 × 7.2 mm dimensions, 0.0027 kg weight, and -40°C to +105°C operating range. Their outputs differ as 5V at 200A, 12V at 0.08A, and 15V at 0.07A respectively.
Can the DPUN02N-12 be used in outdoor or severe-temperature environments?
The converter is specified for operation from -40°C to +105°C, so its temperature range is broad. No IP rating is listed, so the product page does not define it for direct outdoor exposure and enclosure protection should determine environmental suitability.
