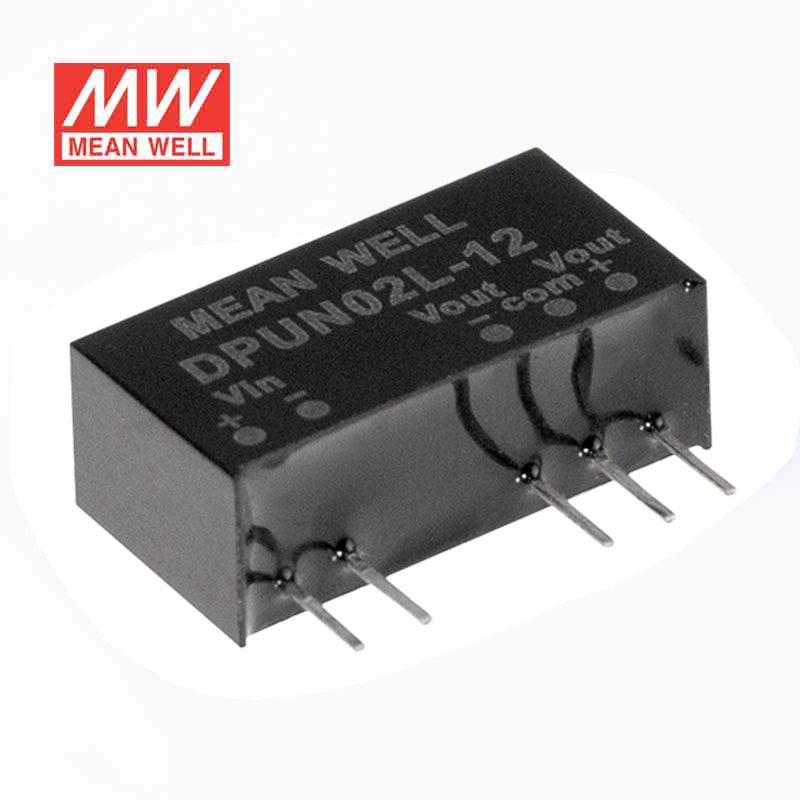

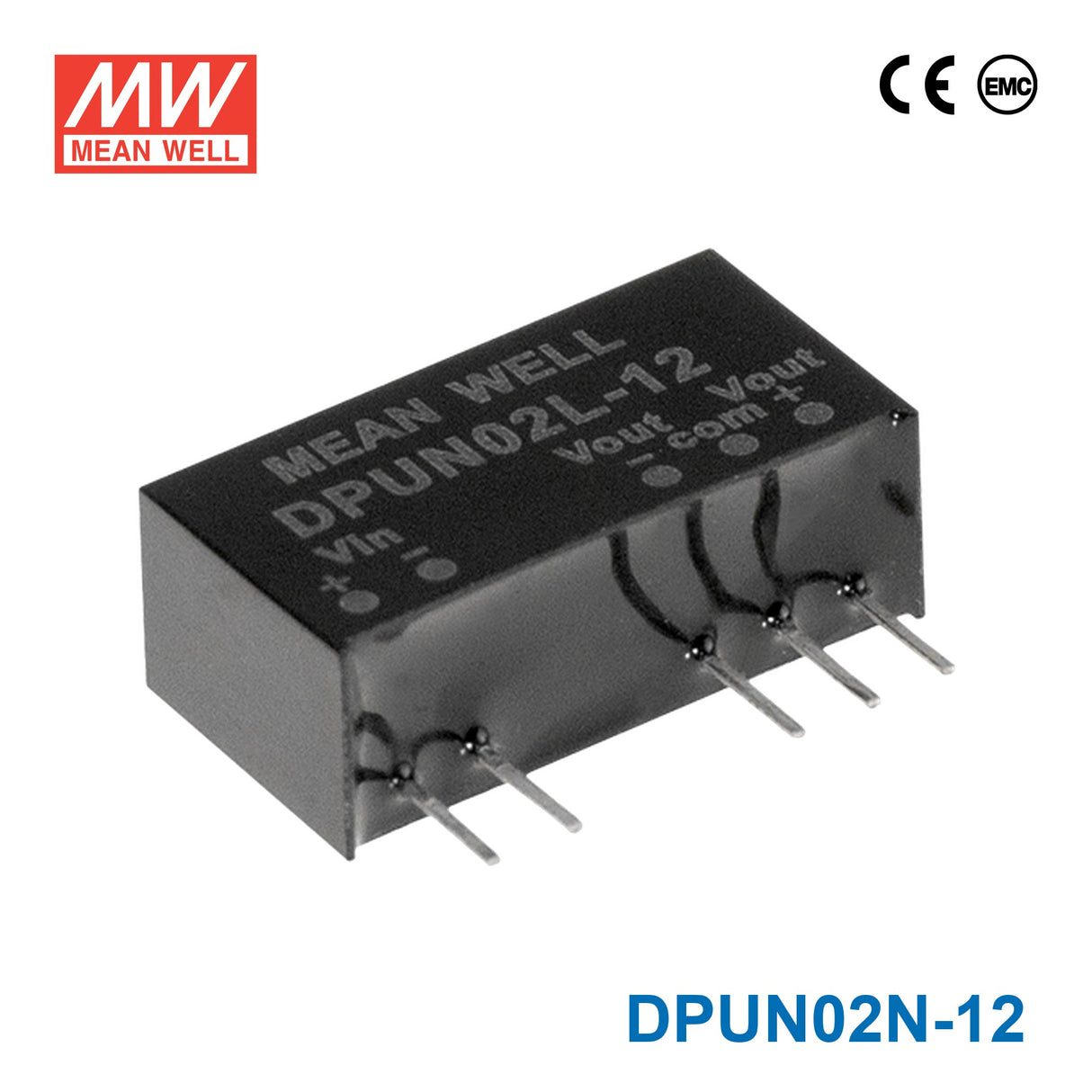

Mean Well DPUN02N-12 DC-DC Converter - 2W - 21.6~26.4V in ±12V out 83mA

Name: Mean Well DPUN02N-12 DC-DC Converter - 2W - 21.6~26.4V in ±12V out 83mA
Brand: Mean Well
SKU: DPUN02N-12
Price: 4.67 USD
Availability: InStock

SKU DPUN02N-12

$4.67 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

DPUN02N-12 is the ±12V output model of this series: rated power 2W, typical efficiency 86%.

SPUN02 and DPUN02 series are 2W isolated and unregulated module type DC-DC converter with SIP7 package. It features international standard pins, a high efficiency up to 87%, wide working temperature range -40~+105℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, short circuit protection, etc. The models account for different input voltage 5V/12V/ 24V±10%, and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP7 package with industry standard pinout
Operating temperature range -40 ~ +105℃
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 87%
Protection: Short circuit(continuous)/Over load
3KVDC I/O isolation
Low cost
3 years warranty

Specifications

DPUN02N-12Specifications from the official datasheet (2024-03-11 edition)

INPUT

INPUT VOLTAGE (RANGE): 24V (21.6 ~ 26.4V)
INPUT CURRENT NO LOAD: 10mA
INPUT CURRENT FULL LOAD: 96mA
VOLTAGE RANGE: 21.6 ~ 26.4Vdc
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc ; 12Vin models : 18Vdc ; 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 5Vin models: 1A Slow-Blow Type, 12Vin models: 500mA Slow-Blow Type, 24Vin models: 250mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: ±12V
OUTPUT CURRENT: ±0 ~ 83mA
EFFICIENCY (TYP.): 86%
CAPACITOR LOAD (MAX.)^{* For each output}: *100μF
VOLTAGE ACCURACY: ±3.0% max.
RATED POWER: 2W
RIPPLE & NOISE^Note.2: 100mVp-p(150mV for SPUN02L-05/12)
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: 10%
SWITCHING FREQUENCY (Typ.): 60KHz

PROTECTION

SHORT CIRCUIT: Protection type: Continuous, automatic recovery
OVERLOAD: Protection type : Recovers automatically after fault condition is removed

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +105℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 18pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Burest	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 3.3Mhrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 19.6*7.2*10.2mm (0.77*0.28*0.40 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 2.7g ; 15pcs/per tube, 2205pcs/147 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 20% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DPUN02N-12 Pin Configuration — Pin Configuration

Typical applications

Downloads

Certificates3

Certificate (SPUN02-DPUN02-EMC)(EN) PDF Download

Certificate (SPUN02-DPUN02-CE-dec)(EN) PDF Download

Certificate (SPUN-DPUN02-UK-dec)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DPUN02N-12 in 24V automation equipment to generate low-power ±12V rails?

Yes, it is intended for low-power conversion from a 21-26VAC source to a constant-voltage ±12V output. With 2W total power and 0.08A output current, it is best suited to small analog, control, or interface sections.

Is the DPUN02N-12 a fit for measurement, signal conditioning, or embedded analog circuits?

It can be a fit when the system provides 21-26VAC input and the target circuit needs a low-power ±12V rail. The 2W rating and 0.08A output current make it appropriate for lighter embedded or instrumentation functions rather than higher-current loads.

Can this model be used in compact industrial electronics where board space is limited?

Yes, its 19.6 × 10.2 × 7.2 mm size and 0.0027 kg weight support compact board-level integration. The electrical capability remains 2W with 0.08A output current, so it should be matched to low-power ±12V circuits only.

What are the differences between the DPUN02N-12 and its series siblings?

The DPUN02N-05, DPUN02N-12, and DPUN02N-15 all share a 21-26VAC input range, 2W power, 19.6 × 10.2 × 7.2 mm dimensions, 0.0027 kg weight, and -40°C to +105°C operating range. Their outputs differ as 5V at 200A, 12V at 0.08A, and 15V at 0.07A respectively.

Can the DPUN02N-12 be used in outdoor or severe-temperature environments?

The converter is specified for operation from -40°C to +105°C, so its temperature range is broad. No IP rating is listed, so the product page does not define it for direct outdoor exposure and enclosure protection should determine environmental suitability.
