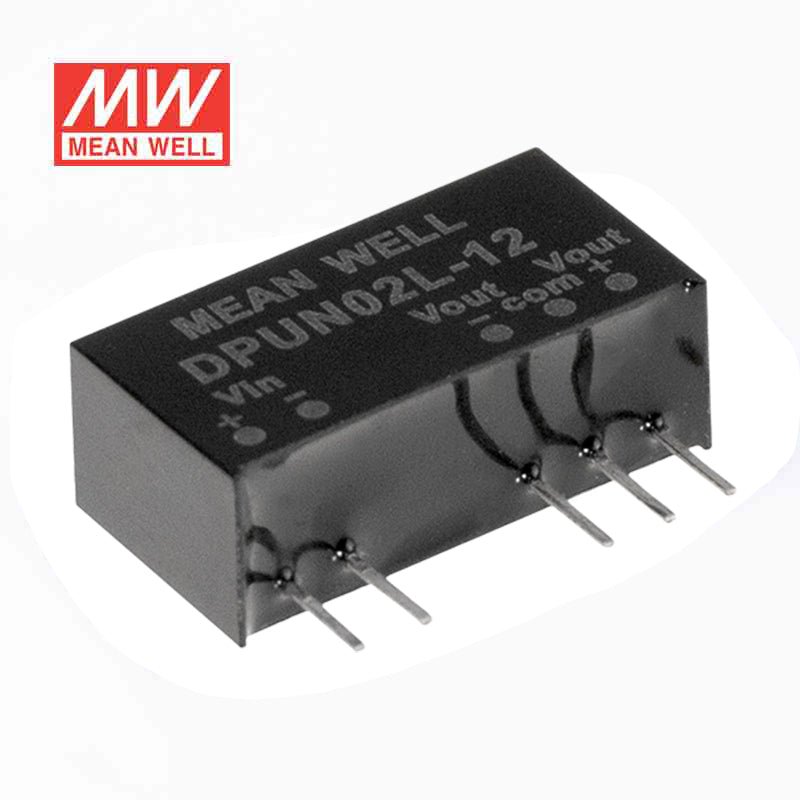

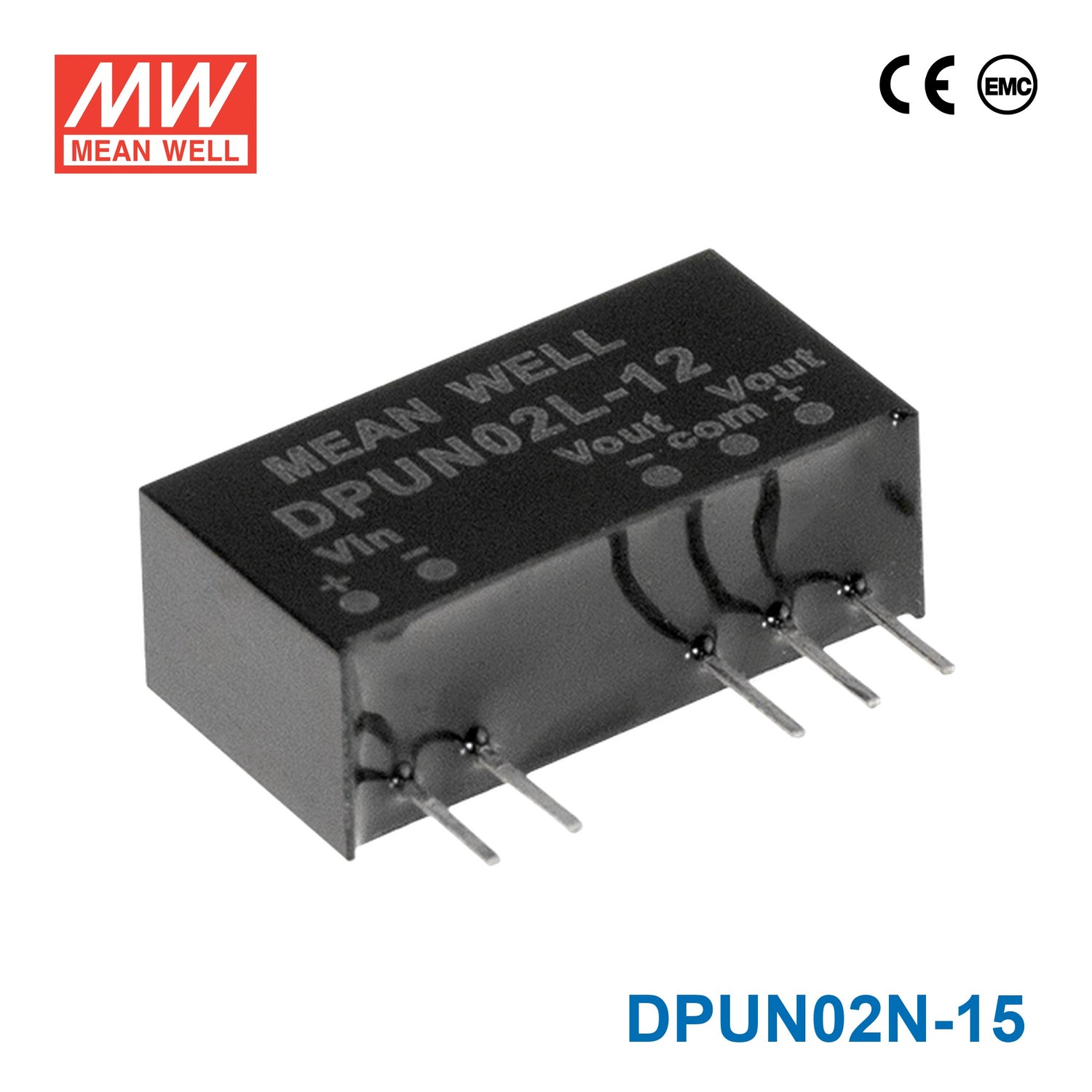

Mean Well DPUN02N-15 DC-DC Converter - 2W - 21.6~26.4V in ±15V out 67mA

Name: Mean Well DPUN02N-15 DC-DC Converter - 2W - 21.6~26.4V in ±15V out 67mA
Brand: Mean Well
SKU: DPUN02N-15
Price: 4.67 USD
Availability: InStock

SKU DPUN02N-15

$4.67 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

DPUN02N-15 is the ±15V output model of this series: rated power 2W, typical efficiency 86%.

SPUN02 and DPUN02 series are 2W isolated and unregulated module type DC-DC converter with SIP7 package. It features international standard pins, a high efficiency up to 87%, wide working temperature range -40~+105℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, short circuit protection, etc. The models account for different input voltage 5V/12V/ 24V±10%, and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SIP7 package with industry standard pinout
Operating temperature range -40 ~ +105℃
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 87%
Protection: Short circuit(continuous)/Over load
3KVDC I/O isolation
Low cost
3 years warranty

Specifications

DPUN02N-15Specifications from the official datasheet (2024-03-11 edition)

INPUT

INPUT VOLTAGE (RANGE): 24V (21.6 ~ 26.4V)
INPUT CURRENT NO LOAD: 10mA
INPUT CURRENT FULL LOAD: 95mA
VOLTAGE RANGE: 21.6 ~ 26.4Vdc
SURGE VOLTAGE (100ms max.): 5Vin models : 9Vdc ; 12Vin models : 18Vdc ; 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 5Vin models: 1A Slow-Blow Type, 12Vin models: 500mA Slow-Blow Type, 24Vin models: 250mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: ±15V
OUTPUT CURRENT: ±0 ~ 67mA
EFFICIENCY (TYP.): 86%
CAPACITOR LOAD (MAX.)^{* For each output}: *100μF
VOLTAGE ACCURACY: ±3.0% max.
RATED POWER: 2W
RIPPLE & NOISE^Note.2: 100mVp-p(150mV for SPUN02L-05/12)
LINE REGULATION^Note.3: 1.2% for 1% input variation
LOAD REGULATION^Note.4: 10%
SWITCHING FREQUENCY (Typ.): 60KHz

PROTECTION

SHORT CIRCUIT: Protection type: Continuous, automatic recovery
OVERLOAD: Protection type : Recovers automatically after fault condition is removed

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +105℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +105℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 18pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Burest	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 3.3Mhrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 19.6*7.2*10.2mm (0.77*0.28*0.40 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 2.7g ; 15pcs/per tube, 2205pcs/147 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 20% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

DPUN02N-15 Pin Configuration — Pin Configuration

Typical applications

Downloads

Certificates3

Certificate (SPUN02-DPUN02-EMC)(EN) PDF Download

Certificate (SPUN02-DPUN02-CE-dec)(EN) PDF Download

Certificate (SPUN-DPUN02-UK-dec)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DPUN02N-15 in a 24V industrial system that needs low-power ±15V rails?

Yes, it is designed for use with a 21.6~26.4VDC input and provides constant-voltage ±15V output. Because it is rated for 2W and ±67mA, it is intended for small analog, control, or interface circuitry rather than larger powered loads.

Is the DPUN02N-15 suitable for embedded analog or instrumentation circuits in automation equipment?

It can be suitable when the source side falls within 21.6~26.4VDC and the circuit only needs a low-power ±15V rail. The available output is 2W with ±67mA, which aligns better with compact instrumentation or signal-stage electronics than with heavier subsystems.

Can this converter be used for compact board-level bipolar 15V power in industrial electronics?

Yes, the 19.6 × 7.2 × 10.2 mm package supports compact board-level designs in industrial electronics. Its rating is limited to 2W and ±67mA, so it should be selected for low-power ±15V sections only.

How does the DPUN02N-15 differ from the other DPUN02N converters?

All three DPUN02N variants share a 21.6~26.4VDC input range, 2W power rating, 19.6 × 7.2 × 10.2 mm dimensions, 2.7g weight, and -40°C to +105°C operating range. The output options are ±5V at ±200mA for the DPUN02N-05, ±12V at ±83mA for the DPUN02N-12, and ±15V at ±67mA for the DPUN02N-15.

Is the DPUN02N-15 appropriate for outdoor or temperature-stressed applications?

Its published operating temperature range is -40°C to +105°C, so it is specified across a wide thermal span. No IP rating is provided, so the listing does not identify it as outdoor rated and any exposed use depends on the enclosure around the unit.
