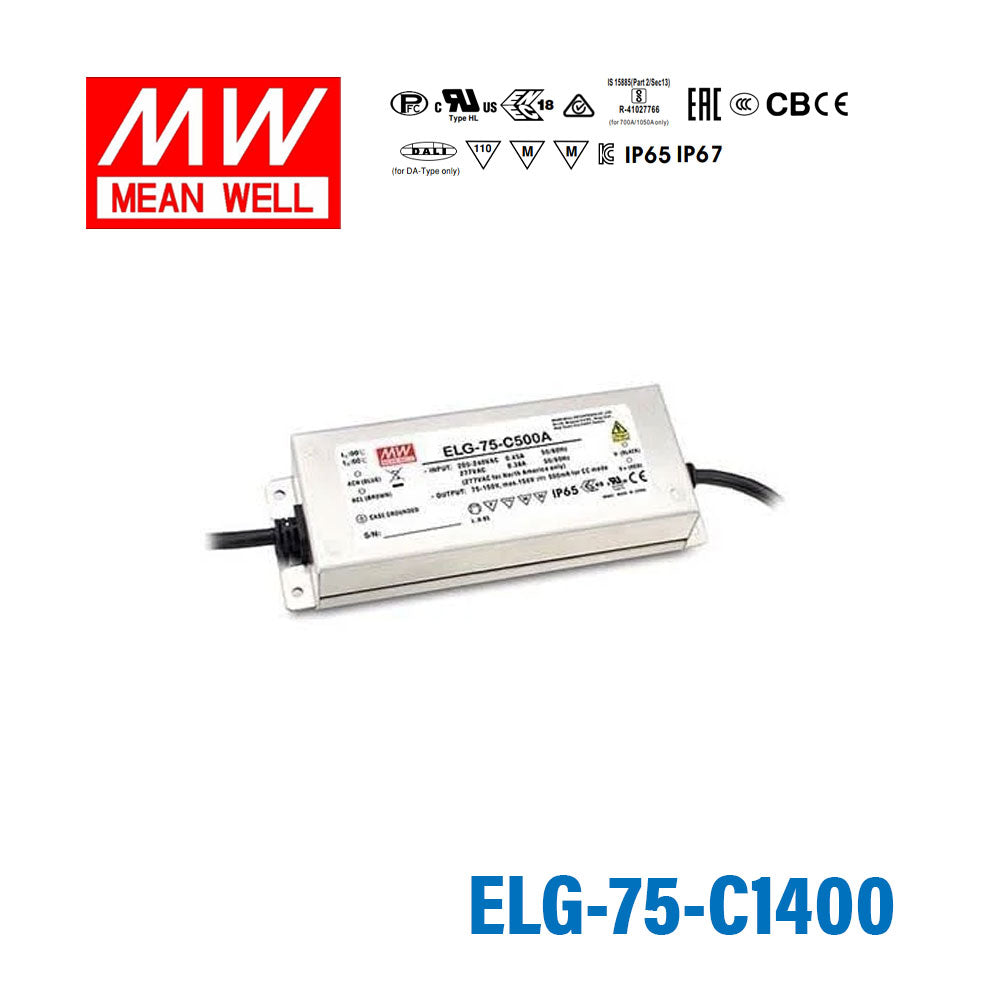

Mean Well ELG-75-C1400 Power Supply 75W 1400mA
The ELG-75 is a 75W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating75.6 Watt
-
Output Voltage61 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can the ELG-75-C1400 power LED downlights in outdoor applications exposed to rain?
Yes. The ELG-75-C1400 is rated IP67 waterproof, allowing it to tolerate temporary immersion and direct rain exposure. It is appropriate for outdoor LED downlights, wall-pack luminaires, and other fixtures mounted in fully exposed exterior locations.
Is the ELG-75-C1400 suitable for driving LED modules in commercial LED retrofit kits?
Yes. The ELG-75-C1400 delivers 1400mA constant current within a CC voltage range of 27–54V at 75.6W total power. This current level is well matched to commercial LED retrofit modules and high-bay LED arrays that operate at 1.4A drive current.
What LED loads are compatible with the ELG-75-C1400?
The ELG-75-C1400 operates in constant-current mode at 1400mA. Any LED string whose combined forward voltage falls within the 27–54V CC output range at that current level is compatible. The number of series LEDs depends on each LED's individual forward voltage.
Can the ELG-75-C1400 be used for LED street or area lighting in cold climates?
Yes. With a -40°C to +85°C operating temperature range and an IP67-rated metal enclosure, the ELG-75-C1400 functions reliably in sub-zero environments. The wide 100–305VAC input also accommodates the voltage tolerances common in municipal electrical infrastructure.
How does the ELG-75-C1400 differ from the ELG-75-C1050 in terms of output current and compatibility?
The ELG-75-C1400 outputs 1400mA with a CC voltage range of 27–54V and a maximum power of 75.6W. The ELG-75-C1050 outputs 1050mA with a CC voltage range of 35–71V and a maximum power of 74.55W. Both are constant-current drivers with IP67 ratings, but the 1400mA model drives higher-current LEDs or shorter series strings, while the 1050mA model suits longer series strings within a higher voltage window.
Is the ELG-75-C1400 certified for use in multiple international markets?
Yes. The ELG-75-C1400 holds c_bsi, CB, CCC, CE, EAC, ENEC, c_rcm, and UL certifications, covering North America (UL), the EU (CE, ENEC), Australia/New Zealand (c_rcm), China (CCC), and Russia/Eurasia (EAC). This multi-region certification set supports deployment in international LED lighting projects.
